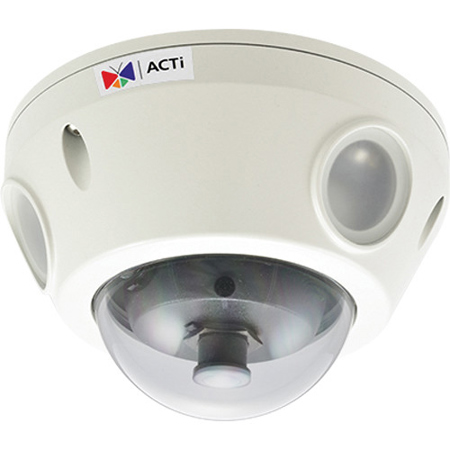

ACTi E926 10MP Day/Night Outdoor Mini Dome Camera with Fixed Lens
See all ACTi items

ACTi E926 10MP Day/Night Outdoor Mini Dome Camera with Fixed Lens

SKU: ACTE926

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E926 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels (H x V)

    3856 x 2764 (10.66 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0 lux at F1.8

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED (Adjustable IR Exposure Compensation) x 3 (850nm)

  • IR Working Distance

    15m (0 lux, 30 IRE, Gain 255, manual shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm/F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    101.4 deg.

  • Lens: Viewing Angle Adjustment

    Pan: +/-90 deg. ; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Resolution vs. Frame Rate

    7fps at 3648 x 2736; 7fps at 3648 x 2160; 7fps at 2592 x 1944; 7fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Line-in and mic-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions); Sound detection

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.04W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024); FCC (Part15 Subpart B Class B); IK10; IP68; NEMA 4X; EN50155; UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    4.5 x 2.8" / 114.3 x 71.12mm

  • Weight

    1.05lbs / 0.48kg

About ACTi E926

For advanced surveillance needs, consider the E926 Day/Night Outdoor Mini Dome Camera. This high-performance camera boasts a 10-megapixel resolution, delivering crystal-clear 4K and 1080p images. Its day and night functionality, complemented by an Adaptive IR LED, ensures optimal visibility regardless of lighting conditions.

The camera features a fixed lens with a focal length of f3.6mm and an aperture of F1.8, providing a super wide-angle view for comprehensive coverage. With a Basic Wide Dynamic Range (WDR) of 70 dB, it effectively balances light and dark areas in the same scene, capturing detailed images even in challenging light conditions.

The E926 camera supports a high frame rate of 30 frames per second at a resolution of 1920 x 1080, ensuring smooth video playback. It utilizes H.264 and MJPEG compression formats, optimizing storage and bandwidth without compromising video quality.

Designed for outdoor use, this mini dome camera is weatherproof with an IP68 rating, vandal-proof with an IK10 rating, and vibration-proof according to EN50155 standards. This makes it a robust and reliable choice for monitoring outdoor environments in various weather conditions and potential risk scenarios.

In addition, the camera supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables.

In summary, the E926 Day/Night Outdoor Mini Dome Camera with Adaptive IR LED, Basic WDR, Fixed Lens, 10MP, 1920x1080, 30fps, H.264, MJPEG, and PoE is a versatile and durable solution for your surveillance needs.

ACTi E926 Features

  • High-resolution 10MP camera with 4K and 1080p capabilities for clear, detailed images
  • Day & night functionality with Adaptive IR LED for optimal visibility in varying light conditions
  • Fixed lens with f3.6mm/F1.8 and Basic WDR for wide-angle view and balanced light capture
  • Supports 30fps at 1920x1080 resolution, ensuring smooth video playback
  • Utilizes H.264 and MJPEG compression formats for efficient storage and bandwidth use
  • Weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155), making it durable for outdoor use
  • Features Power over Ethernet (PoE) for simplified installation process

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear footage with this 10MP security camera, ensuring detailed surveillance.
  • Enjoy superior night vision with adaptive IR LEDs, providing a 15m range in complete darkness.
  • This outdoor camera is weatherproof (IP68) & vandal-proof (IK10), built to endure harsh conditions.
  • Easy setup and gang box mount make installing this mini dome camera a breeze for any location.
  • Get motion detection alerts directly to your device, enhancing your home security system setup.
  • Use the camera's wide 101.4° viewing angle to monitor a larger area, reducing blind spots.

What's in the box:

  • ACTi E926 Day/Night Outdoor Mini Dome Camera
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
