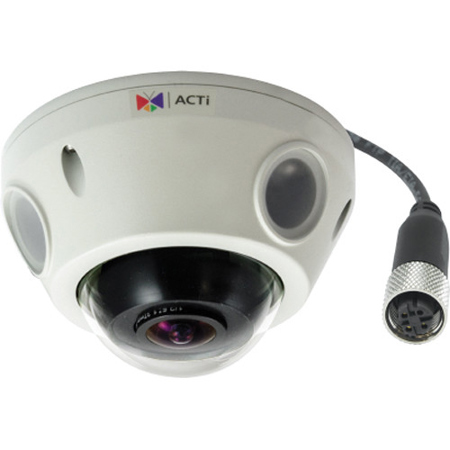

ACTi E929M 3MP Day/Night Outdoor Mini Fisheye Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE929M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E929M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels (H x V)

    2048 (H) x 1536 (V) (3.15 MP)

  • Horizontal Resolution

    1250 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg.K); B/W: 0 lux at F2.0

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    3x Adaptive IR LED (Adjustable IR Exposure Compensation), 850 nm

  • IR Working Distance

    15 m (0 lux, 30 IRE, Gain 255, Manual shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f1.19 mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview Area: 189 deg.; High Detail Area: 115.3 deg.

  • Lens: Viewing Angle Adjustment

    Rotation: +/-90 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Resolution vs. Frame Rate

    20 fps at 2048 x 1536; 20 fps at 1440 x 1080; 20 fps at 1280 x 960; 20 fps at 800 x 600; 15 fps at 640 x 480; 15 fps at 320 x 240

  • Video: Mode

    Fisheye view, 180 deg. /360 deg. Panorama, ePTZ

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Line-in and mic-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions); Sound detection

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 4.8 W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Wall, Pendant, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP68, NEMA 4X, EN50155, UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    4.5 x 2.8" / 11.43 x 7.11cm

  • Weight

    1.03lbs / 0.47kg

About ACTi E929M

Become the guardian of your outdoor spaces with the E929M 3MP Day&Night Outdoor Mini Fisheye Dome Camera, a sophisticated surveillance solution designed to keep a vigilant eye over your property. This state-of-the-art camera boasts a high-resolution 3-megapixel sensor capable of delivering crisp 1080p video quality, ensuring detailed footage at all times.

Equipped with an innovative Adaptive IR LED system, this camera provides exceptional night vision capabilities, automatically adjusting to varying light conditions to maintain optimal image clarity both day and night. The fixed lens, with its f1.19 mm / F2.0 aperture, offers a comprehensive 180/360-degree fisheye view, giving you a sweeping panoramic perspective without blind spots.

Experience unparalleled image quality even in the most challenging lighting scenarios, thanks to the camera's Superior Wide Dynamic Range (WDR) of 110 dB. This feature expertly balances the contrast between bright and dark areas, capturing clear images in high-contrast environments.

The E929M camera consistently delivers smooth video at 20 frames per second with a high resolution of 2048 x 1536, ensuring that every detail is captured with precision. It supports both H.264 and MJPEG compression formats, optimizing storage and bandwidth usage without compromising video quality.

Designed to withstand the rigors of outdoor use, this camera is weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155), making it an ideal choice for surveillance in a variety of outdoor environments. The robust construction, combined with an M12 connector, ensures a reliable and secure installation in any demanding setting.

Harness the power of advanced surveillance technology with the E929M 3MP Day&Night Outdoor Mini Fisheye Dome Camera, and rest assured that your property is monitored with a high-tech, sophisticated security solution.

ACTi E929M Features

  • High-resolution 3MP camera with 1080p video quality for detailed surveillance footage
  • Adaptive IR LED system for optimal day and night vision capabilities
  • Fixed lens with 180/360-degree fisheye view for a comprehensive panoramic perspective
  • Superior Wide Dynamic Range (WDR) of 110 dB for clear images in high-contrast environments
  • Supports H.264 and MJPEG compression formats for efficient storage and bandwidth usage
  • Weatherproof, vandal-proof, and vibration-proof design for reliable outdoor installation and use

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture every detail with this security camera's high-resolution 3MP video quality.
  • Enjoy peace of mind with reliable night vision, monitoring your property in low light.
  • The fisheye lens provides a wide 189° view, reducing the number of cameras needed.
  • Weatherproof IP68 rating ensures this outdoor camera withstands rain, snow, and dust.
  • Easy install with included kit; monitor your home remotely with mobile access.
  • Get motion detection alerts directly to your device, enhancing your home security.

What's in the box:

  • ACTi E929M 3MP Day&Night Outdoor Mini Fisheye Dome Camera
  • Screw Kit
  • Drill Template
  • Hexagon Screwdriver
  • Extra Desiccant Bag
  • Cosmetic Cover for Unused IR LED
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
