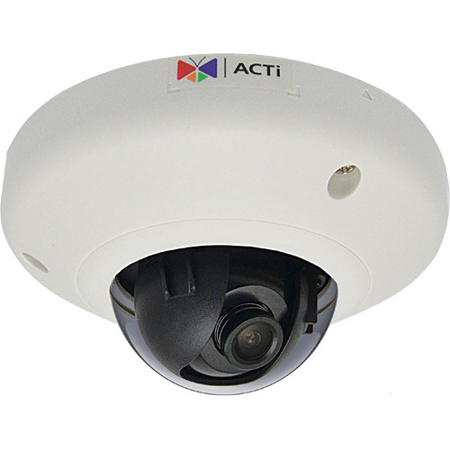

ACTi E97 Indoor IP Mini Dome Camera
See all ACTi items

ACTi E97 Indoor IP Mini Dome Camera with Basic WDR & Fixed Lens, 10MP, 1920x1080, 30fps, H.264, MJPEG, PoE

SKU: ACTE97

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E97 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm / F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview Area: 101.4 deg. ; High Detail Area: 61.9 deg.

  • Viewing Angle Adjustment

    Pan: +/-90 deg. ; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 1 (IEEE802.3af) / 3.84W

  • Environmental Casing

    Vandal resistant (IK08); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Starting Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B; EN 55024); FCC (Part15 Subpart B Class B); IK08

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available ; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    4.3 x 2.3" / 109.22 x 58.42mm

  • Weight

    0.46lbs / 0.21kg

About ACTi E97

For professional-grade surveillance that doesn't compromise on quality, the E97 Indoor IP Mini Dome Camera is a sophisticated choice for any indoor security setup. This state-of-the-art camera boasts a high-resolution 10-megapixel sensor capable of delivering crisp 4K and full HD 1080p video, ensuring that every detail is captured with precision.

Equipped with a fixed lens featuring an aperture of f3.6mm / F1.8, the camera provides a super wide-angle view, allowing for comprehensive coverage of expansive areas without the need for multiple cameras. The Basic Wide Dynamic Range (WDR) of 70 dB makes this camera advanced in handling a variety of lighting conditions, from bright highlights to dark shadows, ensuring that the footage is balanced and clear.

The camera operates at a smooth 30 frames per second at a 1920 x 1080 resolution, delivering seamless video playback that can capture fast-moving objects with ease. This innovative technology ensures that you won't miss a moment of crucial surveillance footage.

Furthermore, the E97 Indoor IP Mini Dome Camera is designed with durability in mind. Its vandal-resistant construction meets the IK08 standard, providing peace of mind that your surveillance equipment is safeguarded against potential tampering or damage.

With support for both H.264 and MJPEG compression formats, the camera efficiently manages bandwidth and storage without sacrificing video quality. Additionally, the Power over Ethernet (PoE) capability simplifies installation, allowing for both power and data transmission over a single network cable, which enhances the camera's sophisticated and advanced design.

Whether monitoring a retail space, office, or any other indoor environment, the E97 Indoor IP Mini Dome Camera with Basic WDR & Fixed Lens is an innovative solution that offers high-quality, advanced surveillance with minimal installation complexity.

ACTi E97 Features

  • High-resolution 10-megapixel sensor for crisp 4K and full HD 1080p video
  • Fixed lens with f3.6mm / F1.8 aperture for a super wide-angle view
  • Basic Wide Dynamic Range (WDR) of 70 dB for balanced footage in various lighting conditions
  • Smooth 30 frames per second at 1920 x 1080 resolution for seamless video playback
  • Vandal-resistant construction meeting the IK08 standard for enhanced durability
  • Supports H.264 and MJPEG compression formats for efficient bandwidth and storage management
  • Power over Ethernet (PoE) capability for simplified installation and management

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear details with this 10MP indoor security camera, perfect for home or business.
  • Enjoy smooth video at 30fps in 1920x1080 resolution; monitor your space with this IP camera.
  • Use the wide angle lens (101.4 degrees) on this mini dome camera to oversee large areas easily.
  • Get remote access to live video on your devices, ensuring peace of mind wherever you are.
  • Benefit from motion detection; this security system sends alerts upon detecting movement.
  • This vandal-resistant (IK08) network camera is designed to withstand tampering for added security.

What's in the box:

  • ACTi E97 Indoor IP Mini Dome Camera
  • Screw Kit
  • Drill Template
  • Hexagon Screwdriver
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
