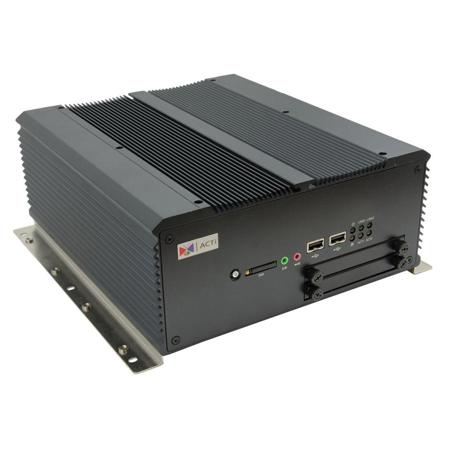

ACTi MNR-310 32-Channel 2-Bay Transportation Standalone NVR

1 local, 3 remote

32

16 Channels

H.264, MPEG-4, MJPEG

1920 x1200

Local: 1, 4, Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 32

An interface to define display layouts and the pre-set cameras within layout in the public or private view

Automatic switch between different views or devices

Contains the list of pre-defined views for quick launch

Zoom in/out digitally by mouse scroll wheel or by zoom control buttons

Drag and drop video source from camera tree into display layout; display camera status on the tree

Instant recording upon mouse click / Instant snapshot upon mouse click or hot key

Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full

Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time

Live view of stream 1 or stream 2 of dual stream devices

Instant playback in live view window

Area maps with camera icons, small live view windows; hyperlinked

Manual switch and auto tour modes selectable

E-Map image upload; camera positioning; vision angle and pointed direction of camera; view positioning; source positioning

Mouse PTZ mode to control e-Map video streams

Pan, tilt and zoom controls; speed control; both buttons and mouse controls

Create preset points; create auto tours between preset points

32

USB based joystick supported

Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

Maximum total bitrate 192 Mbps

Record video with user defined schedule

Record video when the alarm event is triggered, including the pre-event buffered video clip

Different recording frame rate settings for non-event and triggered event

nstant recording upon mouse click

Recording of stream 1 or stream 2 of dual stream devices

Max 960 fps total; Max 30 fps per camera

Serial ATA

32GB SATA DOM

2

1T x 2 = 2TB

Software RAID 0, 1

eSATA, iSCSi, USB mass storage (USB 2.0)

Search video recordings by time, channel or event, and the results are listed as clickable thumbnails for full-size view and snapshot download

Search alarm triggered video recordings

Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop

Up to 4 channels for local display; up to 32 channels for remote client

Instant snapshot from playback upon mouse click

Zoom in/out digitally by PiP (Picture-in-Picture)

Crop a short video clip from long recording file and save it as an independent file

Export video clips in AVI or RAW format; text overlay supported

Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found

Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point

Manually activate external devices through digital output via live view monitor

Define the schedule of event manager

Smart search for recorded videos by Motion Detection and Tamper

Unlimited number of users, Active Directory, Customizable permissions for user groups

Win 7 Std. Embedded

Multi-language support

User interface program (Workstation) with live view, PTZ, playback, e-Map, event management, setup

Microsoft Internet Explorer 8.0, 9.0, 10.0 and 11.0 with live view, PTZ, playback, event management, setup

Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback Supported devices: iPhone, iPad, iTouch and Android device

1-16 channels: Intel Core 2 Quad 2.4GHz, 4GB RAM
17-32 channels: Intel Core i7-920 2.67 GHz, 4GB RAM

Intel Processor

2GB

-20 deg. C - 60 deg. C (-4 deg. F - 140 deg. F)

10% - 90% RH (non-condensing)

110V-220V AC / 9V-36V DC

CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), e-Mark (e13), MIL-STD-810F, UL (for optional power adapter)

4 ( 2 Front Ports, 2 Rear Ports)

2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector

Mic-in x 1; Line-out x 1

1

2

VGA x 1; HDMI x 1

RS232/422/485 with isolated 3kV x 1

RS232 x 1

1

Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software

Support ONVIF compliant devices

9.25 x 3.97 x 10.55" / 234.95 x 100.84 x 267.97mm

5.25kg / 11.57lbs (without HDD)
