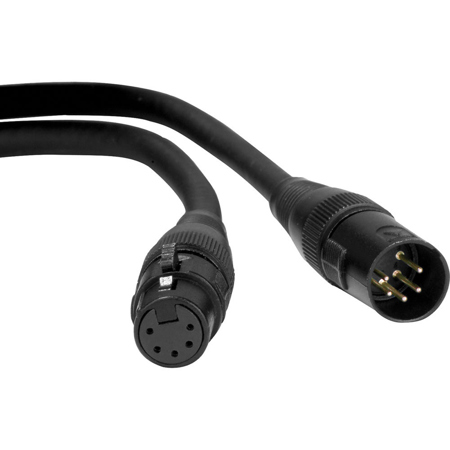

American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable

SKU: ADJ5PD3 MFR: AC5PDMX3
$9.99
Earn VIP Reward Points

Key Features

  • Ensure seamless DMX lighting control with this reliable 3-foot XLR DMX cable.
  • Get superior signal transmission for your DJ lighting setup with tinned copper wiring.
  • This Accu-Cable 5-Pin XLR DMX cable is perfect for connecting lighting effects units.
  • Enjoy durable performance with a robust PVC jacket, ideal for stage and studio use.
  • Achieve optimal connectivity for error-free lighting shows using quality DMX cables.
  • Experience peace of mind with this shielded DMX cable, reducing interference for clean sound.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable used for?

This cable is used to connect a male XLR connector to a female XLR connector, making it versatile for applications such as connecting microphones or other audio devices with XLR outputs to mixing consoles or other audio equipment with XLR inputs.

What makes the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable durable?

The cable features a no-memory rugged design with a PVC jacket to prevent kinking, and it's built with 22 AWG stranded tinned copper conductors, polyethylene insulation, a polyethylene inner jacket, and a tinned copper braid shield for enhanced durability and protection against interference.

Who is the manufacturer of the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable?

The cable is manufactured by the reputable American DJ brand, known for their high-quality audio and video equipment.

What is the construction of the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable?

The cable is constructed with 22 AWG stranded tinned copper conductors, polyethylene insulation, a twisted pair design, a polyethylene inner jacket, Duofoil for 100% coverage, and a tinned copper braid shield that provides 85% coverage.

Is the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable versatile?

Yes, this cable is versatile and can be used in a variety of applications. It's designed to connect a male XLR connector to a female XLR connector, making it ideal for connecting microphones or other audio devices with XLR outputs to mixing consoles or other audio equipment with XLR inputs.

Reviews about this item

Review Summary

American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable Specifications

Electrical

Electrical

Jump to...
  • Wire Gauge

    22 AWG

  • Conductor Capacitance

    12.5 pF/ft at 1 kHz

  • Conductor DC Resistance

    24 Ohms/ft (Up to 1000'/304.80m)

  • Nominal Impedance

    110 Ohms

  • Attenuation

    0.6 dB @ 1 MHz

General

Jump to...
  • Connector 1

    5-Pin XLR Male

  • Connector 2

    5-Pin XLR Female

  • Number of Conductors

    4

  • Conductor Material

    Tinned Copper

  • Shielding

    85% Tinned Copper Braid

  • Jacket Type

    Polyvinyl Chloride (PVC)

  • Insulation Type

    Polyethylene

  • Outer Diameter

    0.09" (2.29mm)

  • Bend Radius

    3.5" (8.9cm)

  • Maximum Pull Tension

    22 lbs (10 kg)

  • Operating Temperature

    -22 to 167 Degree F (-30 to 75 Degree C)

  • Cable Length

    3' (0.91m)

  • UPC Code

    819730017727

Models
American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable
$9.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

American DJ Accu-Cable ECCOM-6 6' 16/3 AWG IEC AC Extension Cord, Black
$9.99

$11.95

Save:$1.96 (16%)

Special Order

Generally ships in 7-14 days, subject to availability

American DJ Accu-Cable 3-Pin XLR Male and Female DMX Connectors Set
$7.99

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCableCable
Component TypeDMX Interface-DMX Interface

About American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable

After extensive research and development, Adorama presents the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable, a product that stands out in the market for its durability, high-quality construction, and reliability. This versatile cable is designed by the reputable American DJ brand, known globally for their superior audio and video equipment.

The Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable is an essential tool for any live sound or recording setup. It is expertly crafted to connect a male XLR connector to a female XLR connector, making it an ideal choice for connecting microphones or other audio devices with XLR outputs to mixing consoles or other audio equipment with XLR inputs.

This affordable cable boasts a no-memory rugged design, ensuring it retains its shape and functionality even under the most demanding conditions. It features 22 AWG stranded (0.15 x 19) tinned copper conductors for optimal signal transmission, coupled with polyethylene insulation for enhanced durability.

The twisted pair design, polyethylene inner jacket, and Duofoil (100% coverage) work together to provide superior protection against interference, ensuring clear and uninterrupted sound. Additionally, the cable is equipped with a tinned copper braid shield that offers 85% coverage, further enhancing its resistance to interference.

To top it all off, the Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable is encased in a PVC jacket to prevent kinking, ensuring it remains in top condition for longer. This cable is not just a purchase, but an investment in quality and reliability for your audio and video needs.

American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable Features

  • 3', 5-pin DMX Cable
  • Used for linking lighting effects to control them in DMX or Primary/Secondary modes
  • No memory rugged cable
  • PVC jacket to prevent kinking

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Ensure seamless DMX lighting control with this reliable 3-foot XLR DMX cable.
  • Get superior signal transmission for your DJ lighting setup with tinned copper wiring.
  • This Accu-Cable 5-Pin XLR DMX cable is perfect for connecting lighting effects units.
  • Enjoy durable performance with a robust PVC jacket, ideal for stage and studio use.
  • Achieve optimal connectivity for error-free lighting shows using quality DMX cables.
  • Experience peace of mind with this shielded DMX cable, reducing interference for clean sound.

What's in the box:

  • American DJ Accu-Cable 3' 5-Pin XLR Male to Female DMX Cable
  • American DJ 1 Year Limited Warranty
