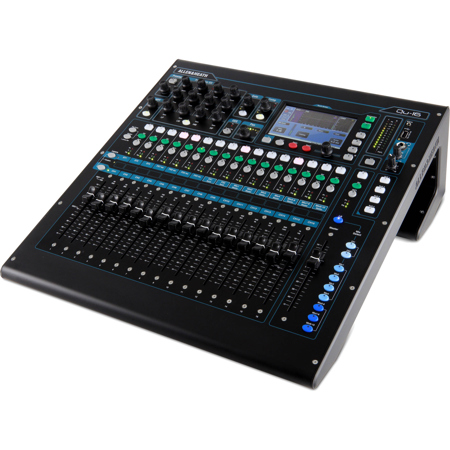

Allen & Heath QU-16 Rackmountable 16 Channel Digital Mixer, Chrome Edition
Allen & Heath QU-16 Video #1
Allen & Heath QU-16: Picture 1 thumbnail
Allen & Heath QU-16: Picture 2 thumbnail
Allen & Heath QU-16: Picture 3 thumbnail
Allen & Heath QU-16: Picture 4 thumbnail
Allen & Heath QU-16: Picture 5 thumbnail
Allen & Heath QU-16: Picture 6 thumbnail
See all Allen & Heath items
20% Off

Allen & Heath QU-16 Rackmountable 16 Channel Digital Touchscreen Mixer, 22 Input/12 Output, Chrome Edition

SKU: AHQU16C MFR: AH-QU-16C
(1)Ask a Question
$1,999.99
$2,499.99
Save: $500 (20%)
OR
$167/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Allen & Heath 16-channel digital mixer.
  • Enjoy versatile mixing with 16 XLR mic inputs and balanced TRS line inputs.
  • Get precise EQ control with 4-band parametric EQ for detailed sound shaping.
  • Seamlessly record and playback via the integrated USB interface for easy DAW integration.
  • Experience low noise performance for clean, professional audio recordings every time.
  • Built for durability, this rackmountable mixer withstands rigorous live sound environments.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-07-15T11:32:37

Rated 5 out of 5

New digital user

Easy to setup, loads of features and transition from analog to digital went well.

DAVE G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Allen & Heath QU-16 Specifications

  • Inputs

    16x 1/4" (6.35 mm) Balanced TRS Line Inputs
    16x XLR Mic Inputs
    2x Stereo Pair 1/4" (6.35 mm) Balanced TRS Inputs, Half-Normalled
    1x Stereo 1/8" (3.5 mm) Unbalanced Mini-Jack Input
    1x XLR Talkback Mic Input
    1x Ethernet dSNAKE Remote Source for Channels 1 to 16, ST1, ST2, ST3

  • Preamplifier

    Analog Gain: -5 to 60 dB, 1 dB Steps

  • Trim

    Stereo Line Inputs: +/- 24 dB

  • Input Sensitivity

    XLR: -60 to +5 dBu
    TRS: -50 to +15 dBu
    Stereo 1, 2, 3: Nominal 4 dBu / 0 dBu

  • Maximum Input Level

    XLR: 19 dBu
    TRS: 29 dBu
    Stereo 1, 2, 3: 22 dBu / 19 dBu

  • Input Impedance

    XLR: > 5 kOhms
    TRS: > 10 kOhms
    Stereo Line Inputs: > 7 kOhms

  • THD + N

    Unity Gain 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, Direct Out at 0 dBu, 1 kHz)
    Mid Gain 30 dB: 0.001%, -83 dBu (20 Hz to 20 kHz, Direct Out at 0 dBu, 1 kHz)

  • Outputs

    4x Mono XLR Mix Outputs
    3x Stereo Pair XLR Mix Outputs
    1x Stereo Pair XLR Main Outputs
    1x Stereo Pair 1/4" (6.35 mm) TRS Alt Mix Output
    1x Stereo Pair 1/4" (6.35 mm) TRS 2TRK Output
    1x XLR AES Digital 2-Channel, 48 kHz Sampling Rate Output (2.5 Vpp Balanced Terminated
    110 ohms)
    1x Ethernet dSNAKE Remote Outputs for Mix 1 to 10, LR

  • Output Impedance

    XLR / TRS: < 75 ohms

  • Nominal Output

    XLR / TRS: 4 dBu = 0 dB Meter Reading

  • Maximum Output Level

    XLR / TRS: 22 dBu

  • Residual Output Noise

    XLR / TRS: -91 dBu (Muted, 20 Hz to 20 kHz)

  • Dynamic Range

    112 dB

  • Frequency Response

    20 Hz to 20 kHz (+/- 0.5 dB)

  • Headroom

    18 dB

  • Operating Level

    Internal: 0 dBu

  • dBFS Alignment

    18 dBu = 0 dBFS (22 dBu at XLR Output)

  • Calibration

    Meter: 0 dB Meter= 18 dBFS (4 dBu at XLR Output)

  • Meter Peak Indication

    -3 dBFS (19 dBu at XLR Output), Multi-Point Sensing

  • Meter Signal Indication

    -48 dBFS (-26 dBu at XLR Output)

  • Meter

    Type: Fast (Peak) Response

  • Sampling Rate

    48 kHz +/- 100 PPM

  • Analog to Digital Converter

    24-bit Delta Sigma

  • Digital to Analog Converter

    24-bit Delta Sigma

  • Latency

    1.2 ms (Local XLR in to XLR Out)
    0.7 ms (Local XLR in to AES Out)

  • Operating Temperature Range

    32 deg. to 95 deg.F (0 deg. to 35 deg.C)

  • Power Supply

    100-240 VAC, 50/60 Hz, 82 W Maximum

  • USB Interface Resolution

    Send & Return: Send (24 channels), return (22 channels), WAV, 48 kHz / 24-bit

  • Device

    USB A

  • USB Interface: Record / Play Format

    Stereo Record: 2-Channel, WAV, 48 kHz / 24-bit, Patchable
    Stereo Playback: 2-Channel, WAV, 44.1 or 48 kHz, 16 or 24-bit to Stereo 3
    Multitrack Record: 18-Channel, WAV, 48 kHz / 24-bit, Channels 1 to 16 + Patchable Pair
    Multitrack Playback: 18-Channel, WAV, 48 kHz / 24-bit, Channels 1 to 16, Stereo 1

  • Controls: Faders

    16x 3.9" (100 mm) Motorized

  • Controls: Touch Screen

    5" (126 mm) TFT
    800 x 480 Resolution

  • Controls: Softkeys

    4

  • Controls: Mute Groups

    4

  • Controls: Network

    TCP / IP Ethernet for iPad App

  • Channels

    Local, Remote, USB

  • Stereo Linking

    Odd / Even Input Pairs
    Parameters Linked: EQ, Dynamics, Insert, Delay, Assignments, Sends
    Link Options: Preamp, Polarity, Sidechains, Fader / Mute, Pan

  • Polarity

    Normal / Reverse

  • HPF

    12 dB / Octave, 20 Hz to 2 kHz

  • Insert

    Assign FX into Input Channels

  • Delay

    Up to 85 ms

  • Gate

    Self-Key Sidechain
    Threshold / Depth: -72 dBu to 18 dBu / 0 to 60 dB
    Attack / Hold / Release: 50 ms to 300 ms, 10 ms to 5 s, 10 ms to 1 s

  • Parametric Equalizer

    Band 1: Selectable LF Shelving (Baxandall), Bell
    Band 2 & 3: Bell
    Band 4: Selectable HF Shelving (Baxandall), Bell
    Bell Width: Non-Constant Q, Variable, 1.5 to 1/9th Octave

  • Compressor

    Self-Key Sidechain
    Threshold / Ratio: -46 dBu to 18 dBu (1:1 to Infinity)
    Attack / Release: 300 us to 300 ms / 100 ms to 2 s
    Knee: Soft / Hard
    Types: Peak Manual, RMS Manual, SlowOpto, PunchBag

  • Channel Direct Out

    Follow Fader, Follow Mute (Global Options)
    Source Select (Global): Post-Preamp, Pre-EQ, Post-EQ, Post-Delay

  • Equalizer

    GEQ: Constant 1/3 Octave, 28 Bands 31 Hz to 16 kHz, (+/- 12 dB Gain), Mix 1-4, LR

  • Effects

    Types: Reverbs, Delays, Gated Reverb, ADT, Chorus, Symphonic Chorus, Phaser, Flanger
    4x Dedicated Stereo FX Returns: Fader, Pan, Mute, Routing to Mix / LR, 4-Band PEQ

  • Tools

    PAFL: PFL or Stereo in-Place AFL, 0 to -24 dB Trim, 85 ms Delay
    Talkback: Assignable to Any Mix, 12 dB/Octave HPF
    Signal Generator: Assignable to Any Mix, Sine / White / Pink / Bandpass Noise
    RTA: 31 Bands, 1/3 Octave 20 Hz to 20 kHz, Follows PAFL Source

  • Dimensions (W x D x H)

    Desk Mounted: 17.4 x 19.7 x 7.4" / 440 x 500 x 186mm
    Rack Mounted: 19 x 19.1 x 7.5" / 483 x 486 x 190mm, 1 RU

  • Weight

    22lb / 10kg

  • UPC Code

    6938122243798

2 Accessories for Allen & Heath QU-16 Rackmountable 16 Channel Digital Touchscreen Mixer, 22 Input/12 Output, Chrome Edition

  • All Accessories (2)
  • Rain Covers (1)
  • Brackets & Mounts (1)
Allen & Heath Dust Cover for QU-16 Digital Console
Allen & Heath Dust Cover for QU-16 Digital Console
$99.99
Allen & Heath 19" Rack Mount Kit for QU-16 Digital Mixer
Allen & Heath 19" Rack Mount Kit for QU-16 Digital Mixer
$99.99

About Allen & Heath QU-16

FEATURED REVIEWS

New digital user

By DAVE G.

Easy to setup, loads of features and transition from analog to digital went well.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this Allen & Heath 16-channel digital mixer.
  • Enjoy versatile mixing with 16 XLR mic inputs and balanced TRS line inputs.
  • Get precise EQ control with 4-band parametric EQ for detailed sound shaping.
  • Seamlessly record and playback via the integrated USB interface for easy DAW integration.
  • Experience low noise performance for clean, professional audio recordings every time.
  • Built for durability, this rackmountable mixer withstands rigorous live sound environments.

What's in the box:

  • Allen & Heath QU-16 Rackmountable 16 Channel Digital Touchscreen Mixer
  • Mains Lead
  • Getting Started Guide
  • Safety Sheet
  • Allen & Heath 1 Year Limited Warranty
