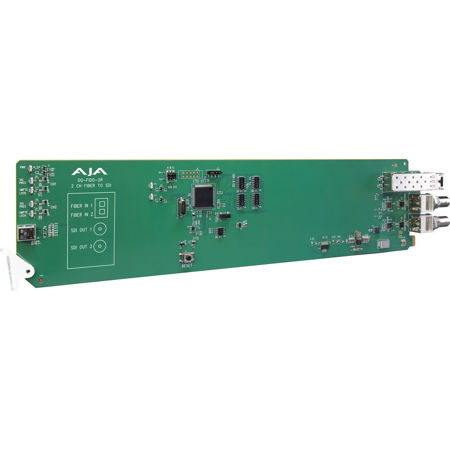

AJA OG-FIDO-2R 2-Ch LC Fiber to 3G-SDI Receiver Multi-Mode

The OG-FiDO-2R is a cutting-edge, openGear compatible, 2-channel Fiber to 3G-SDI converter, expertly designed to extend 3G-SDI signals up to an impressive distance of 10 km (32,808 ft) over fiber optic cable.

This device is specifically designed for integration into high-density openGear 2RU frames, including AJA's OG-X-FR frame. It also boasts new DashBoard software support on Windows, macOS, and Linux platforms. This software enables remote control and monitoring of the openGear architecture, offering industry-standard configuration, monitoring, and control options over a PC or local network.

The OG-FiDO-2R converter ensures optimal connectivity with its fiber inputs being reclocked, boasting top-tier input jitter tolerance. It supports 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The fiber connector is securely attached to the main card, enhancing reliability and cost-effectiveness.

As an openGear compatible device, the OG-FiDO-2R guarantees compatibility with other openGear products from certified openGear partners. With an ever-expanding list of products, openGear is paving the way for the future of rackframe products.

The DashBoard software, available for download, provides quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux platforms. The modular rear panel allows for custom I/O connections per card, included with individual cards for maximum flexibility.

For added security, an optional redundant power supply can provide a secondary power source in the event of a primary power failure. A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. For advanced communication with compatible openGear cards, optional per-card Ethernet access can be installed in the frame.
