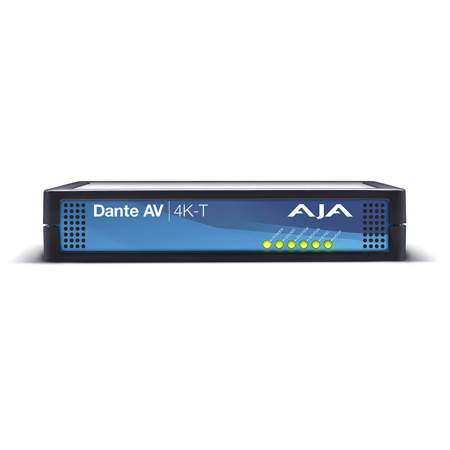

AJA Dante AV 4K 12G-SDI/HDMI 2.0 Video Transmitter

The AJA Dante AV 4K-T transmitter utilize the Dante AV Ultra codec that enables networked video to be used alongside the industry leading Dante audio-over-IP platform on standard 1 GigE IP networks for an easy to deploy, broadcast/proAV IP video solution.

AV 4K-T transmitter support Dante AV Ultra signals up to 4K/UltraHD, with 12G-SDI and HDMI 2.0 inputs or outputs. Dante AV provides ease-of-use, seamless multi-vendor interoperability, and an integrated control experience that customers have come to expect from AJA Video and Dante by Audinate.

HDR Support
The Dante AV 4K-T now supports popular HDR workflows - HDR HLG and PQ (HDMI: RGB and YUV - SDI: YUV only). Colorimetric can be set between Auto, BT.709 or BT.2020.

Connections
• Industry Standard 4-pin XLR For Power (use supplied AC Adapter or POE+ Switch)
• RS-422
• 2x Type A USB Ports
• Mini USB Host Port
• IR In/Out Ports
• 2x Locking Ethernet Ports
• SDI Output
• Reference Input
• HDMI Output
• RCA Analog Audio Out

Dante AV Ultra

Dante Domain Manager
Dante Domain Manager is an enterprise level Dante AV management platform which manages user access, device security, domain creation and control which functions across networks, and monitors your Dante AV seamlessly over multiple networks. The new API lets you control Dante from touch panels, monitor status and automate workflows.

Dante Controller
Use Dante Controller software on macOS or Windows to set up your video and audio signal routing. Use this application to set up the video and audio routing between Dante devices, including Dante AV 4K-T control the video and audio connections in the Dante setup, and move audio and video in real time over an Ethernet network.

Dante Via
Use Dante Via to configure audio devices to appear on the Dante network; for example, making the audio portion of AJA's Dante AV 4K-T appear as separate audio source channels on the Dante network.

Dante Virtual Soundcard
Dante Virtual Soundcard emulates a physical PC or Mac soundcard, but instead of connecting to actual physical audio devices like a mic, it connects to the Dante network. It can receive audio signals from the Dante network, including from Dante AV 4K-T and present them to your DAW app just like a normal physical soundcard would.

Multi-Site, HDR Workflow with House Reference Integration
This workflow shows the deployment of 4K HDR cameras in an offsite location connected via a private network. The HDR video and audio signal is encoded to Dante AV Ultra and sent on the Eth 1 POE+ port while the Eth 2 port in the remote location connects to the Dante Network to oversee production and manage the Dante AV 4K-T settings.

Conference/Education Workflow
Quickly and cost efficiently add high quality video to a 1 GigE network with the added ability to use the RS-422 control to operate a PTZ camera remotely with the Dante AV 4K-T transmitters

Sports Venue Workflow
The Dante AV 4K-T transmitter offer an efficient and cost-effective way to up your game by enabling adding embedded (up to) 4K video and audio to be sent via a 1 GigE network to the broadcast center. The AJA ColorBox offers in-line color management before the signal reaches the switcher for precise camera color matching and, thus, program color control. The program signal can then be encoded via the AJA BRIDGE LIVE powerhouse transcoding solution and then sent directly to a CDN.

Medium HOW Workflow
Take your Dante audio network to the next level by adding cinema quality Dante AV Ultra to your worship services, all on the 1 GigE Dante audio network. Dante AV 4K-T transmitters have IR send and receive capabilities, providing control integration with other devices as well.

Large Concert Workflow
Dante AV 4K-T transmitters expand your Dante audio live audio concert network to include Dante AV Ultra video. In this example, four 12G-SDI broadcast camera signals are going into the Dante network, and three Dante receivers are feeding the LED screens behind the stage. Scalability and flexibility are hallmarks of Dante AV Ultra. This workflow also demonstrates the KVM functionality of the Dante AV 4K-T transmitters.

Dante AV 4K-T Zoom Broadcast Workflow
The Dante AV 4K-T is the perfect bridge between a remote Zoom commentator and the production studio. This workflow shows a remote commentator interacting with the studio commentators, with low latency, AV Sync, and the cinematic quality of the Dante AV Ultra codec to add a remote perspective to any broadcast.

Dante AV and Networking
As an IP video product, the Dante AV 4K-T need to be connected to a Dante network, either an existing network you might have for working with Dante audio or a new Dante purpose built network for Dante AV Ultra. In either case, for initial setup, the Dante AV 4K-T will need to be connected to a customer-supplied Mac or PC with the latest version of Dante Controller software from Audinate. Dante AV Ultra requires a managed network switch for operation.
