Alibi ALI-NP1016VRH Specifications

  • Image Sensor

    1/1.8" CMOS

  • Scanning Mode

    Progressive Scan

  • Resolution

    Up to 3072x2048

  • Effective Pixels

    Approx. 6.0 Megapixel

  • Minimum Illumination

    Color: 0.014 Lux
    B/W: 0 Lux (IR ON)

  • Day/Night

    True Day/Night ICR

  • Wide Dynamic Range

    Digital

  • Electronic Shutter

    1 - 1/100000 (sec)

  • Gain Control

    Auto

  • White Balance Mode

    Auto

  • Noise Reduction

    3D DNR

  • IR Illuminators

    Smart IR Array, 850nm

  • IR Array Range

    100' / 30.48m

  • IR Sensitivity

    700 - 1100nm

  • Panning Range

    0-355 deg.

  • Tilting Range

    0- 75 deg.

  • Lens Type

    Motorized Varifocal

  • Focal Length

    2.8 - 12mm

  • Iris

    DC Driven Auto

  • Focus

    Auto/Semiautomatic/Manual

  • Horizontal Viewing Angle

    94.5 deg. (Wide)
    30.5 deg. (Tele)

  • F-number

    F1.4

  • Video Compression Format

    H.264 (Baseline/Main/High Profile), H.264 OVC (Optimized Video Codec), MJPEG

  • Codec Streaming Capability

    Tri Streaming

  • Maximum Frame Rate

    24fps at 3072 x 2048

  • Bit Rate

    32 kbps to 16 Mbps

  • Bit Rate Mode

    CBR, VBR

  • Audio Streaming

    Two-way

  • Audio Compression Format

    64Kbps (G.711) / 16Kbps (G.726) / MP2L2

  • Motion Detection

    Yes

  • Event Notification

    Alarm Output, Email, FTP

  • Privacy Mask

    Yes

  • ROI Encoding

    Up to 24 areas with adjustable levels

  • Defog

    Yes

  • Video Analytics

    Line Crossing Detection
    Intrusion detection
    Region entrance
    Region exiting
    Unattended baggage
    Object removal
    Scene change detection
    Sudden audio increase/decrease detection
    Defocus detection
    Face Detection
    Object Counting

  • Interface

    Ethernet: 1x RJ-45 10/100 BASE-T
    Audio Input : 1x In
    Audio Output: 1x Out
    Sensor Input : 1x In
    Alarm Output : 1x Out (up to DC24V 1A or AC24V 500mA )
    SD Card Slot : 1x Micro SD/SDHC/SDXC (up to 128GB)

  • Protocols

    TCP/IP,ICMP,HTTP,HTTPS,FTP,D HCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,I GMP,802.1X,QoS,IPv6,Bonjour, ONVIF, PSIA

  • Security

    One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access

  • Network Storage

    NAS (Support NFS, CIFS/SMB)

  • Material

    Aluminum (body)
    Polycarbonate (bubble)

  • System Requirements

    Operating System: Windows XP/VISTA/7/8/10, Mac OSX
    Processor: Intel Pentium 4 3.0 GHz or later
    Memory: 1GB or above RAM
    Display: 1024 x 768 resolution or higher
    Web Browser: Internet Explorer 6.0 or above, Apple Safari 5.02 or above, Mozilla Firefox 3.5 or above

  • Power Requirements

    PoE (IEEE802.3af/at) / 12 Vdc / 24 Vac

  • Power Consumption

    12 W max (heater off), 17 W max (heater on)

  • Operating Temperature

    -22 to 140 deg. F / -30 to 60 deg. C (heater off)
    -40 to 140 deg. F / -40 to 60 deg. C (heater on)

  • Operating Humidity

    0% to 95% RH, Non-condensing

  • Ingress Protection

    IP66

  • Impact Protection

    IK10

  • Approvals

    CE, FCC, RoHS

  • Dimensions (H x Dia.)

    5 x 6.49" / 12.70 x 16.48cm

  • Weight

    4.62lbs / 2.10kg

  • UPC Code

    791963375785

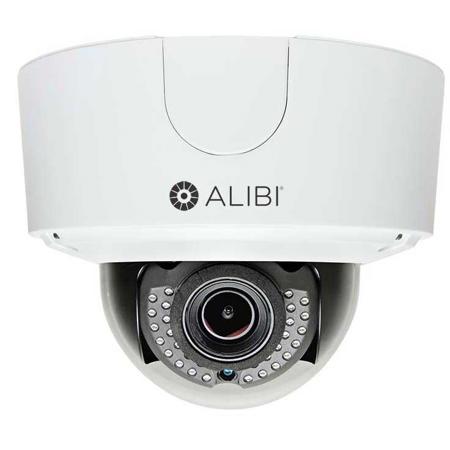

About Alibi ALI-NP1016VRH

This Alibi 6.0 Megapixel 100' IR Vandalproof Varifocal WDR Outdoor Dome IP Security Camera provides a cost-effective, professional IP security solution for monitoring your home or business. The high-resolution IP camera features a 1/1.8" CMOS progressive-scan image sensor that delivers up to 6.0 megapixel resolution at 24 frames per second (fps). The camera is equipped with a 2.8-12 mm DC driven auto iris motorized varifocal lens that automatically focuses and simplifies installation. The varifocal lens offers a 94.5 deg. (Wide) - 30.5 deg. (Tele) field of view to meet your application needs.

• Produces up to 6.0 megapixel resolution at 24 fps
• Smart IR reduces over-exposure of the IR LEDs at the center of the image
• Integrated IR LEDs enable the camera to see up to 100' in the dark
• D-WDR and 3D-DNR enhance image quality in variable and low-light conditions
• True 3-axis gimbal provides flexible mounting (wall or ceiling) and camera positioning
• 2.8-12 mm motorized auto focus lens automatically adjusts focus and simplifies installation
• 94.5 deg. (Wide) - 30.5 deg. (Tele) field of view
• H.264 OVC improves image quality and reduces bandwidth requirements
• Advanced video content analytics provide intelligent alerts
• Built-in heater protects the camera's components during cold weather
• IP66 weather-rated enclosure provides all-weather protection
• IK10 impact resistance for protection against physical impact
• ONVIF Profile S compliant and ONVIF Profile G approved
• PoE (802.3af, 802.3at)
• Micro SD card slot supports up to 128GB micro SD cards (Memory card sold separately)
• Free Alibi Witness iOS/Android mobile app

The 6.0 megapixel IP security camera features integrated IR LEDs that enable the camera to see up to 100' in the dark. The camera features Smart IR, an Advanced Infrared Technology, which reduces over-exposure of the IR LED at the center of the image without washing out the subject at close range. This IP camera also features H.264 OVC (Optimized Video Codec), a next-generation video compression format of the well-known H.264 video codec. H.264 OVC reduces IP camera file size by 50% (or greater) and enables the camera to see more detail, while reducing bandwidth and storage requirements. It also allows for faster, more fluid remote viewing, along with the ability to view more channels remotely.

The megapixel IP camera is equipped with true day/night (ICR) which captures sharp, detailed color images during the day and black and white images in low light. Digital wide dynamic range (D-WDR) and 3D digital noise reduction (3D-DNR) produce exceptional image quality with less noise in variable and low light conditions. The IP dome camera features a true 3-axis gimbal that simplifies installation and provides flexible mounting and camera positioning.

The tri-axis gimbal enables you to mount the dome camera virtually anywhere (wall or ceiling) and position it at any angle to achieve the desired field-of-view. The varifocal IP camera offers advanced video content analytics that provide intelligent alerts and recording, along with reducing bandwidth requirements.

The video content analytics this camera offers includes:
• Line Crossing Detection
• Intrusion Detection
• Region Entrance
• Region Exiting
• Unattended Baggage
• Object Removal
• Scene Change Detection
• Sudden Audio Increase/Decrease Detection
• Defocus Detection
• Face Detection
• Object Counting
• People Counting

The camera's IP66 weather-rated enclosure provides protection from particles such as dust and sand, as well as harsh weather conditions, including rain and snow. The vandal-resistant camera's enclosure is also IK10 impact resistant, which provides protection against physical impact. The camera has a -40 deg. F - 140 deg. F extreme temperature operating range and a built-in heater protects the camera's components during cold weather.

Connectors include:
• (1) VP-p composite output
• (1) Audio input
• (1) Audio output
• (1) Sensor input
• (1) Digital output

The megapixel IP dome camera supports up to 128GB micro SD cards (sold separately). The camera can be powered via 802.3af or 802.3at PoE or 12 Vdc or 24 Vac power supply and is ONVIF Profile S compliant for greater device compatibility and ONVIF Profile G approved. This camera also features an event log and event notification, along with email notification. The free Alibi Witness mobile app enables you to view your live and recorded video remotely-from anywhere, from your Android or iOS mobile device.

Megapixel Resolution - Cover more area and see more detail
Megapixel cameras can cover a larger area without compromising image quality. Megapixel resolution cameras deliver high-definition images with much greater detail. They are ideal where a greater level of detail is needed, such as for facial recognition and license plate identification.

Smart IR - Captures clear, sharp images in low light
Smart IR (smart infrared) automatically adjusts the amount of infrared light used to illuminate a scene as the subject moves closer to or further away from the camera, resulting in optimal exposure and a sharp, clear image that is neither washed out or too dark.

H.264 OVC (Optimized Video Codec) - Improves image quality and reduces bandwidth
requirements. H.264 OVC is a next-generation video compression format of the well-known H.264 video codec. H.264 OVC is an optimized compression technology that improves image quality and reduces bandwidth for security applications. It also allows for faster, more fluid remote viewing, along with the ability to view more channels remotely.

Motorized Varifocal Lens - Simplifies installation
The camera features a motorized varifocal lens that offers easy adjustment of the camera's focal length and simplifies installation. The lens automatically focuses, eliminating user focus errors.

Digital Wide Dynamic Range (D-WDR)
Gain a clear view in diverse lighting conditions. This feature enables the camera to produce clearer images in less than ideal lighting conditions. D-WDR balances the contrast of light and shadow to improve visibility in dark areas within a scene.

3D Digital Noise Reduction (3D-DNR) - Get exceptional video image quality with less noise
3D-DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. Noise reduction is critical for video because noise affects image quality. Cameras with 3D-DNR produce sharper, more accurate video images.

True Day/Night (ICR) - Enjoy around-the-clock surveillance
Alibi day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. An IR cut filter blocks out infrared light to produce true-to-life color images during the daytime. In low light conditions and at night, the filter is removed, letting infrared light pass through to provide crisp, well-defined black and white images.

True 3-Axis Gimbal - Gain flexible mounting capabilities
A true 3-axis gimbal provides the ability to mount the dome camera virtually anywhere (wall or ceiling) and position it at any angle to achieve the desired field-of-view.

Video Content Analytics (VCA) - Delivers intelligent alerts
The camera features advanced built-in video content analytics, such as line crossing and intrusion detection, to deliver more precise alerts and recordings, reduce false positives and save hard drive storage requirements.

Built-in Heater - Withstands cold temperatures
The camera features a built-in heater which makes it ideal for use in cold climates. The heater helps to protect the camera's electrical components, prevents fogging and condensation and keeps it operational in freezing temperatures. The all-weather construction supports a wide temperature operating range so that the camera is able to withstand sub-zero temperatures.

IK Impact Resistance - Withstand physical impacts
The IK rating system an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. It provides a means of specifying the capacity of an enclosure to protect its contents from external impacts. Ratings range from IK-01 to IK-10, with IK-10 being able to withstand the largest amount of impact energy (20 joules).

Free Alibi Witness iOS/Android App - View your video remotely from anywhere
Enjoy convenient remote access from your iOS or Android device with a FREE app.

Power over Ethernet (PoE) - Receive power and data through a single cable
PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation and lowers cabling costs.

ONVIF Profile S Compliant
Enjoy greater compatibility with more devices. This product conforms to ONVIF (Open Network Video Interface Forum) specifications for IP-based security products. ONVIF defines a common protocol for the exchange of information between different network video devices from different manufacturers, to allow greater interoperability in multi-vendor network video systems.

What's in the box:

  • Alibi 6.0MP Day/Night Outdoor Vandalproof WDR Dome IP Security Camera
  • Mounting Template
  • Set of Mounting Hardware
  • Quick Start Guide
  • CD-ROM (Installation Tools and Instructions)
  • Alibi 3 Year Warranty
