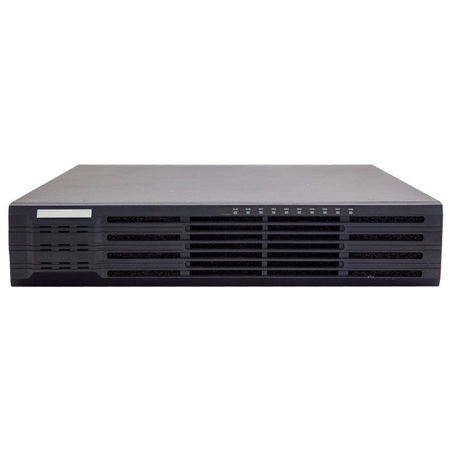

Alibi NVRH3208-0 32-Channel Ultra H.265 2U Rack Mount Network Video Recorder

SKU: ALINVRH32080

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Alibi NVRH3208-0 Specifications

Video/Audio Input

Video/Audio Input

Jump to...
  • IP Video Input

    32-ch

  • Two-way Audio Input

    1-ch, RCA

Network

Jump to...
  • Incoming Bandwidth

    320 Mbps

  • Outgoing Bandwidth

    320 Mbps

  • Remote Users

    128

  • Protocols

    SNMP, P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

Jump to...
  • HDMI/VGA Output

    HDMI1 / VGA: 1920 x 1080p / 60 fps, 1920 x 1080p / 50 fps, 1600 x 1200 / 60 fps, 1280 x 1024 / 60 fps, 1280 x 720 / 60 fps, 1024 x 768 / 60 fps
    HDMI2: 4K (3840 x 2160) / 60 fps, 4K (3840 x 2160) / 30 fps, 1920 x 1080p / 60 fps, 1920 x 1080p / 50 fps, 1600 x 1200 / 60 fps, 1280 x 1024 / 60 fps, 1280 x 720 / 60 fps, 1024 x 768 / 60 fps

  • CVBS Output

    1-ch, BNC

  • Recording Resolution

    12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Audio Output

    1-ch, RCA

  • Synchronous Playback

    16-ch

  • Corridor Mode Screen

    3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32

Decoding

Jump to...
  • Decoding format

    Ultra 265 / H.265 / H.264

  • Live view/Playback

    12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Capability

    3 x 12MP @ 25 fps, 4 x 4K @ 30 fps, 8 x 4MP @ 30 fps, 16 x 1080P @ 30 fps, 32 x 960P @ 25 fps, 36 x 720P @ 30 fps, 64 x D1

Hard Disk

Jump to...
  • SATA

    8 SATA interfaces

  • Capacity

    Up to 10TB for each HDD

  • eSATA

    1 eSATA interface

  • VCA Detection

    Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

  • VCA Search

    Face search, Behavior search

  • Statistical Analysis

    People counting

Disk Array

Jump to...
  • Array Type

    RAID 0, 1, 5, 6, 10

External Interface

Jump to...
  • Network Interface

    2 RJ45 10M / 100M / 1000M self-adaptive Ethernet Interfaces

  • Serial Interface

    1 x RS232, 1 x RS485

  • USB Interface

    Rear panel: 2 x USB2.0, 1 x USB3.0

  • Alarm In

    16-ch

General

Jump to...
  • Power Supply

    100 - 240 Vac
    Power Consumption: <= 20 W (without HDD)

  • Working Environment

    -10 Degree C - + 55 Degree C (+14 Degree F - +131 Degree F)
    Relative humidity <=90% (noncondensing)

  • Dimensions (W x D x H)

    17.4 x 20.9 x 3.4" (442 x 531 x 86mm)

  • Weight

    11.31 lbs (<= 5.13kg) (without HDD)

  • UPC Code

    810094730383

About Alibi NVRH3208-0

A professional IP recording solution for enterprise business applications supporting up to 32 IP cameras.

Protect your enterprise business with the Supercircuits 32-channel NVR. It supports up to 32 IP cameras and offers eight hard drive bays up to 10TB each, and a recording resolution of up to 12.0 megapixels for ultra-sharp, high-resolution surveillance. It also offers easy plug-and-play installation, smart analytic detection, and high-resolution security monitoring.

The free Guard Viewer mobile app enables you to view your live and recorded video remotely-from anywhere, from your Android or iOS mobile device.

Lower Bandwidth and Storage Usage
Supports Ultra H.265, H.265, and H.264 codecs that help reduce file size, maximize recording time and save hard drive space.

ANR Technology
To enhance storage reliability when the network is disconnected.

Smart analytics
This versatile recorder allows multiple selectable recording modes: intrusion, cross line, defocus, and scene change detection, along with VCA search and alert features include event search, event log, and email notification.

Easy management
An intuitive interface along with access to the free GuardViewer Mobile App and GuardViewer CMS makes management more straightforward than ever.

Alibi NVRH3208-0 Features

  • Up to 32 IP cameras can be connected
  • 320 Mbps recording capability
  • Ultra H.265/H.265/H.264 codec support
  • 8 hard drive bays @ 14TB
  • Supports RAID 0/1/5/6/10
  • ANR Network Storage
  • RAID redundant storage
  • One-click Cloud firmware updating

Key Features

  • Up to 32 IP cameras can be connected
  • 320 Mbps recording capability
  • Ultra H.265/H.265/H.264 codec support
  • 8 hard drive bays @ 14TB
  • Supports RAID 0/1/5/6/10
  • ANR Network Storage

What's in the box:

  • Alibi NVRH3208-0 32-Channel Ultra H.265 2U Rack Mount Network Video Recorder
  • USB Mouse
  • Remote Control
  • Power Supply Cable
  • HDD Power Cable
  • Rack Mounting Bracket
  • 8x HDD Handles
  • 4x Phoenix Terminal
  • User Documentation
  • Alibi 3 Year Limited Warranty
