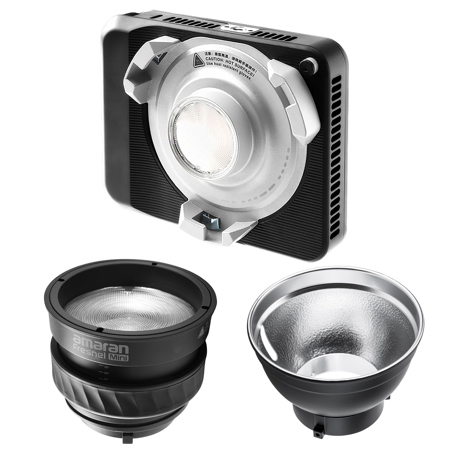

amaran Ray 60c 60W RGB LED, Bundle with Fresnel and Reflector
SKU: APRAY60CA MFR: MP0000018A A
Earn VIP Reward Points
PACKAGE INCLUDES:
amaran Ray 60c 60W RGB Full-Color Point-Source COB LED Video Light- +
Flashpoint XPLOR 600 Replacement Standard 7" Reflector (Bowens Mount)- +
amaran Mini Fresnel and Barn Doors for Ray 60c & 120c COB Light- +
- Show more
Key Features
- Experience brilliant, consistent RGB LED light with 95+ CRI for true-to-life colors in your photography.
- Achieve cinematic lighting with the included Fresnel and Reflector, perfect for versatile video production.
- Enjoy precise color control and creative freedom with OmniColor chipset, enhancing your visual storytelling.
- Benefit from the durable and reliable build, ensuring peak performance for all your creative projects.
- Effortlessly adjust power output and color temperature (2,300K-10,000K) for dynamic lighting effects.
- Stay connected with Bluetooth control via the amaran app, streamlining your workflow on set or location.
Need help? Ask our experts.
Overview
Compare
Accessories
Learn
Specs
Protection
Reviews about this item
Review Summary
2026-07-01T11:45:20
Rated 5 out of 5
JUST REVERSE THE MOUNT YOU TURKEYS
The other viewer here is flat wrong, in fact 19 out of 20 Youtuber reviewers [including ones I respect] got this, something so basic, wrong: yes, t is true that the proprietary mount is unidirectional, but you can simply and *easily* reverse the mount itself! Just unscrew the bracket from the base, flip, and re-insert. It's so self-evident a solution that Amaran must surely be banging their heads against a wall in disbelief at all these reviewers failing to realize it. All this mount criticism is proving that even normally reliable, smart people can blink right past the obvious, even sometimes, such as now, in droves.
Brandon S.
2026-06-21T08:12:43
Rated 3 out of 5
First impressions... great spec sheet, but frustrating
I'm giving this 3 stars based on proprietary bracket. On paper, the Ray 120c checks a lot of boxes: Bowens mount, solid output for the size, and really light weight. In practice, Amaran didn't think this through. The proprietary battery mount forces you to strap the power bank directly underneath the light head, which not only adds bulk back to a fixture that's supposed to be light, but also limits how you can angle it on a stand or boom. You end up needing a separate bracket just to mount it the way you'd expect a Bowens-mount light to mount - which means budgeting for an accessory that should've been unnecessary in the first place. So far it's a light I want to like more than I currently do. Iwon't return it but probably should have gone with the Nanlite 120c
PAUL D.
amaran Ray Specifications
General
General
Jump to...Edition
60W
Water Resistance/IP Rating
IP54
AC Power Cable
13.12' (4m)
Adapter Cable
1.64' (0.5m)
SSI (Tungsten)
87
SSI (D56)
80
TM-30 RG (Average)
100
TM-30 RF (Average)
94
Max Power Consumption
75W (USB-C)
Color Chipset
OmniColor
Max Noise Level
28dBA (86 Degree F (30 Degree C))
Operating Temperature
14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)
Storage Temperature
-4 Degree F - 176 Degree F (-20 Degree C - 80 Degree C)
Control Methods
On-board, amaran App
Firmware Upgradeable
amaran App
Screen Type
TFT
Light Fixture
Jump to...Number of Heads/Lights
1
Photometrics
2,300K:
No Accessories: 1m: 303fc; 3m: 34fc
Octa Dome 30: 1m: 105fc; 3m: 12fc
Mini Reflector: 1m: 1,515fc; 3m: 168fc
Mini Fresnel (Spot): 1m: 1,861fc; 3m: 207fc
Mini Fresnel (Flood): 1m: 719fc; 3m: 80fc
10,000K:
No Accessories: 1m: 319fc; 3m: 35fc
Octa Dome 30: 1m: 110fc; 3m: 12fc
Mini Reflector: 1m: 1,600fc; 3m: 178fc
Mini Fresnel (Spot): 1m: 1,949fc; 3m: 217fc
Mini Fresnel (Flood): 1m: 757fc; 3m: 84fcColor Temperature
RGB
Color Temperature Range
Standard: 2,300K - 10,000K
Expanded (CCT+): 1,800K - 20,000KColor Modes
RGB, Tungsten
Color Rendering Index (CRI)
95+
Television Lighting Consistency Index
95+
Beam Angle
70 Degree
Lumens
4,021 lumens
Cooling
Active Cooling
Power
Jump to...Power Source
USB-C PD 3.0, DC, amaran Ace E-Lock
Max Power
60W
Input Voltage
Fixture: DC 12V - 24V
Power Supply: AC 100V - 240V / 2.5A / 50 - 60Hz
Connectivity
Jump to...Wireless Connectivity
Bluetooth
Wireless Range
<=262.5' (80m)
Battery Connection
No
Mounting
Jump to...Front Accessory Mount
Bowens Mount
Fixture Type
LED Cob light
Fixture Mount
1/4-20" screw mount
Physical Details
Jump to...Dimensions
Fixture: 5.7 x 4.5 x 1.7" (14.5 x 11.5 x 4.4cm)
Octa Dome 30 (Collapsed): 7.9 x 11.8 x 11.8" (20.0 x 30.0 x 30.0cm)
Octa Dome 30 (Built): 13.6 x 7.1 x 2.6" (34.76 x 18.0 x 6.5cm)
Ace Lock Grip: 9.1 x 4.3 x 4.3" (23.0 x 11.0 x 10.8cm)
Carrying Bag: 10.1 x 10.4 x 4.3" (40.8 x 26.4 x 11.0cm)
Physical Dimensions
Jump to...Weight
Fixture: 1.16 lbs (528.5g)
Octa Dome 30: 0.53 lbs (240g)
Ace Lock Grip: 0.93 lbs (420g)
Carrying Bag: 1.04 lbs (480g)
Other
Jump to...UPC Codes
192223306479 | 6977162459653 | 840014174331 | 6977162457260
Related Articles & Videos
New Sonos Ray is the All-in-One Soundbar Solution
Pioneers of wireless audio Sonos are proud to announce the launch of a powerful new soundbar: the Sonos Ray. For years now, Read more
6 Accessories for amaran Ray 60c 60W RGB LED, Bundle with Fresnel and Reflector
- All Accessories (6)
- Adapters & Mounts (2)
- Barndoors (2)
- Reflectors (1)
- Accessory (1)
amaran Fresnel and Barn Doors Kit for Ray 360c and 660c COB Light
$129.00
amaran Mini Fresnel and Barn Doors for Ray 60c & 120c COB Light
$59.00
amaran Mini 25 Degree Reflector for Ray 60c & 120c COB Light
$19.00
amaran Peak 75
$85.00
amaran Ace Lock to 5/8" Baby Pin Quick Release Adapter for Ray 60c & 120c Lights
$19.00
amaran Ace Lock to 5/8" Baby Pin Quick Release Adapter Grip for Ray 60c & 120c
$39.00
About amaran Ray
Designed for creators on the move, the amaran Ray 60c is an ultracompact, 60W full-color point-source LED light powered by the OmniColor light engine - delivering class-leading output and true-to life color in an ultra-slim, ultra-lightweight body. With an IP54-rated build for real-world shoots, amaran Ace E-Lock compatibility, and simplified USB-C PD power, the amaran Ray 60c is a travel-ready, mobile kit made to move from outdoors to the studio.
Ultra-compact power for on-the-go.
Comparable in size - and lighter than most - mirrorless camera bodies, the amaran Ray 60c delivers powerful lighting in an ultra-slim (4.4cm / 1.7in), lightweight (528g / 1.16lbs) design, yet still retains a full-size Bowens Mount. This compact build allows you to travel lighter and set up faster in tight spaces, on the go, and between locations.
Best-in-class brightness.
The amaran Ray 60c outshines competing ultra-compact COB lights, delivering up to 3,910 lux at 1m without accessories - over 50% increase in output vs. the amaran COB 60x S - while being nearly half the size1. Or pair with the optional Mini Reflector or Mini Fresnel for even more punch.
True-to-life color with OmniColor.
Powered by the OmniColor light engine, the amaran Ray 60c reproduces light that looks true-to-life - both on camera and to the eye. Building on amaran's previous full color chipset, OmniColor expands the red and blue ranges to deliver a fuller, more balanced spectrum of light - achieving SSI scores of 87 (Tungsten) and 80 (D56). What you see is what you capture: cleaner whites, truer skin tones, and more accurate color that stays consistent on camera.
Ultimate portable power flexibility.
In addition to the included DC power adapter, the amaran Ray 60c is built for mobility with amaran Ace E-Lock and USB-C PD support. Run for 46 minutes at 100% output with the amaran Peak 75 via Ace E-Lock for a cable-free setup or 1 hour via the USB-C port. Or power with USB-C PD power banks and chargers - eliminating NP-F or V-Mount batteries while keeping your setup streamlined from outdoor to studio shoots.
Instant, effortless controls.
The amaran Ray 60c is built to make setup and adjustments faster and more intuitive. Use the FlowTurn knob to fine-tune one step at a time when you need precision or spin quickly to accelerate through settings when efficiency is key. In the amaran app, pair your amaran Ray 60c or multiple lights in the Ray family with just a tap via built-in NFC - even before turning it on.
amaran Ray Features
- Ultra-compact, 60W output full color COB light
- Compact power for on-the-go: Ultra-slim (4.4cm), ultralightweight (528g) body that's quick to pack, mount, and carry
- Best-in-class output: Up to 3,910 lux @ 1m (bare) - 50%+ brighter than previous-gen 60W COB at nearly 50% size1
- True-to-life, OmniColor light engine: Enhanced, fuller color spectrum with expanded red and blue ranges for cleaner whites, truer skin tones, and more accurate color
- Wireless amaran Ace E-Lock: Cable-free operation for 46 mins with amaran Peak 75 or 65 mins with amaran Peak
- Compatible with USB-C PD 3.0 power banks and chargers for ultimate portable power flexibility
- IP54 weather-resistant design: Dust & splash resistant - ideal for wind, light rain, sand, or humidity
- Adaptive control with FlowTurn knob: Tactile feedback when adjusting lighting settings with speed or precision
- Instant, one-tap pairing to the amaran app via built-in NFC
- Included Octa Dome 30: 30cm (1ft) one-snap setup softbox
- Included Ace Lock to Baby Pin Adapter Grip for quick mounting to light stands or handheld use with portable battery, with secure silicone strap for securing power source
- 2,300K to 10,000K ultra-wide adjustable color temperature (1,800K to 20,000K CCT with CCT+ Mode)
- Green-magenta adjustment for color-accurate skin tones
- Recreate any color with 360 Degree full color control: HSI (hue, saturation, intensity) and RGB color modes
- Color accurate light: CRI: 95+, TLCI: 95+, TM-30 Rg: 100, TM-30 Rf: 94, SSI (Tungsten): 87, SSI (D56): 80
- Metal, full-size Bowens Mount compatible with optional Mini Reflector, Mini Fresnel, & other Bowens Mount modifiers
- Multiple power options: Supports amaran Ace E-Lock, USBC PD3.0, and DC 12V-24V power input methods
- Integrated 1/4-20in screw mount for easy attachment to tripods, light stands, or other mounting solutions
- Instantly adjust light settings in Quick Operation Mode
- Long press and double click Custom Shortcuts
- High-Speed Photography Mode and Studio Mode
- 0-100% stepless brightness control
- 12 lighting FX: Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Fire, Paparazzi, Welding, Cop Car, Party Lights
- Adjustable Silent or Smart fan mode
- Low fan noise: Max 28dBA at max. output
- Simplified, colored menu screen for easy operation
- Light effortlessly with wireless amaran app control
- All-in-one creator kit with included carrying bag
Key Features
- Experience brilliant, consistent RGB LED light with 95+ CRI for true-to-life colors in your photography.
- Achieve cinematic lighting with the included Fresnel and Reflector, perfect for versatile video production.
- Enjoy precise color control and creative freedom with OmniColor chipset, enhancing your visual storytelling.
- Benefit from the durable and reliable build, ensuring peak performance for all your creative projects.
- Effortlessly adjust power output and color temperature (2,300K-10,000K) for dynamic lighting effects.
- Stay connected with Bluetooth control via the amaran app, streamlining your workflow on set or location.
What's in the box:
- amaran Ray 60c 60W RGB Full-Color Point-Source COB LED Video Light
- Ace Lock to Baby Pin Adapter Grip
- Octa Dome 30 Softbox
- Octa Dome 30 Diffusion Cloth
- Octa Dome 30 Light Control Grid
- AC to DC 90W Power Adapter (0.5m)
- AC Power Cable (4m)
- Carrying Bag
- amaran 1 Year Limited Warranty
