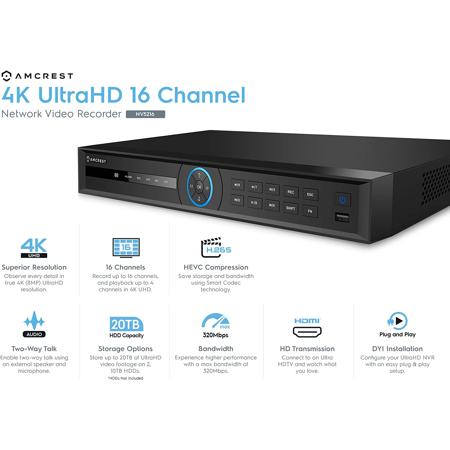

Amcrest NV5216 4K UHD 16-Channel H.265 Network Video Recorder with 3TB HDD

SKU: AMNV52163TB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-06-29T20:00:00

Rated 2 out of 5

Did not work for my network

Set up OK and cameras added OK. However, I have Range Extenders (RE)on my network and when the NVR was connected to my main Router it caused my Bandwidth on my REs to be significantly reduced that had an impact on all things working off the REs, including TVs. Amcrest troubleshooted this and could not resolve it, therefore I returned and got a refund for the NVR.

James F.

2021-06-10T20:00:00

Rated 5 out of 5

Great NVR and the customer

Great NVR and the customer service (PATRICK SPENCER) was very helpful also.

Robert P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Amcrest NV5216 Specifications

System
  • Main Processor

    Quad-core embedded processor

  • Operating System

    Embedded LINUX

Audio and Video

Jump to...
  • IP Camera Input

    16 Channels

  • Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

Display

Jump to...
  • Interface

    1x HDMI, 1x VGA

  • Resolution

    HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768. VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Decoding Capability

    4-ch@8MP (30fps), 16-ch@1080P(30fps)

  • Multi-screen Display

    1/4/8/9/16

  • OSD

    Camera title, Time, Camera lock, Motion detection, Recording

Recording

Jump to...
  • Compression

    H.265/H.264/MJPEG

  • Resolution

    12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps

  • Bit Rate

    16Kbps - 20Mbps Per Channel

  • Record Mode

    Manual, Schedule, Stop

  • Record Interval

    1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

Video Detection and Alarm

Jump to...
  • Trigger Events

    Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

  • Video Detection

    Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

  • Alarm Input

    4 Channel

  • Relay Output

    2 Channel

Playback and Backup

Jump to...
  • Sync Playback

    16CH: 1/4/9/16

  • Search Mode

    Time /Date, Alarm, MD and Exact Search (accurate to second)

  • Playback Function

    Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

  • Backup Mode

    USB Device/Network

Network

Jump to...
  • Interface

    1x RJ-45 Port (10/100/1000Mbps)

  • Network Function

    HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search.

  • Max. User Access

    128 Users

  • Management Software

    Amcrest Surveillance Pro (Windows/MAC) Amcrest View Pro app for IOS and Android Web Browser (Pale Moon, Sea Monkey, Firefox 49.0, Internet Explorer, Chrome with Amcrest Extension, Safari)

  • Interoperability

    ONVIF 2.4, SDK, CGI

  • Incoming Bandwidth

    320 Mbps

Storage

Jump to...
  • Internal HDD

    2x SATA III Ports, Up to 10 TB capacity for each HDD, Pre-Installed 3TB Seagate Skyhawk Hard Drive

Auxiliary Interface

Jump to...
  • USB

    2x USB Ports (1x Rear USB 3.0, 1x Front USB 2.0)

  • RS232

    1x Port

  • RS485

    1x Port

General

Jump to...
  • Power Supply

    Single, DC12V/4A

  • Power Consumption

    <9.5W (Without HDD)

  • Fan

    Smart fan, automatically adjust running speed

  • Operating Conditions

    +14 Degree F - +131 Degree F (-10 Degree C - +55 Degree C), 86 - 106kpa

  • Storage Conditions

    -4 Degree F - +158 Degree F (-20 Degree C - +70 Degree C), 0 - 90% RH

Physical

Jump to...
  • Dimensions

    14.8 x 12.9 x 2.1" (375 x 326.5 x 53mm)

  • Weight

    3.5 lbs (1.6kg) (Without HDD)

  • UPC Code

    091952769824

About Amcrest NV5216

FEATURED REVIEWS

Great NVR and the customer

By Robert P.

Great NVR and the customer service (PATRICK SPENCER) was very helpful also.

4K Quality
The DVR finally brings 4K UHD quality to a NVR that can be viewed on vivid, crystal-clear 8-Megapixel resolution. Experience true High Definition video unlike any other system as your monitor brings everything to life. Whether you are recording, taking snapshots, or checking Motion Detection alerts, no detail will make it past you even if it tried.

Amcrest 16-Channel NVR
Connect up to 16 cameras at once that you can control at the same time through the NVRs on-screen display! You can record up to 16CH 8MP Recording @ 30 and 2CH Playback @ 15fps, 16CH 6MP Recording @30fps and 2CH Playback @ 30fps, 16CH 5MP Recording @30fps and 3CH Playback @30fps, 16CH 4MP Recording @30fps and 4CH Playback @30fps, 16CH 3MP Recording @30fps and 4CH Playback @30fps, and 16CH 2MP Recording @30fps and 8CH Playback @30fps onto on any hard drive size. Supports up to 2 x 10TB and utilizes motion detection and scheduled recordings to record for a lot longer than continuous recording would allow.

Real-Time, No Latency Viewing
The HD NVR's closed-circuit design allows you to watch things happen as they happen. With a high-speed, dedicated, dual-core embedded processor, you can be ensured that your recorded footage will have virtually no latency which allows for real-time, highly reliable video security streams without loss or delay. You may as well be standing right there!

Remote Viewing and Storage
When you bring your NVR online, you can tap into your system and check on all your cameras at any time from anywhere in the world! You can do this through the Amcrest View smartphone/tablet app as well as through the web interface once it has been setup for remote viewing. This allows you to always keep in touch with what's going on no matter where you are and even features alert notifications on the go!

Amcrest View App for iPhone or Android
Free yourself from having to sit at a computer to check on your cameras! Now, you can take them with you on the go by pulling up live feeds with the new Amcrest View app. It is free to download and available on the App Store and Play Store. The HD NVR comes with a QR-code for a quick and painless plug-and-play setup for remote viewing on your smartphone. Just scan it into the app and start viewing right away!

More Secure Than IP
Instead of having multiple devices independently accessible through the network, with the HD NVR, you only have one device. This NVR will be the hub for all your cameras at once. It's not only easier to set-up, but easier to manage, troubleshoot, access and control. And because you only have one device online, as opposed to multiple, you can also feel more secure.

Backwards Compatible
NVR is backwards compatible with VGA, 720p and 960p, IP Cameras. Fully compatible with Amcrest IP cameras.

Intelligent Timeline Playback
Amcrest NVRs come equipped with an intelligent timeline playback feature which allows you to view all of your recordings on a beautiful, intuitive interface. Scroll seamlessly through different days, hours, or minutes and stream your recorded videos easily.

Plug-and-Play Set-up with Intuitive On Screen Display
No confusing configuration necessary. With the HD NVR, you just connect your Ethernet cable, and enjoy your vibrant HD stream. At last, no more messy computer software downloading or configuration necessary. No need to worry about IP configuration, subnetting, or port forwarding for each and every single camera independently. Instead, configure all your IP cameras into one location, the NVR, to gain access to all of your cameras at once! Enjoy viewing, controlling, and managing all your cameras on the NVR's built-in OSD. You can even use your own mouse!

USB for Data Transfers and HDMI or VGA Output
10 full Terabytes of storage space not enough? You don't have to delete old recordings to make room. Now you can pop in a USB drive or cable and backup your most important videos to an external storage device! And you can choose between standard and high definition output to any monitor or TV of your choice. Imagine showing off your cameras on the big screen!

Amcrest NV5216 Features

  • Extraordinary Quality: Supports 16-Channel 1080p/3MP/4MP/5MP/6MP/4K/12MP Resolution
  • Records 16-Channels @ 1080p/3MP/4MP/5MP/6MP/8MP
  • View up to 4CH @ 4K @ 30fps simultaneously and the NVR will dial the remaining channels to 1080P @ 30fps
  • Record in Widescreen, Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Amcrest View app)
  • Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the UltraHD video quality
  • Remotely Access Using Standard Windows and Mac Browsers
  • Easy to Install: Connect to and Manage All Cameras on Your Network
  • Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons
  • Multiple Trigger/Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer
  • Blazing throughput of 320Mbps enables you to watch things happen as they happen: real-time, highly reliable HD video without loss or delay
  • Custom Record Modes (e.g. Manual, Scheduled, Motion Detection) and Record Intervals (1-120min)
  • Features a USB 3.0 port in the back and a USB 2.0 port in the front of the NVR
  • Pre-Installed 3TB Seagate Skyhawk Hard Drive (Supports up to 2 x 10TB Hard Drives)

Key Features

  • Extraordinary Quality: Supports 16-Channel 1080p/3MP/4MP/5MP/6MP/4K/12MP Resolution
  • Records 16-Channels @ 1080p/3MP/4MP/5MP/6MP/8MP
  • Remotely Access Using Standard Windows and Mac Browsers
  • Easy to Install: Connect to and Manage All Cameras on Your Network
  • Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons
  • Multiple Trigger/Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer

What's in the box:

  • Amcrest NV5216 4K UHD 16-Channel H.265 Network Video Recorder
  • 3TB Hard Drive (Pre-Installed)
  • USB Mouse
  • Network Cable
  • NVR Power Supply
  • SATA Cable
  • Quick Start Guide
  • Amcrest 1 Year Limited Warranty
