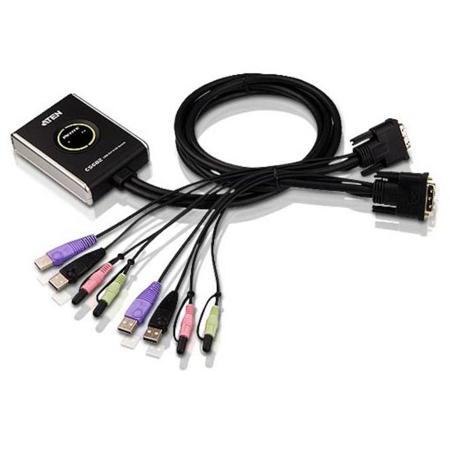

Aten CS682 2-Port USB 2.0 DVI KVM Switch
See all Aten items

Aten CS682 2-Port USB 2.0 DVI KVM Switch

SKU: ANCS682

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten CS682 Specifications

  • Computer Connections

    2

  • Port Selection

    Remote port selector, Mouse, Hotkeys

  • Connectors: Console Ports

    Keyboard: 1x USB Type A Female (Silver)
    Video: 1x DVI-D Female (White)
    Mouse: 1x USB Type A Female (Silver)
    Speakers: 1x Mini Stereo Jack Female (Green)
    Microphone: 1x Mini Stereo Jack Female (Pink)

  • Connectors: KVM Ports

    Keyboard: 2x USB Type A Male (Purple)
    Video: 2x DVI-D Male (Black)
    Mouse: 2x USB Type A Male (Black)
    Speakers: 2x Mini Stereo Jack Female (Green)
    Microphone: 2x Mini Stereo Jack Female (Pink)

  • Connectors: Remote Port Selector

    Mini Stereo Jack

  • LEDs: KVM

    2x Green

  • LEDs: Remote Port Selector

    2x Green

  • Cable Length: KVM

    2x 1.2m / 3.94'

  • Cable Length: Remote Port Selector

    1.8m / 5.91'

  • Emulation: Keyboard / Mouse

    USB

  • Video

    1920 x 1200

  • Scan Interval

    3, 5, 10, 20 secs. (default 5 secs.)

  • Power Consumption

    5V, 3.05W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Plastic

  • Dimensions (L x W x H)

    11.10 x 7.80 x 2.50cm / 4.37 x 3.07 x 0.98"

  • Weight

    0.50kg / 1.10lbs

  • UPC Code

    672792110559

About Aten CS682

The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.

Furthermore, the CS682 features enhanced Video DynaSync technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer. Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience and enhanced user- friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.

Aten CS682 Features

  • One DVI video console controls two USB computers
  • Fully DVI-Digital specification compliant
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
  • Computer selection via remote port selector, hotkeys, and USB mouse
  • Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Compact design, built-in all-in-on cables (2x 1.2m)
  • Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
  • Superior video quality - up to 1920 x 1200
  • Compatible with widescreen LCD monitors
  • Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
  • Supports multimedia keyboards
  • Supports wireless keyboards and mice
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Mac/Sun keyboard support and emulation
  • HDCP Compliant
  • Non-Powered
  • Firmware upgradable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • One DVI video console controls two USB computers
  • Fully DVI-Digital specification compliant
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
  • Computer selection via remote port selector, hotkeys, and USB mouse
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Compact design, built-in all-in-on cables (2x 1.2m)

What's in the box:

  • Aten CS682 2-Port USB 2.0 DVI KVM Switch
  • Remote Port Selector
  • User Instructions
  • Aten 3 Year Warranty
