New Arrival

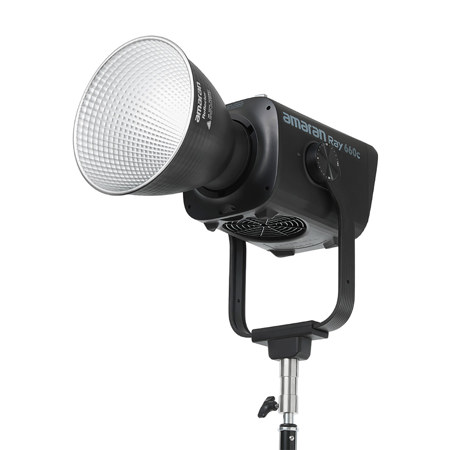

amaran Ray 660c 660W RGB Full-Color Point-Source COB LED Video Light

SKU: APRAY660C MFR: MP00000197
Earn VIP Reward Points

Key Features

  • Experience vibrant, full-color lighting with 660W RGB output for stunning visual effects.
  • Achieve precise color accuracy with SSI (Tungsten) 87 and SSI (D56) 80 for true-to-life hues.
  • Control your light effortlessly using the amaran app or DMX2 for seamless workflow integration.
  • Enjoy versatile lighting setups with the Bowens Mount, compatible with various light modifiers.
  • Illuminate large spaces effectively with an impressive 45,904 lumens, ensuring bright, even coverage.
  • Stay cool and focused with active cooling and a low 28dBA noise level for quiet operation.
See More Product Details
Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

amaran Ray Specifications

General

General

Jump to...
  • Edition

    660W

  • Water Resistance/IP Rating

    IP54

  • AC Power Cable

    16.40' (5m)

  • SSI (Tungsten)

    87

  • SSI (D56)

    80

  • TM-30 RG (Average)

    100

  • TM-30 RF (Average)

    94

  • Max Power Consumption

    750W

  • Color Chipset

    OmniColor

  • Max Noise Level

    28dBA (86 Degree F (30 Degree C))

  • Operating Temperature

    14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 176 Degree F (-20 Degree C - 80 Degree C)

  • Control Methods

    On-board, amaran App, DMX2

  • Firmware Upgradeable

    amaran App, USB-C

  • Screen Type

    TFT

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Photometrics

    2,300K:
    No Accessories: 1m: 2289fc; 3m: 266fc
    Reflector: 1m: 5463fc; 3m: 545fc
    Octa Dome 90: 1m: 1547fc; 3m: 106fc
    Fresnel (Spot): 3m: 1879fc; 5m: 689fc
    Fresnel (Flood): 3m: 394fc; 5m: 151fc

    10,000K:
    No Accessories: 1m: 4150fc; 3m: 386fc
    Reflector: 1m: 7841fc; 3m: 784fc
    Octa Dome 90: 1m: 2237fc; 3m: 152fc
    Fresnel (Spot): 3m: 2736fc; 5m: 1002fc
    Fresnel (Flood): 3m: 579fc; 5m: 220fc

  • Color Temperature

    RGB

  • Color Temperature Range

    Standard: 2,300K - 10,000K
    Expanded (CCT+): 1,800K - 20,000K

  • Color Modes

    RGB, Tungsten

  • Color Rendering Index (CRI)

    95+

  • Television Lighting Consistency Index

    95+

  • Beam Angle

    No Reflector: 70 Degree
    Reflector: 45 Degree

  • Lumens

    45,904 lumens

  • Cooling

    Active Cooling

  • Power Source

    AC

  • Max Power

    660W

  • Input Voltage

    AC 100V - 240V / 50 - 60Hz

Connectivity

Jump to...
  • Wireless Connectivity

    Bluetooth

  • Wireless Range

    <=262.5' (80m)

  • Battery Connection

    No

Mounting

Jump to...
  • Front Accessory Mount

    Bowens Mount

  • Fixture Type

    LED Cob light

  • Yoke Type

    Manual

Physical Details

Jump to...
  • Dimensions

    Fixture w/o Yoke: 11.79 x 7.31 x 7.05" (29.9 x 18.6 x 17.9cm)
    Fixture w/Yoke: 11.79 x 9.49 x 16.54" (29.9 x 24.1 x 42.0cm)
    Carrying Case: 23.50 x 13.98 x 12.60" (59.7 x 35.5 x 32.0cm)

Physical Dimensions

Jump to...
  • Weight

    Fixture: 12.57 lbs (5.7kg)
    Carrying Case: 2.45 lbs (1.11kg)

  • UPC Code

    6977162453279

Related Articles & Videos

3 Accessories for amaran Ray 660c 660W RGB Full-Color Point-Source COB LED Video Light

  • All Accessories (3)
  • Barndoors (2)
  • Reflectors (1)

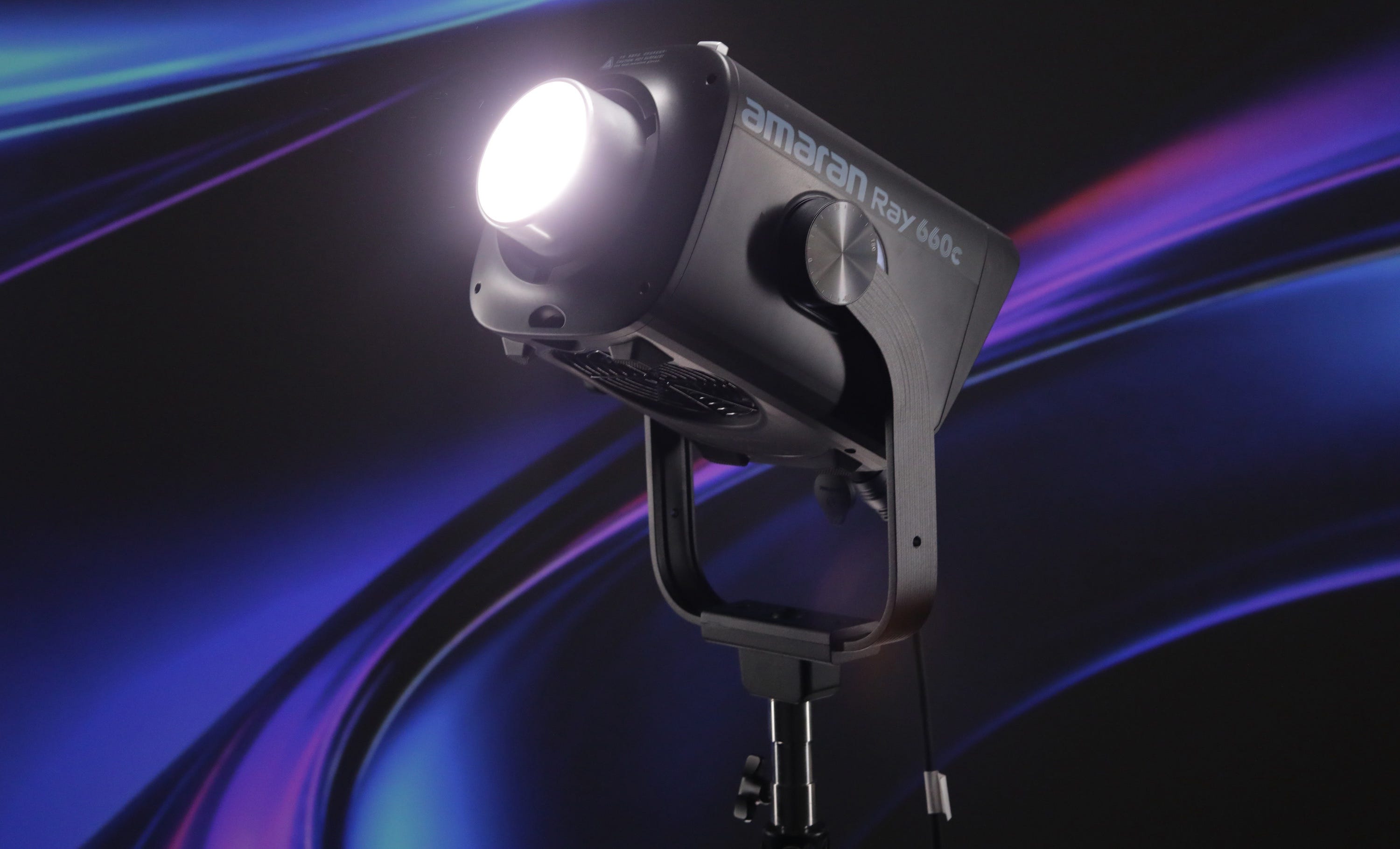

About amaran Ray

Designed for home studios and on-location spaces that need more punch, the amaran Ray 660c is a 660W full-color point-source LED light powered by the OmniColor light engine - delivering true-to-life color and powerful, studio-quality output in a streamlined, monolight design that runs on a single AC cable. With DMX control via USB-C and an IP54-rated build for real-world shoots, the amaran Ray 660c keeps setups simple and efficient - from larger studios to expansive outdoor spaces.

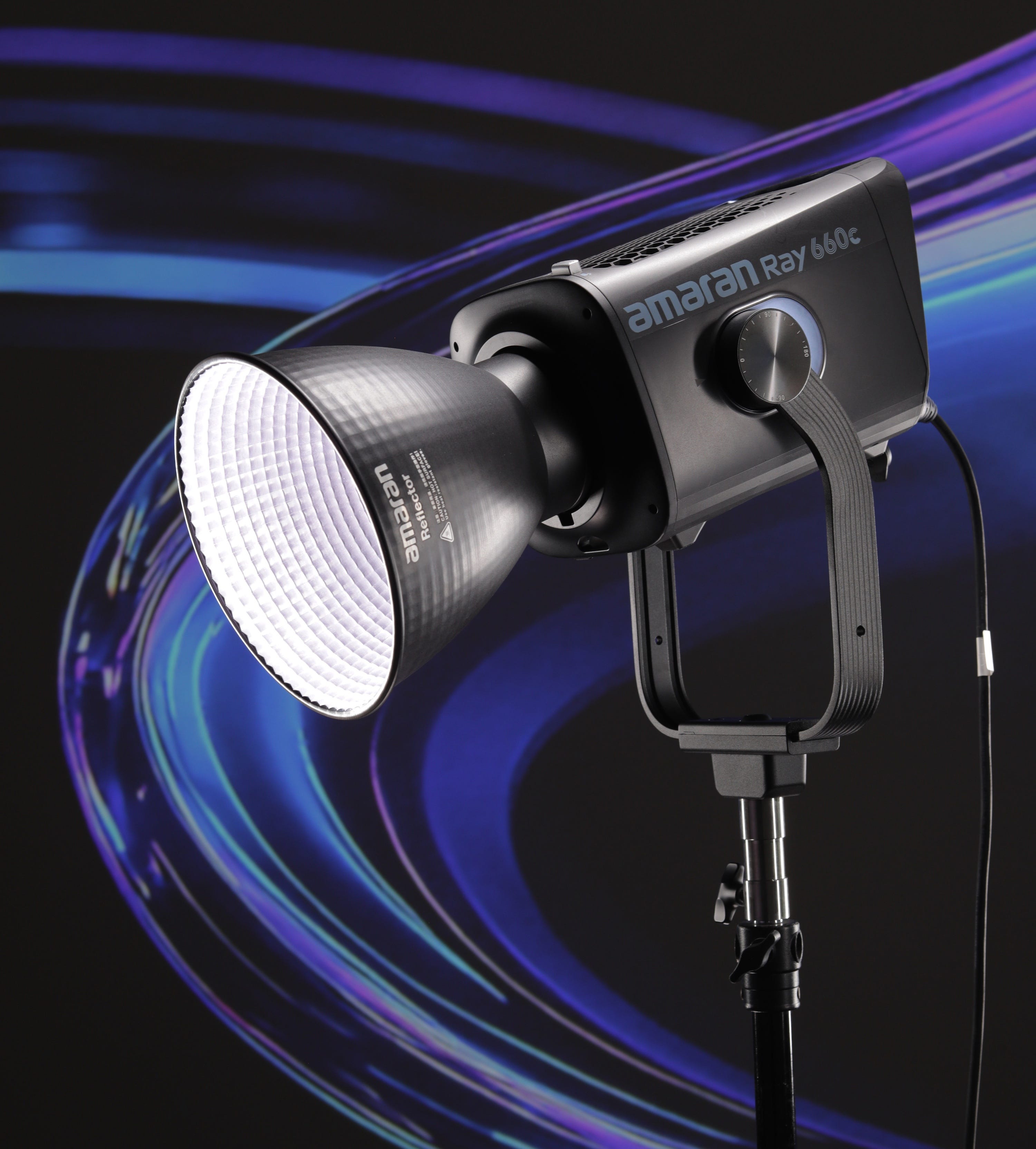

All-in-one design for studio simplicity.
The amaran Ray 660c is the first full-color COB in its power class to integrate the power supply directly into the light, so you can start creating faster with just a single AC cable. With fewer components to carry, store, and mount - and eliminating bulky, external power bricks to manage - this all-in one, monolight design keeps your setup efficient and clutter-free.

True-to-life color with OmniColor.
Powered by the OmniColor light engine, the amaran Ray 660c reproduces light that looks true-to-life - both on camera and to the eye. Building on amaran's previous full color chipset, OmniColor expands the red and blue ranges to deliver a fuller, more balanced spectrum of light - achieving SSI scores of 87 (Tungsten) and 80 (D56). What you see is what you capture: cleaner whites, truer skin tones, and more accurate color that stays consistent on camera.

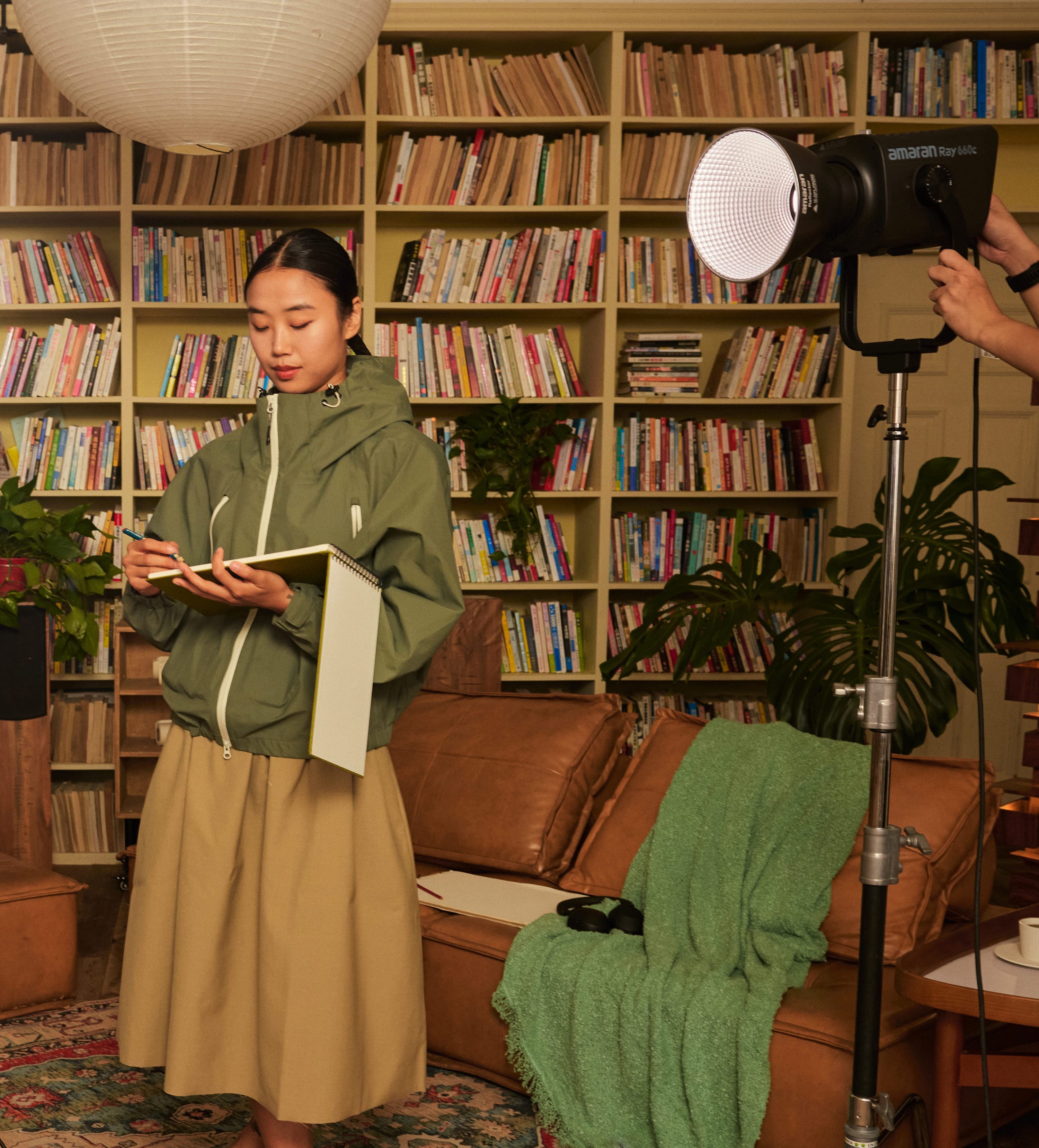

Powerful, studio-quality output for larger spaces.
Whether lighting subjects or filling expansive studios, the amaran Ray 660c delivers up to 38,500 lux at 1m without accessories - the highest-output amaran COB light to date - giving you flexibility to light farther back, use larger softboxes, and fill wider frames. Boost your output with the included Reflector, extend your throw with the optional Fresnel, or soften your light with optional Bowens Mount softboxes.

DMX control via USB-C for advanced workflows.
From podcasts to music video sets, add DMX control via the optional USB-C to 5-Pin DMX In & Out Adapter to integrate the amaran Ray 660c with industry-standard consoles and software. Whether programing precise cues, syncing multi-light looks, or triggering repeatable scenes, DMX control via USB-C lets you scale into advanced studio workflows when needed.

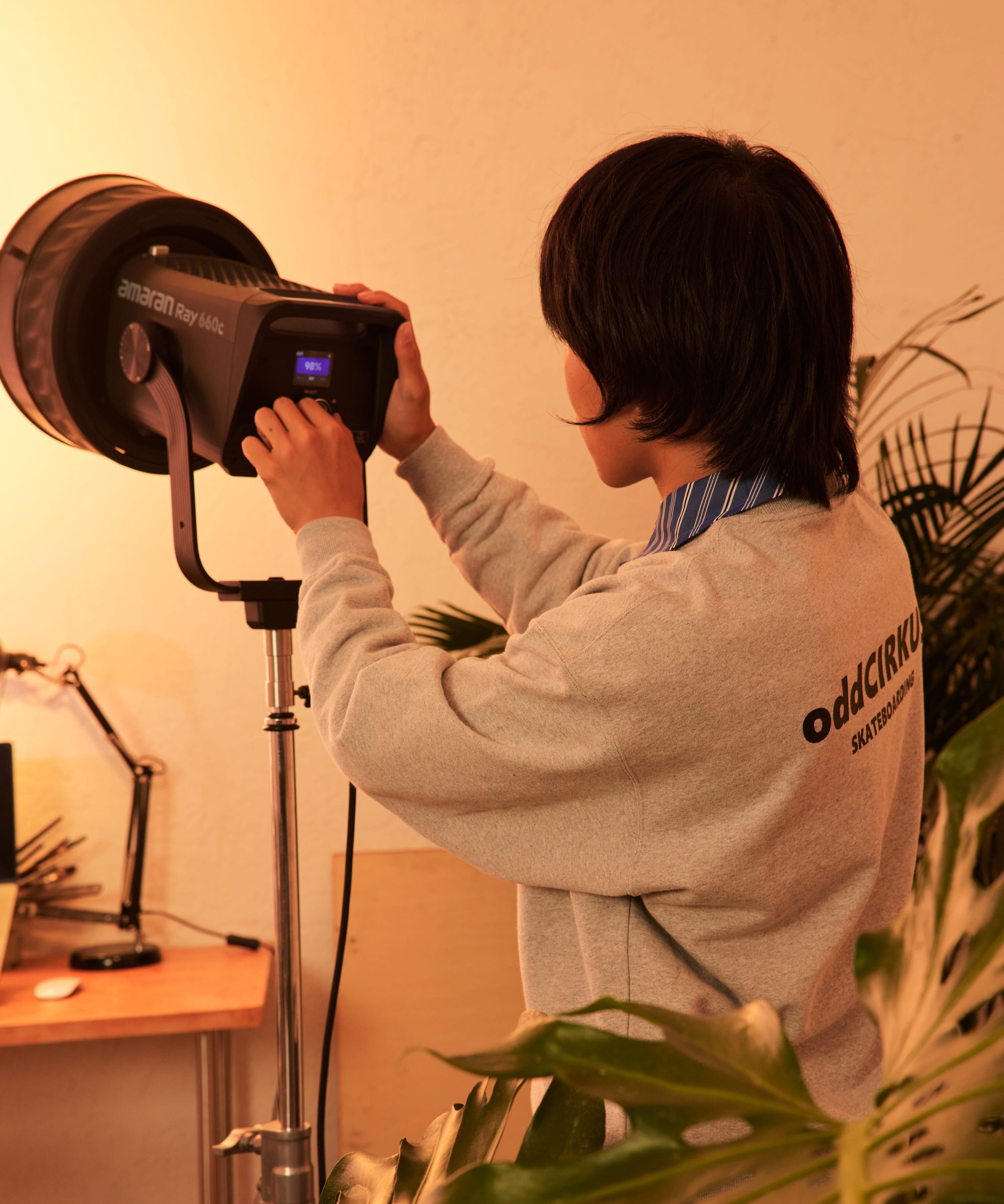

Instant, effortless controls.
When you need quick, hands-on control, the amaran Ray 660c makes setup and adjustments faster - on the light or in the amaran app. Use the FlowTurn knob to fine-tune one step at a time when you need precision or spin quickly to accelerate through settings when efficiency is key. In the amaran app, pair your amaran Ray 660c or multiple lights in the Ray family with just a tap via built-in NFC - even before turning it on.

amaran Ray Features

  • 660W output full color COB light with integrated AC power
  • All-in-one design for studio creators: Streamlined, monolight-style design powered by a single AC cable - first full-color COB in its power class
  • True-to-life, OmniColor light engine: Enhanced, fuller color spectrum with expanded red and blue ranges for cleaner whites, truer skin tones, and more accurate color
  • Powerful, studio-quality output: Up to 38,500 lux @ 1m (bare) - highest-output amaran COB light to date
  • DMX control via USB-C: Integrate into industry-standard consoles and software with optional USB-C to DMX Adapter
  • IP54 weather-resistant design: Dust & splash resistant - ideal for wind, light rain, sand, or humidity
  • Adaptive control with FlowTurn knob: Tactile feedback when adjusting lighting settings with speed or precision
  • Instant, one-tap pairing to the amaran app via built-in NFC: Streamline multi-light setups in advance or before rigging overhead - even before powering on
  • 2,300K to 10,000K ultra-wide adjustable color temperature (1,800K to 20,000K CCT with CCT+ Mode)
  • Green-magenta adjustment for color-accurate skin tones
  • Recreate any color with 360 Degree full color control: HSI (hue, saturation, intensity) and RGB color modes
  • Color accurate light: CRI: 95+, TLCI: 95+, TM-30 Rg: 100, TM-30 Rf: 94, SSI (Tungsten): 87, SSI (D56): 80
  • Metal, full-size Bowens Mount compatible with included Reflector, optional Fresnel, & other Bowens Mount modifiers
  • Yoke design for precise rotation of lamp head with dual junior / baby pin receiver for easy mounting to light stands
  • Built-in safety chain bracket for added security & protection
  • Instantly adjust light settings in Quick Operation Mode
  • Long press and double click Custom Shortcuts
  • High-Speed Photography Mode and Studio Mode
  • 0-100% stepless brightness control
  • 12 lighting FX: Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Fire, Paparazzi, Welding, Cop Car, Party Lights
  • Adjustable Silent or Smart fan mode
  • Low fan noise: Max 28dBA at max. output
  • Simplified, colored menu screen for easy operation
  • Light effortlessly with wireless amaran app control

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience vibrant, full-color lighting with 660W RGB output for stunning visual effects.
  • Achieve precise color accuracy with SSI (Tungsten) 87 and SSI (D56) 80 for true-to-life hues.
  • Control your light effortlessly using the amaran app or DMX2 for seamless workflow integration.
  • Enjoy versatile lighting setups with the Bowens Mount, compatible with various light modifiers.
  • Illuminate large spaces effectively with an impressive 45,904 lumens, ensuring bright, even coverage.
  • Stay cool and focused with active cooling and a low 28dBA noise level for quiet operation.

What's in the box:

  • amaran Ray 660c 660W RGB Full-Color Point-Source COB LED Video Light
  • Reflector
  • AC Power Cable (5m)
  • Blue Bowens Mount Protection Cover
  • EPP Carrying Case
  • amaran 1 Year Limited Warranty
