American Power Conversion (APC) SMT750C Smart-UPS 750VA Backup with SmartConnect
See all American Power Conversion (APC) items

American Power Conversion (APC) SMT750C Smart-UPS 750VA Battery Backup and Surge Protector with SmartConnect

SKU: APSMT750C

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-10-18T20:00:00

Rated 5 out of 5

I woke up in the middle of the night with backup

I got this to replace an order unit that burnt up. It arrived very quick and was easy to set up and start

crazymike

2020-05-30T20:00:00

Rated 5 out of 5

Would Recommend

Does what it's supposed to. Definitely worth having. Would for sure recommend to anyone!

WeirdBeard

2020-04-22T20:00:00

Rated 5 out of 5

Great Product

Excellent features and well made products all the way round.

B1010

2020-01-13T19:00:00

Rated 5 out of 5

SMT750C Review

I've had the SMT750C for better than a month now and I'm impressed. The features included take this consumer UPS to a whole new level. The UPS is installed in a remote location and powers communications gear and smart home equipment. What I was looking for in a UPS was a device that would power up after extended power outages and keep the gear running for short periods of time so that alert messages would be sent. The SMT750C accomplishes this and more. My current settings are as follows: Turn On Delay (set to 120 seconds) Turn Off Delay (15 seconds) Reboot Duration (8 seconds) Minimum Return Time (30 seconds) Load Shed Time on Battery (1800 seconds) Load Shed Runtime Remaining (3600 seconds). With the above I can ride through short power outages, long power outages I shed the equipment conserve battery life and wait for commercial power to return. The APC SmartConnect portal gives me the tools necessary to check everything I could possibly want and be proactive. Anyone looking for a 'Smart' consumer UPS should give this serious consideration

Frank

2019-11-24T19:00:00

Rated 5 out of 5

Awesome 750VA fits on your desk!

Awesome little 750VA UPS unit that fits and looks great on your desk! As with most other APC products this is solid reliable and feature rich. It has the Smart Connect remote monitor capability as well. 6 Surge and Battery Outlets. Smart Card slot. LCD looks great and makes it easy to read and understand. Definitely recommended.

Splattered23

2019-05-28T20:00:00

Rated 4 out of 5

Sinewave!!!

So happy... Sinewave, gaming, PDU. That is all you need to say to get the full potential out of this rig.

mbrunner

2018-11-15T19:00:00

Rated 2 out of 5

Multiple Lost Connections with USB

This UPS is not nearly as good as the SUA750 it replaced. Purchased a few months ago, the Powerchute Software and USB interface has lost connection over 6 times since placing into service. The SUA750, which was in service for over 14 years, NEVER lost connection with PowerChute.

FLMark

2018-06-05T20:00:00

Rated 4 out of 5

Great UPS for the Desk

I was looking for something with a smaller footprint. The UPS 750VA seems to meet my needs and fit perfectly on the desk I have.

RKTech

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk3329094d

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk339fsjk

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk328fjj

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk3288a

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk3323sdk0

2018-04-11T20:00:00

Rated 5 out of 5

all that and a bag of chips

I am very happy with this UPS. I did quite a bit of reading before I purchased it because of some of the mixed reviews. I'll cover the ones it seemed were mentioned the most. First: odor. When I first plugged mine in it had a VERY SLIGHT odor for the first couple weeks. I would pretty much have to be sitting right next to it to notice. Second: noise. The fan can hardly be heard when it's running and the unit is virtually silent all other times. Third: Heat. Mine has never been more than barely warm to the touch. Fourth: brightness. The display is what I would describe as a cool blue in color. It doesn't shine light in and of itself so it doesn't light up the room.

osudk33dahu

2017-09-25T20:00:00

Rated 4 out of 5

Great Product - Limited Admin functions

Great concept of allowing IT departments and MSP's to manage all their UPS devices in single pane of glass. Good point on these should make them easy to sell. LCD is nicer than previous models. Management console needs some improvement. I should be able to add other admin/technicians to a manage these.

BADAZZMAZ

2017-09-25T20:00:00

Rated 4 out of 5

Great Product - Limited Admin functions

Great concept of allowing IT departments and MSP's to manage all their UPS devices in single pane of glass. Good point on these should make them easy to sell. LCD is nicer than previous models. Management console needs some improvement. I should be able to add other admin/technicians to a manage these.

Anonymous

2017-09-20T20:00:00

Rated 5 out of 5

Great small UPS that's really smart

I can't say enough about this UPS, and it connects to the web and emails alerts is fantastic

TechGeek904

2017-09-11T20:00:00

Rated 5 out of 5

This thing is Great

I love the web connect monitoring and the multi device connected monitoring with the Power Chute Professional software. I can login to the web portal for smart connect and see all relevant information about the UPS. I can also setup to be emailed when the power goes out so I can know when the UPS has been needed.

Adam

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

American Power Conversion (APC) SMT750C Specifications

Output

Output

Jump to...

  • Output power capacity

    500Watts (750VA)

  • Max Configurable Power (Watts)

    500Watts (750VA)

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Other Output Voltages

    110, 127

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

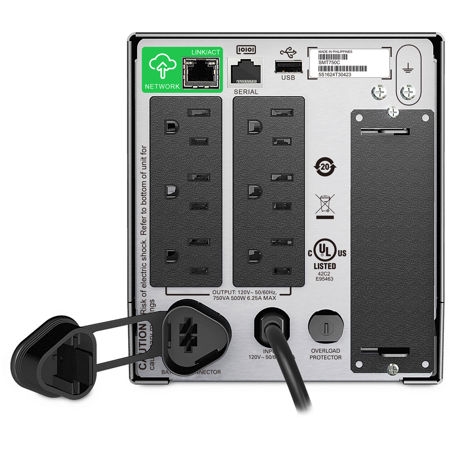

  • Output Connections

    (6) NEMA 5-15R (Battery Backup)

  • Transfer Time

    6ms typical : 10ms maximum

Input

Jump to...

  • Nominal Input Voltage

    120V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA L5-30P

  • Cord Length

    6' (1.83m)

  • Input voltage range for main operations

    82 - 144V

  • Input voltage adjustable range

    75 - 154V (for mains operation)

  • Number of Power Cords

    1

  • Other Input Voltages

    110, 127

Batteries & Runtime

Jump to...

  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Typical recharge time

    3 hours

  • Runtime at 100 Watts

    50.5 minutes

  • Replacement Battery

    RBC48

  • Expected Battery Life (years)

    3 - 5 Years

  • RBC Quantity

    1

Communications & Management

Jump to...

  • Interface Ports

    RJ-45 Serial, SmartSlot, USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • Available SmartSlot Interface Quantity

    1

  • Surge energy rating

    540Joules

Surge Protection and Filtering

Jump to...

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Environmental

Jump to...

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-10000' (0-3000meters)

  • Storage Temperature

    -5 - 113 Degree F (-15 - 45 Degree C)

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-50000' (0-15000meters)

  • Audible noise

    41.0dBA (at 1 meter from surface of unit)

  • Online thermal dissipation

    90.0BTU/hr

Conformance

Jump to...

  • Approvals

    CSA, CSA C22.2 No. 107.1, FCC Part 15 Class A, ICES-003, UL 1778

Sustainable Offer Status

Jump to...

  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

Physical

Jump to...

  • Color

    Black

  • Dimensions (H x W x D)

    6.64 x 5.43 x 14.53" (16.1 x 13.8 x 36.9cm)

  • Weight

    27.56 lb (12.5kg)

Other

Jump to...

  • UPC Code

    731304325451

About American Power Conversion (APC) SMT750C

FEATURED REVIEWS

I woke up in the middle of the night with backup

By crazymike

I got this to replace an order unit that burnt up. It arrived very quick and was easy to set up and start

Would Recommend

By WeirdBeard

Does what it's supposed to. Definitely worth having. Would for sure recommend to anyone!

Discover the SMT750C Smart-UPS 750VA Battery Backup and Surge Protector with SmartConnect, a reliable and advanced solution for your power needs. This high-quality product from APC by Schneider Electric is designed to provide uninterruptible power, ensuring your servers, networks, and other essential equipment remain operational even in the event of a power outage or surge.

The SMT750C Smart-UPS is a versatile choice, suitable for a wide range of applications and budgets. Whether you're running a home office, a small business, or managing an IT department, this UPS offers a solution tailored to your needs. From entry-level to scalable runtime, it's the ideal choice for powering servers, point-of-sale equipment, routers, switches, and hubs.

Experience the benefits of its innovative features, including the SmartConnect remote monitoring system, which provides automatic notifications, firmware updates, and advanced support services. The intuitive LCD interface offers clear, multilingual information and easy-to-use navigation keys.

This UPS also boasts a pure sine wave output on battery, simulating utility power for the highest degree of compatibility with active PFC servers and sensitive electronics. The SmartSlot feature allows you to customize UPS capabilities with management cards, while the temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.

The SMT750C Smart-UPS also ensures maximum battery performance, life, and reliability through its intelligent battery management system. It features automatic self-tests for early detection of battery replacement needs, and its power conditioning protects connected loads from surges, spikes, lightning, and other power disturbances.

With its low operating and maintenance costs, high efficiency, and proven reliability, the SMT750C Smart-UPS is a smart investment for your power needs. Its patented green operating mode achieves efficiencies over 97%, and it was the first network UPS to be Energy Star certified.

Enjoy peace of mind with the SMT750C Smart-UPS, a product that combines full equipment compatibility and reliability with the assurance of over 23 years of design and manufacturing expertise from APC. With over 25 million units sold worldwide, Smart-UPS is the most trusted network UPS on the market.

Tailor your UPS to your specific application needs with over 15 different programmable settings, including switched outlet group control. This allows for application-specific settings, thresholds, and notifications.

Avoid costly power problems and keep your IT equipment and data safe and available with the SMT750C Smart-UPS 750VA Battery Backup and Surge Protector with SmartConnect. This UPS offers network-grade power conditioning to protect from damaging surges and disruptive noise, and reliable battery back-up capacity to power through outages or gracefully shutdown systems.

American Power Conversion (APC) SMT750C Features

  • Cold-start capable
  • Energy meter
  • Green mode
  • High online efficiency
  • Intuitive LCD interface
  • Predictive replace battery date
  • Pure sine wave output on battery
  • SmartConnect
  • SmartSlot
  • Temperature-compensated battery charging
  • Audible alarms
  • Network manageable
  • Serial connectivity
  • LED status indicators
  • Disconnected battery notification
  • USB connectivity
  • Automatic self-test
  • Automatic restart of loads after UPS shutdown
  • Power conditioning
  • Intelligent battery management
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Adjustable voltage-transfer points
  • Adjustable voltage sensitivity
  • Resettable circuit breakers
  • Predictive failure notification
  • Battery failure notification
  • Hot-swappable batteries
  • User-replaceable batteries
  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
  • Save time with easy and convenient remote accessibility
  • Smarter productivity with ability to tailor to your specific application needs
  • Peace of mind that comes with full equipment compatibility and reliability of a leader
  • Avoids costly power problems by keeping your IT equipment and data safe and available

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality uninterruptible power supply (UPS) for servers, networks, & other essential equipment
  • Intuitive LCD interface with clear, multilingual information and easy-to-use navigation keys
  • Pure sine wave output on battery for compatibility with active PFC servers & sensitive electronics
  • Intelligent battery management system for maximum battery performance, life, and reliability
  • Network-grade power conditioning to protect against damaging surges and disruptive noise

What's in the box:

  • SMT750C Smart-UPS 750VA Battery Backup and Surge Protector with SmartConnect
  • CD with Software
  • Documentation CD
  • USB Cable
  • American Power Conversion (APC) 3 Year Limited Warranty
