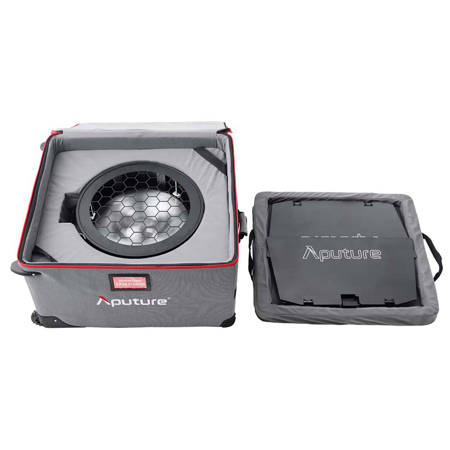

Aputure CF16 16" Motorized Fresnel Lens, Includes Rolling Soft Case
See all Aputure items

Aputure CF16 16" Motorized Fresnel Lens, Includes Rolling Soft Case

SKU: APC16RC MFR: AA07060370
Be the first to review this itemAsk a Question
$2,690.00
OR
$225/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve precise lighting control with the motorized 16" Fresnel lens for dynamic light shaping.
  • Experience superior light quality and intensity, perfect for professional film and photography sets.
  • Enjoy broad compatibility with Aputure Mount lights, enhancing your existing gear's versatility.
  • Effortlessly adjust beam angles from 18 to 50 degrees, ideal for various cinematic effects.
  • Benefit from durable construction and included barn doors, ensuring reliable performance and light spill control.
  • Transport your lens with ease using the included case, offering portability for on-location shoots.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$249.99
2-Year Adorama Protect$329.99
3-Year Adorama Protect$459.99

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Aputure CF16 Specifications

General

General

Jump to...

  • Compatibility

    STORM XT52 LED Light

  • Type

    Lenses

  • Fits

    Aputure Mount

  • Beam Angle

    Full Spot: 18 Degree
    Full Flood: 50 Degree

Physical Details

Jump to...

  • Lens Size

    16" (40.64cm)

  • Color

    Black

  • Dimensions

    CF16 Fresnel: 22.2 x 20.4 x 9.2" (56.4 x 51.9 x 23.4cm)

  • Weight

    CF16 Fresnel: 26.01 lbs (11.8kg)

Other

Jump to...

  • Photometrics (2,500K)

    XT52 (18 Degree):
    127,100 lux / 11,804 fc at 9.84' (3m)
    45,800 lux / 4,254 fc at 16.4' (5m)

    XT52 (50 Degree):
    23,280 lux / 2,162 fc at 9.84' (3m)
    8,380 lux / 778 fc at 16.4' (5m)

  • Photometrics (3,200K)

    XT52 (18 Degree):
    151,000 lux / 14,025 fc at 9.84' (3m)
    56,000 lux / 5,202 fc at 16.4' (5m)

    XT52 (50 Degree):
    26,760 lux / 2,485 fc at 9.84' (3m)
    26,760 lux / 2,485 fc at 16.4' (5m)

  • Photometrics (4,300K)

    XT52 (18 Degree):
    184,500 lux / 17,135 fc at 9.84' (3m)
    66,300 lux / 6,157 fc at 16.4' (5m)

    XT52 (50 Degree):
    33,900 lux / 3,148 fc at 9.84' (3m)
    12,230 lux / 1,136 fc at 16.4' (5m)

  • Photometrics (5,600K)

    XT52 (18 Degree):
    177,500 lux / 16,484 fc at 9.84' (3m)
    65,900 lux / 6,120 fc at 16.4' (5m)

    XT52 (50 Degree):
    31,700 lux / 2,944 fc at 9.84' (3m)
    12,170 lux / 1,130 fc at 16.4' (5m)

  • Photometrics (6,500K)

    XT52 (18 Degree):
    175,500 lux / 16,298 fc at 9.84' (3m)
    63,000 lux / 5,850 fc at 16.4' (5m)

    XT52 (50 Degree):
    32,400 lux / 3,009 fc at 9.84' (3m)
    11,680 lux / 1,085 fc at 16.4' (5m)

  • Photometrics (10,000K)

    XT52 (18 Degree):
    130,300 lux / 12,100 fc at 9.84' (3m)
    46,700 lux / 4,337 fc at 16.4' (5m)

    XT52 (50 Degree):
    24,150 lux / 2,243 fc at 9.84' (3m)
    8,690 lux / 807 fc at 16.4' (5m)

  • UPC Codes

    Flight Case: 6977162457192 | Rolling Soft Case: 6977162455549

1 Accessories for Aputure CF16 16" Motorized Fresnel Lens, Includes

  • All Accessories (1)
  • Barndoors (1)
Aputure CF16 Barn Doors Adapter
Aputure CF16 Barn Doors Adapter
$150.00
Recommended

About Aputure CF16

The CF16 Fresnel is a compact motorized Aputure Mount fresnel with a 16-inch diameter lens and a spot-flood range of 18 Degree - 50 Degree . It is designed for use with the STORM XT52. The CF16 Fresnel efficiently intensifies the native light output of the STORM XT52 by up to 7x. It provides a smooth falloff from center to edge, all with a compact and lightweight form factor achieved by a dual-expanding focusing system.

This unique system allows the CF16 to increase the distance between its rear and front elements by extending both ends of its barrel, not just the front like traditional fresnel accessories. With a motorized focusing system, the CF16 can be precisely controlled at the fixture's lamp head or remotely via Sidus Link, Sidus Link Pro, or a lighting control console via DMX. The CF16 Fresnel can be paired with the included CF16 Barn Doors to give users more shaping control over the output of their STORM XT52. For additional convenience, the CF16 Fresnel and its CF16 Barndoors will fit into the Case for storage and transportation.

Aputure CF16 Features

  • 16" compact Aputure Mount fresnel designed for the STORM XT52
  • 18 Degree to 50 Degree spot-flood range
  • Motorized dual-expanding focusing system drastically reduces fresnel size and weight while allowing precise remote focusing
  • 7x Intensification of XT52 output
  • Included CF16 Barn Doors
  • Included Case for storing & transporting CF16 and CF16 Barn Doors
  • Smooth falloff from center to edge of output

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve precise lighting control with the motorized 16" Fresnel lens for dynamic light shaping.
  • Experience superior light quality and intensity, perfect for professional film and photography sets.
  • Enjoy broad compatibility with Aputure Mount lights, enhancing your existing gear's versatility.
  • Effortlessly adjust beam angles from 18 to 50 degrees, ideal for various cinematic effects.
  • Benefit from durable construction and included barn doors, ensuring reliable performance and light spill control.
  • Transport your lens with ease using the included case, offering portability for on-location shoots.

What's in the box:

  • Aputure CF16 16" Motorized Fresnel Lens
  • Barn Doors
  • Safety Cable
  • Case
  • Aputure 1 Year Limited Warranty
