Autel Robotics EVO Nano Specifications

Nano Aircraft

Nano Aircraft

Jump to...
  • Color

    Orange

  • Max Ascent Speed/strong

    6m/s (sport), 4m/s (normal), 3m/s (stable)

  • Max Level Flight Speed

    4m/s (sport), 3m/s (normal), 2m/s (stable)

  • Max Level Flight Speed

    4m/s (sport), 3m/s (normal), 2m/s (stable)

  • Max Takeoff Altitude

    4000m

  • Max Flight Time (no wind)

    28min

  • Max Hovering Time (no wind)

    26min

  • Max Flight Distance (no wind)

    16.8km

  • Max Wind Resistance

    Level 5

  • Max Tilt Angle

    33 Degree (movement), 25 Degree (normal), 25 Degree (stable)

  • Max Angular Velocity

    200 Degree (movement), 120 Degree (normal), 60 Degree (stable)

  • Operating Temperature

    14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

  • Transmission Power (EIRP)

    FCC:<=30dBm

  • GNSS

    GPS

  • Hovering Accuracy

    Vertical: +/-0.1m (when the visual positioning is active), +/-0.5m (with GPS positioning)
    Horizontal: +/-0.3m (when the visual positioning is active), +/-1.5m (with GPS positioning);

  • Built-in storage

    No

  • SD storage

    Max. support 256GB (UHS-3 rating required)

  • Wheelbase

    9" (231mm)

  • Dimensions

    Folded: 5.5 x 3.5 x 1.9" (140 x 90 x 50mm)
    Unfolded: 10.3 x 12.2 x 1.9" (264 x 310 x 50mm) (including blades)

  • Takeoff Weight

    8.7 oz (249g) (without Accessories)

Nano Aircraft Battery

Jump to...
  • Capacity

    2250mAh

  • Voltage

    7.7V

  • Max charging voltage

    8.8V

  • Battery

    Li-Po 2S

  • Energy

    17.32Wh

  • Charging temperature

    41 - 113 Degree F (5-45 Degree C)

  • Single battery charging time

    90min

  • Max charging power

    30W

  • Battery Info

    Required, included

  • Battery Material

    Lithium polymer

  • Battery Type

    -

  • Battery Quantity

    3

  • Stabilization

    3-axis

  • Mechanical Range

    Pitch: -125 Degree -35 Degree
    Roll: -34 Degree -33 Degree
    Yaw: -25 Degree -25 Degree

  • Controllable Range

    Pitch: -90 Degree - 0 Degree

  • Max Control Speed (pitch)

    30 Degree /s

  • Angular Vibration Range

    +/-0.003 Degree

Perception System

Jump to...
  • Forward

    Accurate measurement range:0.5-16m
    Effective sensing speed:<10m/s
    FOV:Horizontal<40 Degree ,Vertical<30 Degree

  • Backward

    Accurate measurement range:0.5-18m
    Effective sensing speed:<12m/s
    FOV:Horizontal<40 Degree ,Vertical<30 Degree

  • Downward

    Accurate measurement range:0.5-20m
    Visual hovering range:0.5-40m
    FOV:Horizontal<40 Degree ,Vertical<30 Degree

  • Operating environment

    Forward, backward:
    Surface with clear pattern and adequate lighting(lux> 15)

    Downward:
    Surface with clear pattern and adequate lighting(lux> 15)
    Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

  • Sensor

    CMOS: 1/2"
    Effective pixels: 48MP
    Pixel size: 1.6microm x1.6microm¼Bin2¼

  • Lens

    FOV: 84 Degree
    Equivalent focal length: 24mm
    Aperture: f/2.8
    Focus range: 1m - Infinite
    Focus mode: fixed focus

  • Shooting mode

    Automatic mode (P gear): EV adjustable, ISO/Shutter automatic
    Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
    Shutter priority (S file): Shutter/EV adjustable, ISO automatic

  • ISO range

    Video:ISO100 - ISO3200
    Photo:ISO100 - ISO3200

  • Shutter speed

    Photo Mode:1/8000 - 8s
    Other:1/8000 - 1/frame rates

  • Portrait blur

    Real-time image transmission portrait blur and photo portrait blur

  • Defog mode

    Yes

  • Zoom Range

    Digital zoom:1 - 16 times

  • Photo format

    JPG / DNG / JPG+DNG

  • Photo resolution

    48MP: 8000x6000¼4:3¼
    12MP¼default¼: 4000x3000¼4:3¼
    4K:3840x2160¼16:9¼

  • Photo shooting mode

    Single shot
    Burst shooing: 3/5
    Auto exposure bracketing(AEB): 3/5 shots
    Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
    HDR imaging: 3840x2160

  • Video coding format

    H265/H264

  • Video resolution

    3840x2160 p30/25/24
    2720x1528 p30/25/24
    1920x1080 p60/50/48/30/25/24

  • Max bitrate

    100Mbps

  • Timelapse

    Original image:3840 x 2160¼JPG/DNG
    Video: 4K P25

  • Panorama

    Horizontal/Vertical/Wide-angle/Spherical
    Original image: 4000 x 3000, JPG/DNG

  • Supported file system

    Fat32, exFat

  • Video format

    MP4/MOV

  • Wi-Fi transfer

    20MB/s

Remote controllor and image transmission

Jump to...
  • Operating frequency

    2.400-2.4835GHz
    5.725-5.850GHz
    5.150-5.250GHz

  • Backward

    Accurate measurement range:0.5-18m
    Effective sensing speed:<12m/s
    FOV:Horizontal<40 Degree ,Vertical<30 Degree

  • Max transmission distance

    FCC:10km (unobstructed, free of interference)

  • Operating temperature

    32 Degree F - 104 Degree F (0 Degree C -40 Degree C)

  • Transmission power (EIRP)

    FCC:<=30dBm

  • Battery capacity

    3930mAh

  • Max battery life

    - 3.5h (when connected to a mobile phone)

  • Interface type

    Type C

  • Transmission system

    Autel SkyLink

  • Realtime transmission quality

    Transmission distance<1km:2.7K 30fps
    Transmission distance>1km:720P 30fps

  • Transmission bitrate

    90Mbps

  • Transmission delay

    <=200ms

Adapter

Jump to...
  • Input

    100-240V/50-60HZ

  • Output

    5V=3A,9V=A,12V=2.5A

  • Rated power

    30W

  • Mobile App

    Autel Sky

  • Mobile system required

    iOS 12.0 and above
    Android 8.0 and above

  • UPC Code

    889520012393

3 Accessories for Autel Robotics EVO Nano Premium Bundle, Orange

  • All Accessories (3)
  • Landing Gear (1)
  • Flash & Lighting (1)
  • Safety & Security Accessories (1)

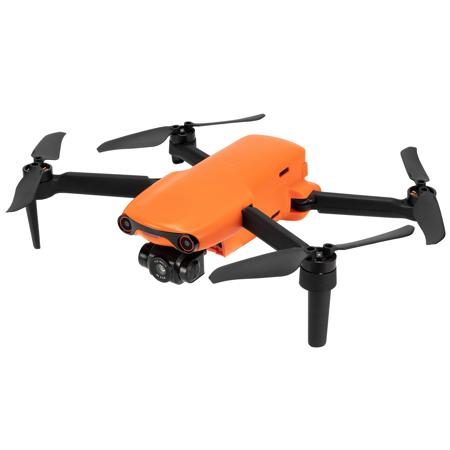

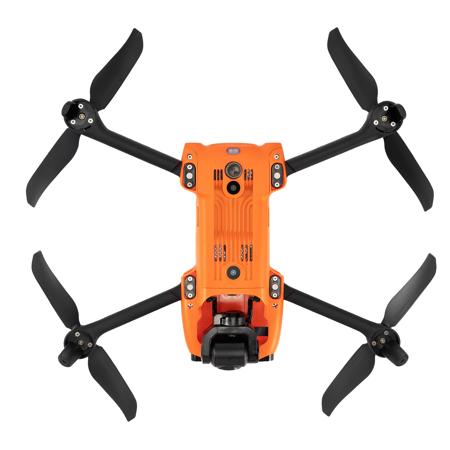

About Autel Robotics EVO Nano

Make Every Moment Matter

Super Sharp. Ultra Smooth.
The EVO Nano is equipped with a 48MP camera that can record ultra sharp 4K/30fps video. Paired with a three-axis mechanical gimbal to prevent vibration, the Nano provides everything you need to ensure your footage is smooth and stable no matter how rough the conditions.

• 1/2" CMOS
• 3-axis Gimbal

HDR: Darker Shadows. Brighter Highlights.
With HDR on, Nano Will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.

Add A Splash Of Color
Life is more than one color - and now so is your drone. Go boldly into the unknown with the classic Autel Orange.

Superlight. Ultracompact.
At only 249 grams, the EVO Nano weighs about as much as a smartphone and fits almost anywhere- from the side pocket of your hiking pack to the palm of your hand.

SkyPortrait: Your Personal Paparazzi
With the touch of a button, the Nano will rise into the air and snap a photo of you and your friends, automatically adjusting the lens so no one gets left out. Blur the background automatically for additional cinematic effect or dramatically reveal your epic destination - whether it's the top of a mountain or your own backyard.

Dynamic Track 2.1: Master Subject Tracking
Recruit your Nano to automatically follow any person, animal, or vehicle so you can focus on your activities while your Nano handles the cinematic side.

Cinematic Shots Proficiency With A Single Click
Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, allowing you to produce unforgettable results whether you're a veteran pilot or completely new to the drone game.

MovieMaster: Easy Movie Making And Sharing
The Autel Sky app provides you a suite of video templates for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can create share your creations on the spot!

• Easy Editing
• Imaginative Templates
• SuperDownload

SkyLink Video Transmission

Fly Free-More Range, Less Interference
Fly farther while maintaining crisp, clear visuals with the all new Autel SkyLink, our strongest image transmission system yet, which offers a transmission range of 6.2 miles, transmission quality of 2.7K/30FPS, and superior anti-interference capabilities, all while relaying stunning QHD video.

SuperDownload
Done shooting? Simply place your smartphone close to the Lite to download photos and videos at a speedy rate of 160Mbps(20MB/s) using the Autel Sky app.

SoundRecord: Bring Your Videos To Life
Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is far away or use it to narrate while filming for better editing workflow.

Fly Safe With Advanced Obstacle Avoidance
The EVO Nano series is the first and only aircraft series of its size to offer an advanced obstacle avoidance system - making it the obvious choice for users looking to avoid crashes and preserve the life of their aircraft. With three-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it. The EVO Nano series can easily brake to avoid collisions and navigate obstacles.

More Battery. More Time. More Creativity.
The EVO Nano can fly continuously for 28 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.

Autel Robotics EVO Nano Features

  • 1/2" CMOS 48MP
  • Aperture f/2.8
  • 4K/30fps Video
  • 28-Min Max Flight Time
  • 10km 2.7K Transmission
  • Forward + Backward + Downward Sensors

Product Documents

User Manual

Key Features

  • 1/2" CMOS 48MP
  • Aperture f/2.8
  • 4K/30fps Video
  • 28-Min Max Flight Time
  • 10km 2.7K Transmission
  • Forward + Backward + Downward Sensors

What's in the box:

  • Autel Robotics EVO Nano Aircraft (Orange)
  • 3x Total Flight Batteries
  • Flight Battery Charger
  • 5x Total Propellers (Pairs)
  • Propeller Holder
  • Flight Battery Charging Hub
  • Remote Controller
  • Remote Controller Charger
  • 8x Spare Screws
  • Screwdriver
  • Lightning Cable
  • Micro-USB Cable
  • USB-C Cable
  • Remote Controller Charging Cable
  • Gimbal Cover
  • Shoulder Bag
  • Autel Robotics 1 Year Limited Warranty
