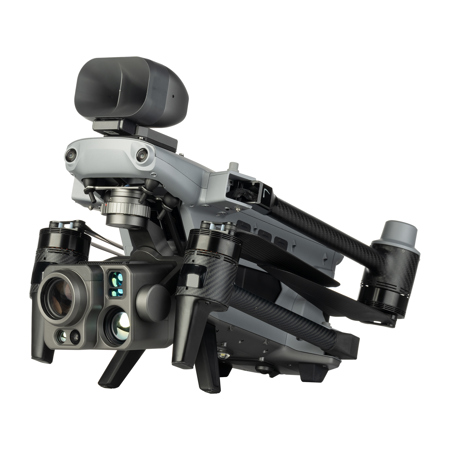

Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera

SKU: AR102002550 MFR: 102002550
Earn VIP Reward Points

Key Features

  • Capture stunning 48MP photos and 4K videos with the Autel Alpha's advanced camera system.
  • Enjoy extended flights with a 40-minute maximum flight time, perfect for detailed inspections.
  • Ensure stable footage with the 3-axis gimbal, even in challenging wind conditions up to 15m/s.
  • Navigate complex environments confidently using omnidirectional obstacle avoidance with radar.
  • Utilize the thermal camera for inspections, search & rescue, and agricultural analysis efficiently.
  • Experience precise GPS tracking for accurate data collection and reliable return-to-home functionality.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    with Remote Control

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    Thermal Camera, Camera Included

  • Kit Style

    with RC Controller

  • Model

    Autel Robotics Alpha

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    40 Minutes

  • Takeoff Weight

    13.98 lb / 6.34 kg (Takeoff)
    18.5 lb / 8.4 kg (Maximum for Takeoff)

  • Max Ascent/Decent Speed

    Ascent: 33.6 mph / 15 m/s
    Descent: 6.2 mph / 10 km/h

  • Max Horizontal Speed

    24m/s (windless near sea level)

  • Max Wind Speed Resistance

    15m/s

  • Max Takeoff Altitude

    2.8 Miles / 4500 m

  • Max Hovering Time

    38 minutes

  • Max Angular Velocity

    300°/s (Pitch)
    120°/s (Yaw)

  • Global Navigation Satellite System (GNSS

    GPS, GLONASS, BeiDou, Galileo

  • Hovering Accuracy Range

    Vertically:
    +/-0.1 m (when vision systems working normally)
    +/-0.3 m (when GNSS working normally)

    Horizontally:
    +/-0.15 m (when vision systems working normally)
    +/-0.3 m (when GNSS working normally)

  • IP Rating

    IP55

  • Camera Still Resolution

    48 MP

  • Video Resolution

    4K

  • Image Sensor

    DG-L35T: Wide Camera
    1/2 CMOS, Effective pixels: 48M

    DG-L35T: Zoom Camera
    1/1.8" CMOS

    DG-L35T: Thermal Camera (Wide)
    Uncooled VOx Microbolometer

    DG-L35T: Thermal Camera (Tele)
    Uncooled VOx Microbolometer

  • Lens

    DG-L35T: Wide Camera
    DFOV: 84 Degree Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m - Infinite

    DG-L35T: Zoom Camera
    FOV: 66.7-34.6 Degree Focal Length: 34.7-838mm Aperture: f/1.61-f/5.19

    DG-L35T: Thermal Camera (Wide)
    FOV:42 Degree Focal length: 13mm Aperture: f/1.2

    DG-L35T: Thermal Camera (Tele)
    FOV:12.3 Degree Focal length: 45mm Aperture: f/1.2

  • ISO Range

    DG-L35T: Wide Camera
    Photo: ISO100-ISO6400 Video: ISO100-ISO64000 (Night scene mode: up to ISO256000)

    DG-L35T: Zoom Camera
    Photo: ISO100-ISO6400 Video: ISO100-ISO64000 (Night scene mode: up to ISO320000)

  • Photo Format

    DG-L35T: Zoom Camera
    8bit JPG, 12bit DNG

  • Video Format

    DG-L35T: Zoom Camera
    MP4/MOV

  • Digital Zoom

    DG-L35T: Zoom Camera
    35-560 times

    DG-L35T: Thermal Camera (Tele)
    Wide Digital Zoom: 1-3.5 times Tele Digital Zoom: 3.5-56 times

  • Gimbal Option

    3-Axis Gimbal

  • Mechanical Range

    Yaw (Pan): 180° (-135 to 45°)
    Pitch (Tilt): 120° (-60 to 60°)
    Roll: 180° (-90 to 90°)

  • Controllable Range

    Yaw (Pan): 120° (-90 to 30°)

Sensing

Jump to...
  • Sensing Type

    Omnidirectional with Radar Enhancement

  • Forward

    Detection Range: 0.7 to 101.7' / 0.2 to 31 m
    Field of View: 90° (Vertical) / 90° (Horizontal)

  • Backward

    Detection Range: 0.7 to 101.7' / 0.2 to 31 m
    Field of View: 90° (Vertical) / 90° (Horizontal)

  • Lateral

    Detection Range: 0.7 to 147.6' / 0.2 to 45 m
    Field of View: 90° (Vertical) / 90° (Horizontal)

  • Upward

    Detection Range: 0.7 to 85.3' / 0.2 to 26 m
    Field of View: 90° (Front-to-Back) / 90° (Front-to-Back)

  • Downward

    Detection Range: 0.49 to 164.0' / 0.15 to 50 m
    Field of View: 90° (Front-to-Back) / 90° (Front-to-Back)

Video Transmission

Jump to...
  • Operating Frequency

    Remote Controller / Transmitter:
    0.9 GHz (902.000 to 928.000)
    2.4 GHz (2.400 to 2.4835)
    5.2 GHz (5.150 to 5.250)
    5.8 GHz (5.725 to 5.850)

  • Transmitter Power (EIRP)

    Remote Controller / Transmitter:
    0.9 G: 30 dBm (FCC)
    2.4 G: 30 dBm (FCC), 20 dBm (CE, SRRC)
    5.1 G: 21 dBm (FCC)
    5.8 G: 14 dBm (CE), 30 dBm (FCC), 33 dBm (SRRC)

Battery

Jump to...
  • Capacity

    Remote Controller / Transmitter:
    5800 mAh

    Flight Battery:
    10,000 mAh

  • Voltage

    23.7 V

  • Battery Material

    Lithium ion

  • Energy

    237 Wh

  • Battery Quantity

    2

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Operating Temperature

    Aircraft:
    -4 to 122°F / -20 to 50°C

    Remote Controller / Transmitter:
    32 to 113°F / 0 to 45°C

Physical

Jump to...
  • Dimensions

    46.6 x 37 x 10.31" (1185 x 942 x 262mm) (Unfolded, incl. propellers)
    31 x 21.6 x 10" (788 x 551 x 255mm) (Unfolded, excl. propellers)
    17.8 x 10.3 x 9.6" (453 x 262 x 245mm (Folded, excl. propellers)

  • Weight

    13.44 lbs (6.1kg) (Battery and gimbal included)

  • UPC Code

    889520209359

Models
Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera
$19,289.00

In Stock

Autel Robotics EVO MAX 4N 4K Night Vision Drone with Smart Controller V3
$12,599.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Autel Robotics EVO II DUAL 640T V2 Standard Rugged Bundle
$5,999.00

In Stock

FeaturesCamera Included, Thermal CameraCamera Included, IP Rated, Night VisionCamera Included, Thermal Camera
Kit Stylewith RC ControllerBaseBase
ConfigurationDrone with CameraDrone with CameraDrone with Camera
Editionwith Remote ControlWith Smart Controller-
Video Resolution4K4K4K
Camera Still Resolution48 MP2 MP, 50 MP48 MP
Maximum Flight Time40 min.42 min.40 min.
FAA Registration (Non-Commercial Usage)RequiredRequiredRequired

About Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera

Become a master of aerial surveillance and inspection with the Autel Alpha Industrial Drone, a multi-functional powerhouse that revolutionizes the drone industry. This intelligent drone is designed to enhance Autel's autonomous flight capabilities, anti-interference features, obstacle avoidance systems, transmission technology, and battery systems, delivering an impressive performance in any flight scenario.

The Autel Alpha's IP55 rated foldable design is built to withstand challenging environments, making it a reliable choice for outdoor operations. Its built-in RTK dual-antenna system guarantees precision control within millimeters, ensuring accuracy in every flight.

The drone comes equipped with the flagship Autel DG-L35T gimbal, a versatile tool that integrates a 560x super hybrid zoom camera, dual thermal imaging cameras, an ultra-sensitive straight night vision camera, and a laser rangefinder into a single unit. This comprehensive solution is perfect for public safety, energy inspection, and emergency management tasks.

The Autel Alpha Industrial Drone features RF Anti-jamming, GNSS Anti-jamming & Anti-spoofing, Non-GNSS Visual Positioning, A-Mesh Network, Dual Thermal Camera, 4K 35X Optical Zoom, Weather Rating IP55, Hot-swappable Battery, 720 Degree Omnidirectional Obstacle Avoidance, and a 12.4 Miles Transmission Range. These features make it a robust and reliable tool for a variety of applications.

The drone's payload includes dual thermal imaging cameras (short/long focal length), a 4K 35x night vision Zoom camera, a wide-angle camera, and a laser rangefinder, providing full-spectrum target monitoring and efficient support for long-range reconnaissance scenarios.

The Autel Alpha's exceptional anti-interference capability utilizes adaptive frequency-hopping technology across multiple frequency bands to resist radio frequency interference. It also includes GNSS visual navigation capability and a variety of breakthrough anti-drone systems.

With integrated A-Mesh networking technology, the drone can establish networks between drones and controllers, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control." This feature enables multi-device networking, allowing drone-to-drone autonomous communication, connection, and collaboration, even in scenarios with long distances and obstacles.

The Autel Alpha's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It offers various obstacle avoidance capabilities, including return-to-home, manual control, and mission planning, providing a more professional solution for industries such as security, inspection, and surveying.

By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision +6-direction millimeter-wave radar, the drone is equipped with 720 Degree omnidirectional perception and obstacle avoidance capabilities. It can detect minor obstacles like glass, poles, and power lines, and supports nighttime obstacle avoidance for flight safety. Experience the future of drone technology with the Autel Alpha Industrial Drone.

Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera Features

  • 4K 35x Optical Zoom
  • Anti-GPS Interference and Spoofing
  • Anti-Image Transmission Interference
  • 12.4 Miles Image transmission
  • Dual Thermal Camera
  • Hot-swappable Battery
  • IP55 Protection level

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning 48MP photos and 4K videos with the Autel Alpha's advanced camera system.
  • Enjoy extended flights with a 40-minute maximum flight time, perfect for detailed inspections.
  • Ensure stable footage with the 3-axis gimbal, even in challenging wind conditions up to 15m/s.
  • Navigate complex environments confidently using omnidirectional obstacle avoidance with radar.
  • Utilize the thermal camera for inspections, search & rescue, and agricultural analysis efficiently.
  • Experience precise GPS tracking for accurate data collection and reliable return-to-home functionality.

What's in the box:

  • Autel Robotics Alpha Industrial Drone
  • DG-L35T Gimbal Camera
  • 6x Dampener
  • Gimbal Protective Cover
  • Lens Cleaner
  • Soft Brush
  • Dust Blower
  • 2x Gimbal Interface Cover
  • 2x Smart Battery
  • EF9-3 Remote Controller
  • Battery Charger
  • AC Power Cable
  • Remote Controller Charger
  • USB-C to USB-C Data Cable
  • USB-C to USB-A Data Cable
  • (See Specification Section for Additional Included Items)
  • Autel Robotics 1 Year Limited Warranty
