Arturia MicroBrute Analog Synthesizer Specifications

  • Keyboard

    25-note minikey

  • Synthesizer Type

    Analog monophonic synthesizer

  • Polyphony

    Monophonic

  • Filter

    Steiner-Parker 2-pole multi-mode filter (low pass, band pass, high pass)
    Brute factor control

  • Oscillator Type

    Analog voltage controlled oscillator

  • Oscillator Mixer

    Overtone sub/5th generator, sawtooth, square, triangle, audio in (on rear panel)

  • Oscillation Mode

    Pulse width modulation, Ultrasaw, Metalizer

  • LFO

    LFO with 3 waveforms (sine, sawtooth, square), clock syncable to arpeggiator (arpeg, or free)

  • Envelope Control

    ADSR envelope generator

  • Keyboard Tracking

    Yes, on VCF cutoff

  • Mod Wheel

    Yes, assignable to cutoff, or LFO amount

  • Pitch Wheel

    Yes, with selectable bend range via software

  • Octave Selector

    Yes, from -2 to +2 octaves

  • Analog Audio Input

    1/4" analog audio input

  • Analog Audio Output

    1/4" audio output

  • CV In/Out Controls

    CV in jacks: pitch, filter, sub-harmonics, pulse width, metalizer, saw animator
    CV out jacks: pitch, envelope, LFO

  • MIDI

    MIDI in with 5-pin DIN connector
    USB MIDI in/out

  • Sequencer

    8 memories
    Up to 64 steps per memory
    Tap tempo
    Rate control
    Step divisions (via software)
    Trigger modes (via software)

  • MIDI Sync

    Yes

  • Construction

    Steel bottom panel

  • Power

    12V DC 1A power supply

  • Dimensions

    12.8 x 8.7 x 2.4" (325 x 221 x 60 mm)

  • Weight

    3.86lbs (1.75 kg)

  • UPC Code

    3760033530727

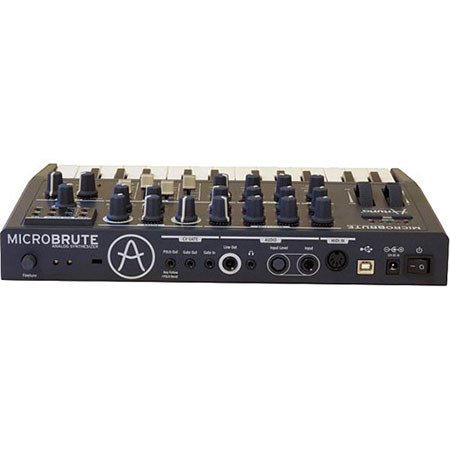

About Arturia MicroBrute Analog Synthesizer

The Arturia MicroBrute Analog Synthesizer is new but carries the award-winning heritage of its big brother, the MiniBrute. The MicroBrute was designed to be small but still retain an amazing sound quality. With a 100% pure analog voice path and advanced interconnectablity via MIDI, USB, CV/GATE, this machine is a true powerhouse synthesizer that takes your sound to a new level.

A synthesizer is a musical instrument that is meant to be played. However, playing a synthesizer is more than just playing some notes on a keyboard and recalling someone else's presets. If that was the goal you could be looking at accordions or going to a department store to buy your keyboard (along with socks, milk and toilet paper)?but you aren't because you are more creative than that.

No presets, no menus, nothing to get between you and the ability to sculpt your sound live. Not only does MicroBrute give you the means to create, perform and be completely original every time you power up, it does so with astounding sound quality.

VCO
The VCO on the MicroBrute is unique in the synthesizer world. It features the ability to mix waveforms in variable amounts as opposed to simple ON/OFF switches that are found on many synths at four times the price. The sound possibilities don't stop there. Each waveform has wave modifiers that allow even further tonal variations. While many synths need two or three oscillators to get a somewhat big sound, the MicroBrute is able to achieve a much wider tonal range with its one oscillator.

Overnote
The new OVERTONE sub allows for the typical -1 octave square wave that thickens up the bottom end but goes beyond this with the Overtone control. The Overtone control allows you to bring in more complex harmonics that when turned all the way up result in the oscillator changing pitch to a 5th above the root. This allows for some classic sounding leads and fatter basses. This control can even be modulated with the ENVELOPE or LFO via the mod matrix which creates some amazing new sounds never heard from a synth oscillator before.

Ultrasaw
The Ultrasaw builds two phase-shifted copies of the basic sawtooth signal. This effect, when turned up, gives you a slight thickening of the sound as it duplicates the sound of two saw oscillators close to the same pitch. You can then use the MOD MATRIX to route the LFO to the SAW which will add a third saw sound and allow to simulate a wider detuning effect. This one saw wave can now sound like a three oscillator synth by itself.

Metalizer
The Metalizer takes the basic triangular waveform and "warps/folds" it to create very complex jagged waveforms that are rich in high harmonics. This results in a hard sync sweep type of sound that is perfect for hardcore bass sounds or tearing leads. The ENVELOPE has a default routing to this parameter via the MOD MATRIX. Just turn up the ENVELOPE amount control, adjust your envelope to an interesting setting and you will hear the effect take hold.

Modulation Beast
The MicroBrute comes with a full featured LFO and a standard ADSR type Envelope. The routing of these modulation sources are configured in the MOD MATRIX. No other synth in this price range allows for this kind of flexibility. The MOD MATRIX allows you to control many aspects of the voice for different internal sources as well as opening the door to controlling them by external synths and modules.

Steiner-Parker Filter
MicroBrute embeds the legendary Steiner-Parker multimode filter. Introduced for the first time in the Synthacon synthesizer, back in the 70's, this marvellous filter not only gives you a Lowpass mode like most other synths, but also Bandpass and High-pass, making it a highly versatile and praised boutique filter. The MicroBrute filter is based on the core of the legendary Steiner-Parker multimode filter and has been improved to deliver an even wider range of cutoff and resonance. Nyle Steiner himself has validated and approved these improvements.

Brute Factor
The Brute Factor was inspired by a patch made on a famous vintage synthesizer. User would connect the headphone output to the external audio input resulting in a kind of feedback loop that is ideal for raspy and grungy sounds. This patch has been adapted and implemented internally first in the MiniBrute and now in the MicroBrute. With low Brute Factor settings, you will hear a gradual depth and roundness to the bottom end. When turned up above about 65% however, the MicroBrute can go berserk and produce barely controllable, crazy feedback sounds.

Audio Processor
MicroBrute is more than a synthesizer. It allows a return to audio experimentation by giving you the ability to process external sounds though it. The MicroBrute has an audio input with a pop-up trim pot for level controls on the rear panel. This will allow you to process any other sounds like voice, guitar or other synths through the MicroBrute's filter, Brute Factor and final output stages.

Step Sequencer
The step sequencer allows for eight different sequences. These sequences can have up to 64 steps each and are stored in internal memory so that when you power down, they are retained. You input the notes that you want one at a time and can insert rests using the TAP TEMPO button to create rhythmic patterns. Once you have your sequences, you can choose between many different ways to trigger and play your sequences.

Battery
Sound quality was key. Using high current parts with larger voltage rails to get real sound means that more power is required. This is why so many battery powered synths sound like toys and not like speaker destroying monsters of sound.

What's in the box:

  • Arturia MicroBrute Analog Synthesizer
  • User Manual
  • Preset Sheets
  • Power Supply
  • 2x Mini Jack Patch Cords
  • Arturia 1 Year Limited Warranty
