ARRI SkyPanel X21 800W RGBACL Modular Soft LED Light Panel, Blue

SKU: ARL10048487 MFR: L1.0048487
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with this SkyPanel X21 LED light panel, perfect for professional shoots.
  • This ARRI SkyPanel offers brightness control from 1500K to 20000K, creating the perfect ambiance.
  • The modular design of this LED lighting panel allows for easy expansion and customization.
  • Enjoy power efficiency with an 800W draw, while still getting maximum output for your photography.
  • Built for durability, this ARRI LED panel features IP66 rating, ready for challenging conditions.
  • Multiple mounting options make this LED light panel versatile for studio or on-location setups.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ARRI SKYPANEL X21 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    5600K:
    1543 fc / 16,602 Lux at 3.3' / 1 m
    171 fc / 1839 Lux at 9.8' / 3 m
    43 fc / 462 Lux at 19.6' / 6 m
    15 fc / 161 Lux at 32.8' / 10 m
    3200K:
    1458 fc / 15,688 Lux at 3.3' / 1 m
    162 fc / 1743 Lux at 9.8' / 3 m
    40 fc / 430 Lux at 19.6' / 6 m
    15 fc / 161 Lux at 32.8' / 10 m
    5600K:
    1263 fc / 13,589 Lux at 3.3' / 1 m (with Filter)
    140 fc / 1506 Lux at 9.8' / 3 m (with Filter)
    35 fc / 376 Lux at 19.6' / 6 m (with Filter)
    13 fc / 139 Lux at 32.8' / 10 m (w

  • Color Accuracy Standard

    CRI 99
    TLCI 93

  • Color Temperature

    1500 to 20000K

  • Color Temperature Range

    1500 to 20,000K

  • Display

    Yes

  • Beam Angle

    120° Unmodified
    106° with Included Diffuser

  • Built-In Flash

    No

  • Cooling System

    Passive + Active cooling system with double heat sink

  • Dimming

    DMX / RDM (Continuous): 0 to 100%

  • Water Resistance/IP Rating

    Dust/Water-Resistant (IP66)

Connectivity

Jump to...
  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ARRI LiCo
    Functionality: Remote Control

Battery

Jump to...
  • Battery Connection

    DC Powerpack Jack Included

  • Battery

    1x Battery Power Station, 48 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    800W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    48 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 1.1" / 28 mm Unthreaded Hole (Via Yoke Mount)
    Proprietary

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    29 x 13"

  • Dimensions

    Fixture only: 29.1 x 13.3 x 6.1" (738 x 339 x 154mm)
    Dome: 28 x 2.8 x 12.7" (711 x 70 x 323mm)

  • Weight

    Fixture only: 33 lbs (15kg) (Approx.)
    With Yoke Man: 39.7 lbs (18kg) (Approx.)
    Dome: 1.3 lbs (600g) (Approx.)

9 Accessories for ARRI SkyPanel X21 800W RGBACL Modular Soft LED Light Panel, Blue

  • All Accessories (9)
  • Light Stands (1)
  • Light And Light Accessories (1)
  • Snoots (1)
  • Clamps (1)
  • Dome (1)
  • Wireless and Wired Systems (1)
  • Softbox (1)
  • Brackets & Mounts (1)
  • Cable Management (1)

About ARRI SKYPANEL X21

SkyPanel X - Reach beyond the Sky

SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and color science, but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum color engine; wireless CRMX control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.

The all-weather SkyPanel X

The SkyPanel X is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

ARL10048487

Soft light

  • High lumen output
  • Flicker-free low end dimming from 100% -0% for close-ups
  • Adaptable for traditional SkyPanel techniques and the new X21 Dome
  • Create 8-pixel patterns for effects
  • Efficient and simplified workflow for quick and easy set up
ARL10048487

Hard light

  • Optimal rounded beam with maximum punch and quality
  • Create a long throw fixture with high-performance optic
  • Unique pixel looks
  • Ideal on a cherry picker, through windows, or bounced
ARL10048487

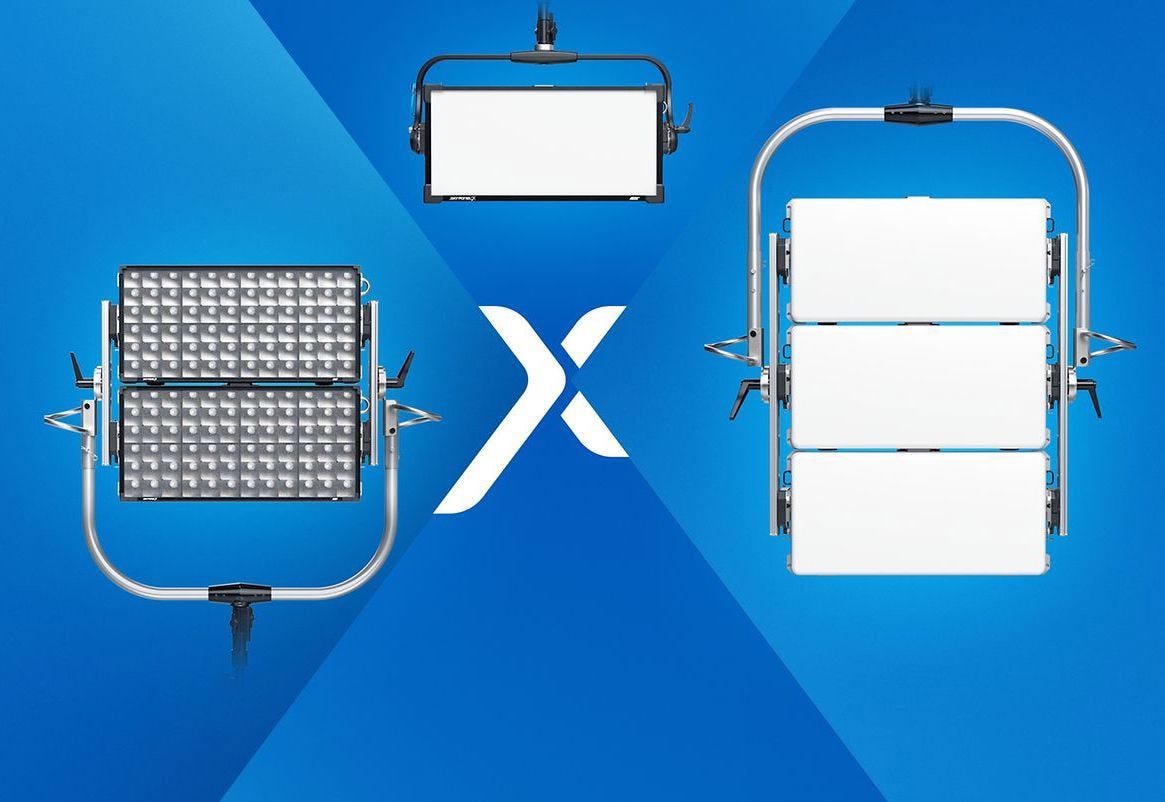

Modular experience

  • Upgrade your lighting setup easily with modular SkyPanel X units
  • Get reliable power supply through one single power cable
  • Benefit from tool-less frames with quick-lock system
  • Maximum control capabilities in only one DMX profile
ARL10048487

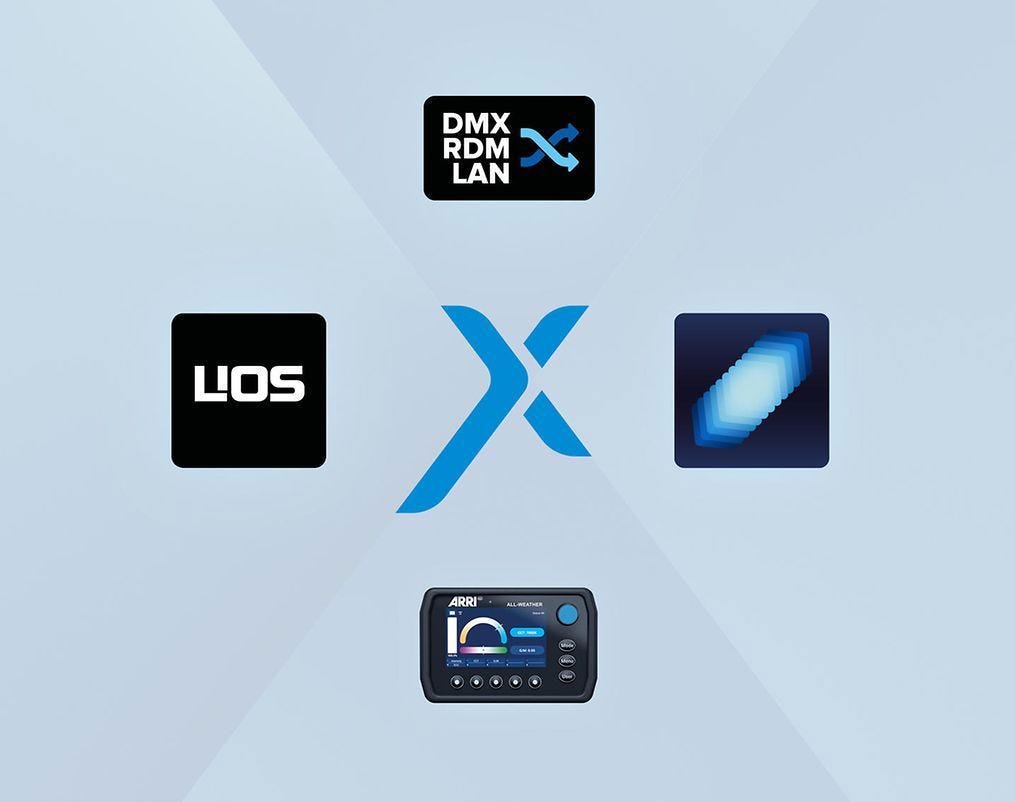

Control options

Explore the multiple control options for SkyPanel X, including the robust ALL-WEATHER Control Panel, ARRI's new LiCo App for bluetooth control, LumenRadio's wireless integration, and much more!

ARL10048487

A wide range of SkyPanel X applications

Explore modular panel lighting with SkyPanel X. Whether you are a gaffer, DP, programmer, lighting technician or lighting designer, find the perfect configuration for your needs with our flexible solution.

ARL10048487

X21 Dome

Fast, beautiful, native soft light.

ARL10048487

Close-to-talent lighting

  • Great dimming curve and color
  • As quiet as the S60-C
  • Perfect soft wrap
  • Flexible control options with built-in wireless
  • Easy tweaking of softbox and diffusion frame

SkyPanel X21 Features

  • SkyPanel X21 800W RGBACL Modular LED Light Panel
  • LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
  • IP66 all-weather professional lighting solution
  • Excelling in color rendition, dimming, and beam quality
  • Dynamic CCT range of 1,500 K - 20,000 K
  • RGBACL full-spectrum color engine
  • 8 pixels for X21
  • Integrated PSU and built-in wireless control

X21 Dome Features

  • Hot-swappable diffuser
  • Included with each SkyPanel X lamphead
  • Most efficient, brilliant, and uniform soft lighting when directly over LEDs
  • Interchangeable with modifiers

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with this SkyPanel X21 LED light panel, perfect for professional shoots.
  • This ARRI SkyPanel offers brightness control from 1500K to 20000K, creating the perfect ambiance.
  • The modular design of this LED lighting panel allows for easy expansion and customization.
  • Enjoy power efficiency with an 800W draw, while still getting maximum output for your photography.
  • Built for durability, this ARRI LED panel features IP66 rating, ready for challenging conditions.
  • Multiple mounting options make this LED light panel versatile for studio or on-location setups.

What's in the box:

  • ARRI SkyPanel X 800W RGBACL Modular Soft LED Light Panel
  • X21 Dome
  • AC Power Supply (Integrated)
  • ARRI 3 Year Limited Warranty
