Armasight by FLIR CO-LR-LRF 2nd Gen Improved Definition MG Night Vision Long Range Clip-On, Matte Black

SKU: ARLRF0129DI1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Armasight by FLIR CO-LR-LRF Specifications

  • IIT Generation

    Gen 2+ ID (Improved Definition) MG

  • Resolution

    47-54 lp/mm

  • Magnification

    1x (recommended to use with up to 12x day time optics)

  • Photocathode Type

    Multi-Alkali

  • Lens System

    F/1.54; 108 mm

  • Field of View

    9 deg.

  • Focus Range

    25m to Infinity

  • Exit Pupil Diameter

    50 mm

  • Remote Control

    Wireless

  • Manual Gain Control

    Yes

  • Bright Light Cut-off

    Yes

  • Low Battery Indicator

    Yes (in FOV)

  • Infrared Illuminator

    XLR-IR850 Detachable Long-Range

  • Power Supply

    CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)

  • Battery Life

    Up to 60 hours

  • Operating Temperature

    -40 to 50 deg. C (-40 to 122 deg. F)

  • Storage Temperature

    -50 to 70 deg. C (-58 to 158 deg. F)

  • Height of the Scope Axis

    40mm (1.57") - above Rail

  • Dimensions

    Overall: 12.0 x 4.0 x 3.7" (30.48 x 10.16 x 9.40cm)

  • Weight

    2.86 lbs (1.30kg) (without Mount and Remote Control)

  • UPC Code

    849815007565

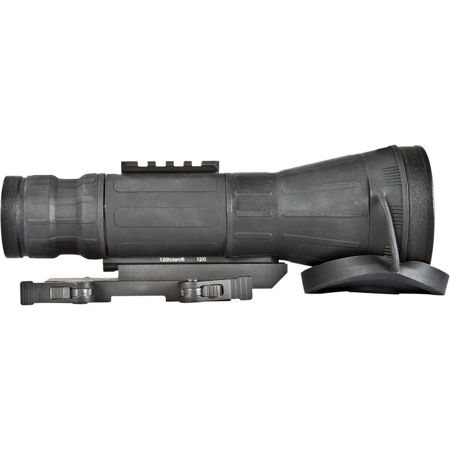

About Armasight by FLIR CO-LR-LRF

The Armasight by FLIR CO-LR LRF (Clip On - Long Range) is a night vision unit that mounts in front of any existing day scope, converting the scope into a night vision-capable device with a viewing range of up to 1000 yards. Suitable for use with most commercial and military specification daytime scopes (up to 12X magnification), the CO-LR LRF can be mounted/dismounted on any standard Picatinny rail in seconds, with no special tools required. Because the CO-LR LRF can be mounted to an existing day scope, no re-zeroing is required. The CO-LR LRF allows the user to maintain consistent positioning and shooting accuracy, all while using a completely familiar day scope.

The Armasight by FLIR CO-LR LRF is intended primarily for use by the most demanding hunter or long-range target shooter, but with a build quality that makes it capable of much more. The CO-LR LRF housing is designed to take just about anything the great outdoors can throw at it. The CO-LR LRF is packed with innovative features like variable gain control, bright light shut-off and a wireless remote control. This night vision clip-on is designed to make long-range night shooting just as easy and accurate as daytime shooting in the same terrain.

The Armasight by FLIR CO-LR LRF can be equipped with high-performance, Gen 2+ and Gen 3 variant image intensifier tubes, using Green phosphor or Armasight's "Quick Silver" and "Ghost" filters. These provide users with natural B&W night vision images. The Armasight by FLIR CO-LR LRF can be used with an Advanced Modular Range-Finder (AMRF2200). The AMRF2200 is designed to determine the exact distance between the observer and the target and works with any NV Clip-On system that includes an LRF option. Measurements are displayed on the range-finders indicators and in the FOV of any connected NV device. The AMRF is a pulsed laser range-finder, which uses a laser beam to measure distance. This semiconductor laser emits a wavelength of 905 nm. The range-finder allows you to measure distances of objects between 5-2000 meters away. With a rugged, lightweight composite housing, it is shock-resistant. An adjustable lever-cam clamping device ensures quick, easy and reliable mounting and disassembly.

Armasight by FLIR CO-LR-LRF Features

  • Simple and quick conversion of a day scope to night vision device
  • Mounts in front of riflescope with no re-zeroing required
  • Precise (1m resolution) laser range finder capability
  • Equipped with wireless remote control
  • Variable gain control
  • Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
  • Low battery indicator
  • Quick-release mount
  • Bright light cut-off system
  • Used with Advanced Modular Range-Finder
  • Limited two-year warranty

What's in the box:

  • Armasight by FLIR CO-LR-LRF 2nd Gen Improved Definition MG Night Vision Long Range Clip-On
  • #94 AWReC (Advanced Wireless Remote Control)
  • Picatinny Adapter for AWReC
  • Light-Suppressor
  • Adjustment-Control-Device
  • ARMASIGHT by FLIR XLR-IR850 Detachable X-Long Range Infrared Illuminator
  • Soft Carrying Case
  • Battery
  • Battery Adapter for CR123
  • Lens Tissue
  • Special Wrench
  • QR Picatinny Mount
  • Instruction Manual
  • Armasight by FLIR 2 Year Limited Warranty
