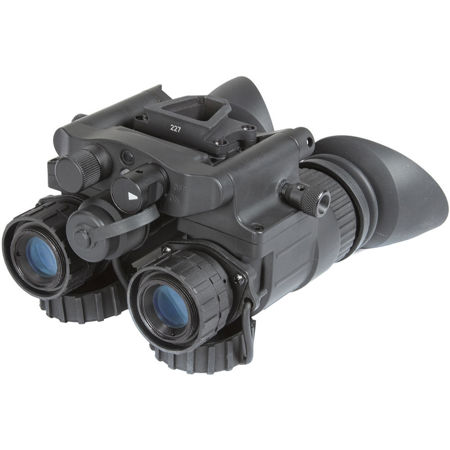

Armasight by FLIR BNVD-40 3G 3rd-Generation Compact Dual-Tube Night Vision Binocular, Matte Black

SKU: ARN15M4G9DA1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Armasight by FLIR BNVD-40 Specifications

  • IIT Generation

    Gen 3: "Ghost" White Phosphor

  • Magnification

    1x Standard (3x Optional)

  • Photocathode Type

    Multi-Alkali

  • Lens System

    F/1.3; 27 mm

  • Field of View

    40 Degree

  • Focus Range

    0.25m to Infinity

  • Eye Relief

    25 mm

  • Diopter Adjustment

    -6 to +2 dpt

  • Manual Gain Control

    Yes

  • Bright Light Cut-off

    Yes

  • Automatic Shut-off System

    Yes

  • Infrared Illuminator

    Yes (built-in with pivotal flood lens)

  • IR Indicator

    Yes (in FOV)

  • Low Battery Indicator

    Yes (in FOV)

  • Power Supply

    One AA (1.5 V) or 123A (3 V)

  • Battery Life

    Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20 Degree C

  • Operating Temperature

    -40 Degree C to +50 Degree C (-40 Degree F to +122 Degree F)

  • Storage Temperature

    -50 Degree C to +50 Degree C (-58 Degree F to +122 Degree F)

  • Dimensions

    Overall: 6.6 x 5.0 x 3.1" (167 x 128 x 80mm)
    Without Eyecup & Lens Cap: 4.5 x 4.6 x 2.9" (115 x 118 x 74mm)

  • Weight

    1.42 lb (0.64kg)

  • UPC Code

    849815009323

About Armasight by FLIR BNVD-40

The Armasight by FLIR BNVD is a dual-channel night vision system. With a 40 Degree field of view (FOV), it provides a large visual field without needing to move the binoculars.

The BNVD uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the BNVD can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

Features

Exceptional Vision
True Stereoscopic Vision and Built-in Infrared Illuminator

• Dual tube design provides increased depth perception and outstanding clarity.
• Built-in IR illuminator enhances night vision and allows for reading in the dark.

Compact and Rugged
Perfect Balance of Size and Performance

• Built with a tough, ergonomic composite housing that is water and fog resistant.
• Needing only a single AA battery or one CR123 battery for convenient operation, can run up to 20 hours. An optional battery pack mounted behind the helmet extends the use up to 80 hours.

Flexible Mounting Options
Packed with Features for a Versatile and Customizable Viewing Experience

• For hands-free operation, the BNVD includes head and helmet mounting options, it can be used as binoculars, as a monocular, goggles or stowed out of the way.
• Operated by a single gain control knob, the BNVD utilizes features like a flip-up-turn-off, and a flip-down-turn-back-on option when mounted to a helmet.

Armasight by FLIR BNVD-40 Features

  • Exceptional Vision
  • Compact and Rugged
  • Flexible Mounting Options

Key Features

  • Exceptional Vision
  • Compact and Rugged
  • Flexible Mounting Options

What's in the box:

  • BNVD-40 3G 3rd-Generation Compact Dual-Tube Night Vision Binocular
  • Headgear Interface Shoe
  • Bayonet/Horn Interface Shoe
  • CR-123A Battery
  • 2x Sacrificial Windows
  • 2x Demist Shields
  • Soft Carrying Case
  • Lens Cloth
  • Armasight by FLIR 2 Year Limited Warranty
