New Arrival

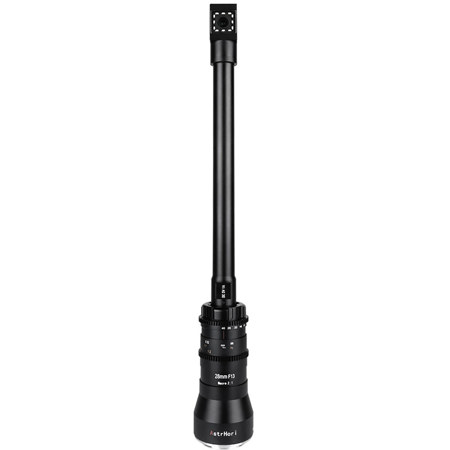

AstrHori 28mm f/13 2x Macro Probe Lens w/Built-In Ring Light, PL Mount 0 Degree Direct & 90 Degree View

SKU: AS28F13SAPL MFR: 28F13SGB-PL
Earn VIP Reward Points

Key Features

  • Capture stunning close-ups with 2x macro magnification, revealing intricate details in your digital cinema.
  • Illuminate your subjects perfectly with the built-in ring light, ensuring exceptional image quality every time.
  • Achieve versatile shots with interchangeable 0-degree direct and 90-degree view lens modules for creative angles.
  • Experience broad perspectives with a 28mm focal length and a 75-degree field of view for immersive storytelling.
  • Enjoy robust and reliable performance with a durable design, ideal for demanding production environments.
  • Fine-tune your depth of field with an aperture range of f/13-f/40, perfect for cinematic precision.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

AstrHori 28mm f/13 2x Macro Probe Lens w/Built-In Ring Light, PL Mount Specifications

  • Color

    Black

  • Compatibility

    PL mount

  • Available Lens Modules

    0 Degree Direct View, 90 Degree View, 0 Degree Direct & 90 Degree View

  • Focal length

    28mm

  • Aperture range

    f/13-f/40

  • Field of view

    75 Degree

  • Lens structure

    21 elements in 16 groups

  • Diaphragm blade

    7 pieces

  • The closest working distance

    8mm (the distance from the object to the 1st lens)

  • The closest shooting distance

    1.6' (480mm) (object to imaging distance)

  • Frame size

    Full-Frame

  • Maximum magnification

    2:1

  • Image Stabilization

    No

  • Dimensions

    Lens: 2.4 x 5.51" (60 x 140mm)
    0 Degree Direct View Tube: 0.9 x 13.07" (23 x 332mm)
    90 Degree View Tube: 1.18 x 13.38" (30 x 340mm)

  • Weight

    With 0 Degree Direct View Tube: 24.62 oz (698g)
    90 Degree View Tube: 26.8 oz (760g)

  • UPC Code

    6974662630780

About AstrHori 28mm f/13 2x Macro Probe Lens w/Built-In Ring Light, PL Mount

The Unique AstrHori 28mm F13 macro probe lens design offers a greater-sized 2:1 maximum magnification along with a minimum focusing distance of 0.48m. The long probe lens barrel can produce a bug-eye perspective and, even with the short working distance, the length of the lens barrel places the camera at a comfortable shooting distance.

Detachable structure design More portable and easy to carry
Metal structure Drop-resistant and durable Smooth to the touch.

Waterproof Front Part
The front 25cm of the lens is waterproof, which can go deep into the water to meet more scene shooting.

Special Slender Body
It can penetrate into places that are difficult to reach with some regular macro lenses, such as animal caves, long and narrow gaps, etc.

Sapphire Lens Materials
The front lens is made of sapphire material, with high hardness, wear resistance, not easy to scratch, waterproof, dustproof, and it not limited by the environment, providing stable and reliable shooting.

2:1 Macro Magnification Ratio
Never miss the wonderfulness of the microscopic world. AstrHori 28mm F13 macro lens with 2:1 magnification, you can observe the world from a novel perspective and experience the amazing microscopic world.

Specialized USB Type-C
The specialized USB Type-C (5v,1A) power supply cable improves the tensile strength, and the shells of two ends are made of metal. The combination of the two greatly improved the service life.

Professional Commercial Creation
The special shape with special visual effects and brings more possibilities for creation.

Detachable special lens
The lens body is slender and has a special structure, which can penetrate into places that are difficult to reach with ordinary macro lenses, such as some animal caves, underwater, narrow and long gaps, etc.

Sophisticated Waterproof Design
The front 25cm of the lens adopts water-proof treatment, with good waterproof performance, and its sapphire glass is anti-fragile and scratch-resistant, allowing you photograph underwater or other special environments without worry.

Macro 2x magnification
There is also a large depth of field in macro shooting, so that the details of the macro and the background are well integrated and presented to achieve special visual effects.

Waterproof LED Light
The front of the lens is equipped with an LED fill light. And the light adopts lamp beads imported from Japan. It can emit enough and uniform light source under the standard USB power supply. It is neutral light, and the brightness can be adjusted in ten levels, It can restore the actual color of the object very well.

90-degree angle of view Unlock more possibilities
90-degree angle of view can achieve 4 shooting angles Meets diverse shooting needs

AstrHori 28mm f/13 2x Macro Probe Lens w/Built-In Ring Light, PL Mount Features

  • The lens body adopts metal design, detachable structure, which is more portable to carry
  • The front part of lens built-in LED fill light with a color temperature of 5000k and a power of 5W, use with USB cable and power bank
  • The front lens is made of sapphire material, with high hardness, wear resistance, waterproof, dustproof, and not easy to scratch, etc
  • With brightness adjustment switch, 10 levels of brightness can be adjusted through the switch to meet the needs of various brightness

Key Features

  • Capture stunning close-ups with 2x macro magnification, revealing intricate details in your digital cinema.
  • Illuminate your subjects perfectly with the built-in ring light, ensuring exceptional image quality every time.
  • Achieve versatile shots with interchangeable 0-degree direct and 90-degree view lens modules for creative angles.
  • Experience broad perspectives with a 28mm focal length and a 75-degree field of view for immersive storytelling.
  • Enjoy robust and reliable performance with a durable design, ideal for demanding production environments.
  • Fine-tune your depth of field with an aperture range of f/13-f/40, perfect for cinematic precision.

What's in the box:

  • AstrHori 28mm f/13 2x Macro Probe Lens with Built-In Ring Light (PL Mount)
  • USB-C Cable
  • 3x Lens End Cover
  • Lens Cap
  • Case
  • AstrHori 1 Year Limited Warranty
