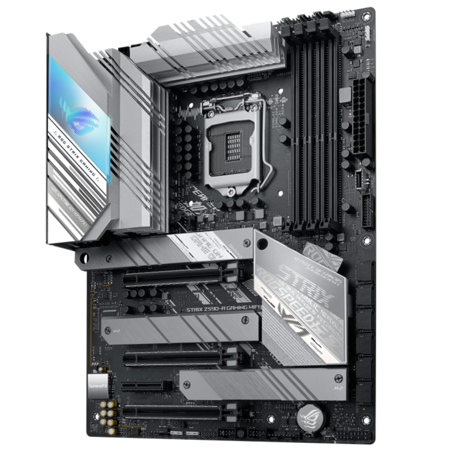

ASUS ROG Strix Z590-A Gaming WiFi 6 LGA 1200 ATX White Scheme Gaming Motherboard

SKU: AS90MB1660M0

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?WARREN D : new build

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ASUS ROG Strix Z590-A Gaming Specifications

  • CPU

    Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Intel Z590 Chipset

  • Memory

    Memory Channels: 4DDR4 (Dual channel)
    Max Memory Size:
    128GB DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II

  • Graphics

    1x DisplayPort 1.4
    1x HDMI 2.0

  • Expansion Slots

    Intel 11th &10th Gen Processors
    3x PCIe 4.0/3.0 x16 slot(s), Intel 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s), Intel 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s), Intel Z590 Chipset
    1 x PCIe 3.0 x4 slot

  • Storage

    Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

    Intel11th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110, Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

    Intel Z590 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), 6x SATA 6Gb/s ports

  • Ethernet

    1x Intel 2.5Gb Ethernet

  • USB

    Rear USB:
    Total 10 ports
    1x USB 3.2 Gen 2x2 port(s) (1x USB Type-C), 4x USB 3.2 Gen 2 port (4x Type-A), 5x USB 2.0 port(s) (4x Type-A + 1 x USB Type-C)
    Front USB:
    Total 7 ports
    1x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C), 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  • Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, Impedance sense for front and rear headphone outputs, Supports: Jack-detection/ Multi-streaming/ Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, Supports up to 32-Bit/384 kHz playback

  • Audio (Contd.)

    Audio Features
    SupremeFX Shielding Technology, ALC4080 + Savitech SV3H712 AMP, Audio jacks, Rear audio USB Type-C port, Premium Japanese audio capacitors, Audio cover

  • Back Panel I/O Ports

    1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 4x USB 3.2 Gen 2 port(s) (4 x Type-A), 5x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C), 1x HDMI port, 1x DisplayPort, 1x ASUS Wi-Fi Module, 1x Intel I225-V 2.5Gb Ethernet, 5x Audio jacks, 1x BIOS FlashBack button

  • Internal I/O Connectors

    Fan and Cooling related
    1x 4-pin CPU Fan header(s), 1x 4-pin CPU OPT Fan header(s), 1x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), 1x VRM heatsink Fan header

    Power related
    1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 1x 4-pin +12V Power connector

    Storage related
    3x M.2 slots (Key M), 6x SATA 6Gb/s ports

  • Internal I/O Connectors (Contd.)

    USB
    1x USB 3.2 Gen 1 connector (support(s) USB Type-C), 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  • Internal I/O Connectors (Contd..)

    Miscellaneous
    3x AURA Addressable Gen 2 header(s), 1x AURA RGB header(s), 1x Clear CMOS header, 1x CPU Over Voltage jumper, 1x Front Panel Audio header (AAFP), 1x TPM-M header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function, 1x Thermal Sensor header, 1x Thunderbolt header, 1x S/PDIF out header

  • Special Features

    Extreme Engine Digi+
    5K Black Metallic Capacitors

    ASUS Q-Design
    M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot

    ASUS Thermal Solution
    M.2 heatsink backplate, M.2 heatsink

    ASUS EZ DIY
    BIOS FlashBack button, BIOS FlashBack LED, ProCool II, Pre-mounted I/O shield, SafeSlot

    AURA Sync
    AURA RGB header(s), Addressable Gen 2 RGB header(s)

  • Software Features

    ROG Exclusive Software
    RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Sonic Studio Virtual Mixer, Sonic Radar III, DTS Sound Unbound, Overwolf, Anti-virus software

    ASUS Exclusive Software, Armoury Crate, AIDA64 Extreme (60 days free trial), AURA Creator, AURA Sync, Two-Way AI Noise Cancelation

  • Software Features (Contd.)

    AI Suite 3
    5-Way Optimization with AI Overclocking, TPU, EPU, Digi+ VRM, Fan Xpert 4, Turbo app, EZ update, DAEMON Tools, MyAsus, WinRAR, UEFI BIOS, MemTest86, AI Overclocking Guide

    ASUS EZ DIY
    ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, FlexKey

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit

  • Form Factor

    ATX

  • Dimensions

    12 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    195553099660

About ASUS ROG Strix Z590-A Gaming

Intel Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C, SATA and Aura Sync RGB lighting. Ready for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors.

Optimal Power Solution
14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.

Optimized Thermal Design
VRM and aluminum I/O heatsink, three onboard M.2 heatsinks, including an M.2 backplate for the PCIe 4.0 M.2 slot.

High-performance Networking
On-board Intel WiFi 6 AX200 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.

Best Gaming Connectivity
Supports HDMI 2.0 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 USB Type-C.

Intelligent Control
ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance.

DIY Friendly Design
M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack and FlexKey.

Unmatched Personalization
ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers.

Industry-leading Gaming Audio
ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III.

Renowned Software
Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

ASUS ROG Strix Z590-A Gaming Features

  • Optimal Power Solution
  • Optimized Thermal Design
  • High-performance Networking
  • Best Gaming Connectivity
  • Intelligent Control
  • DIY Friendly Design
  • Unmatched Personalization
  • Industry-leading Gaming Audio
  • Renowned Software

Key Features

  • Optimal Power Solution
  • Optimized Thermal Design
  • High-performance Networking
  • Best Gaming Connectivity
  • Intelligent Control
  • DIY Friendly Design

What's in the box:

  • ROG Strix Z590-A Gaming WiFi 6 LGA 1200 ATX White Scheme Gaming Motherboard
  • ROG Audio USB Type-C Cable
  • 4x SATA 6Gb/s Cables
  • 2x2 Dual-Band Wi-Fi Moving Antennas
  • Cable Ties Pack
  • M.2 Q-Latch Package
  • 2x M.2 Rubber Packages
  • ROG Key Chain
  • ROG STRIX Sticker
  • Support DVD
  • User Manual
  • ASUS 3 Year Limited Warranty
