This item is no longer available.
Review Summary
2022-06-16T08:14:34
If you are not connecting to a proper board then this item is a must have for Astera products. The AsteraApp used in conjunction with this box is fairly simple and anyone with a little time and patience can really get a whole lot out of their lights.
JORI S.
2022-04-06T08:55:26
The backbone of my Astera rigs! Has worked flawlessly with CRMX for my live concert work.
Benjamin E.
2021-11-26T16:02:49
Deseo adquirir un asterabox, pero soy del país México, como podría comprarlo?
joel m.
2021-08-17T15:23:11
Works great and Adorama sold it at a very competitive price.
THOMAS F.
2021-06-25T08:11:59
This is the complete kit. Fast Shipping.
LEONARD A.
2021-06-10T09:43:45
This piece of kit is a necessary evil if you want to remotely operate the lights. It?s definitely buggy and the connection fails often. I?m not in love with it but I have to have it
Nick H.
2021-05-20T07:27:00
Great service. And quick too!
DAVID L.
2021-04-16T05:22:35
Great propuse, it is so needed if you have some asteras, but lose connectivity very offten, it is reliable but sometimes when i left 2 meters away it loses signal, still recomended, its a great product.
Otoniel g.
2021-04-02T09:47:26
Amazing product, it makes life a whole lot easier being able to sync all of my gadgets
FRANTZ D.
2021-01-19T09:09:05
Before purchasing the AsteraBox Transmitter, my Astera AX1 was limited to only a few factory lighting settings on the tube. I had hoped my AsteraApp would be able to connect to the tube, but it was not able to. The AsteraBox Transmitter is the only true way to link your Astera lights to the app and unlock the full potential of them. Through the app, you get a full spectrum of light colors, a dimming option, and blinking patterns that, otherwise, would only be able to be accomplished by more expensive dimmer boards and wiring set ups. If you looking to build an Astera lighting kit, the Transmitter is an absolute must in order to unlock the full potential of your lighting kit.
John Z.
2020-08-26T08:25:53
pricey but necessary accessory for astera ax1. great range and good battery life
Dweh B.
2020-06-23T19:13:15
Absolute essential for titans and pixel tubes.
SEAN A.
2020-01-03T20:03:47
The Astera Box Art7-U is a no brainer for control of the Titan Tubes or Pixel Tube lights with easy set up and App integration I was up and running in no time having fun programming these phenomenal lights I highly recommend this product if you looking to ultimate control of your Astera lights...
Rondall B.
2019-12-29T15:17:25
Connects easy. Does the job.
ANDREW O.
2019-08-12T13:51:07
This thing is amazing. Just used it with the Astra Titan Tubes and it’s very reliable and works wonders for light gags. I would defiantly recommend this for cinema applications.
GENTZ S.
2019-06-21T09:34:50
Very fast and works great!
Scott C.
2019-06-14T20:23:07
Surprised by how long it lasts (several days on end!)
Tyler H.
2019-05-31T14:50:48
The potential this unlocks for astera titans is phenomenal. Great build quality. App needs a few bug fixes but the production value I can bring with such a small footprint is amazing.
Michael P.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
AX3, AX5, AX7, AX10, Pixel Tube, Titan Tube
LG Chem Battery
72hrs (App usage)
16h (CRMX usage)
3.7V
5V DC-1A
8hrs(from AC or high power USB port)
902-928MHz sender/receiver
2.4GHz LumenRadio CRMX module
Bluetooth module 4.0
300m RF range
500m CRMX range
10m Bluetooth range
0 to 40 deg. C (32 to 104 deg. F)
-20 to 60 deg. C (-4 to 140 deg. F)
Aluminum
Indoor / Dry Outdoor
<=90%
Micro-USB for charging
3.5" jack for DMX input
5.7 x 3.0 x 1.2" (144.78 x 76.20 x 30.48mm)
4.0 lbs (0.23kg)
192223105294
Art7 box is great tool for those with Astera lights
By JORI S.
If you are not connecting to a proper board then this item is a must have for Astera products. The AsteraApp used in conjunction with this box is fairly simple and anyone with a little time and patience can really get a whole lot out of their lights.
The key to my Astera packages!
By Benjamin E.
The backbone of my Astera rigs! Has worked flawlessly with CRMX for my live concert work.

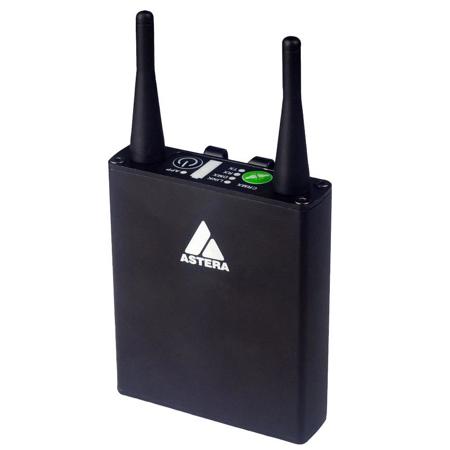

AsteraBox CRMX is the interface between lights and controller. It can be used as a wireless DMX transmitter with CRMX technology and also works as interface between app and lights. Its built-in battery enables an easy and time-saving setup, just like with all of Astera's products.
Astera System
A smart (bi-directional) control system where Infrared remote, wireless DMX and app work together to enable big setups that can be set up, monitored and adjusted in a fast and convenient way.
Max. 20h
App
Wireless DMX
App Control (UHF)
Control Lights
Create complex programs out of colors, effects and settings. The lights will remember and repeat these effects without requiring a constant wireless link. Quickly create groups of lights, assign positions and select which lights should receive commands.
Monitor lights
Keep a complete overview over the status and all settings of your lights while you operate them. View battery status, radio signal, DMX address and which lights you have targeted. Diagnose individual lights and even get informed if a light is being moved or switched off. This works while you control lights by the app but also if lights are controlled via DMX.
Set Up Faster
Set DMX addresses and profiles for one light or several lights. 50 units can be prepared in less than 5 minutes. After your job, do a quick master reset of all settings and the lights are ready for the next event.
Wireless DMX (2.4GHz)
LumenRadio
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with LumenRadio CRMX technology, the most stable wireless DMX protocol available.
Compatibility
Astera Lights can be controlled by LumenRadio CRMX transmitters and also by W-DMX from Wireless Solutions (up to G4S). Astera lights support both wireless DMX standards so you can use them together with almost all other wireless lights and transmitters.
IR Remote Control
Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights. When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
