ASUS X509 Specifications

Operating System

Operating System

Jump to...
  • Operating System

    Windows 10 Home 64-bit

  • Type

    Intel Core i7 8565U 8th Gen

  • Speed

    Base: 1.80 GHz
    Turbo: 4.60 GHz

  • Number of Cores

    Quad-core Processor

  • L3 Cache

    8MB

Display

Jump to...
  • Screen Size

    15.6"

  • Touchscreen

    No

  • Resolution

    1920 x 1080

  • LCD Functions

    Narrow border, 200nits, 16:9, anti-Glare, NTSC: 45%

Graphics

Jump to...
  • GPU/VPU

    Intel UHD Graphics 620

  • Video Memory

    Shared system memory

  • Graphic Type

    Integrated Card

Storage

Jump to...
  • Storage Drive

    256GB PCIe Gen3 x2 SSD

  • Optical Drive

    No

  • Internal Memory (RAM)

    8GB (4GB x 1 + 4GB on board)

  • Maximum Memory

    16GB

Communications

Jump to...
  • WLAN

    802.11ac Wireless LAN

  • Bluetooth

    Bluetooth 4.1

  • USB

    2x USB 2.0
    1x USB 3.1 Type A
    1x USB 3.1 Type C

  • HDMI

    1x HDMI

  • Audio Ports

    1x Headphone/Microphone Combo Jack

Input Device

Jump to...
  • Keyboard

    Chiclet Keyboard with Num-Key

  • Webcam

    VGA Camera

  • Card Reader

    Micro SD (SDXC)

  • AC Adapter

    45-watt AC adapter

  • Battery

    32WHrs, 2S1P, 2-cell Li-ion

General

Jump to...
  • Certificates

    UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, Energy Star

  • Dimensions (WxDxH)

    360.2 x 234.9 x 22.9mm (14.18 x 9.25 x 0.90")

  • Weight

    1.8kg (3.97 lbs)

4 Accessories for ASUS X509 15.6" Full HD Notebook Computer, Intel Core i7-8565U 1.8GHz, 8GB RAM, 256GB SSD, Windows 10 Home, Slate Gray

  • All Accessories (4)
  • Bags & Cases (1)
  • Speakers (1)
  • Memory & Storage (2)

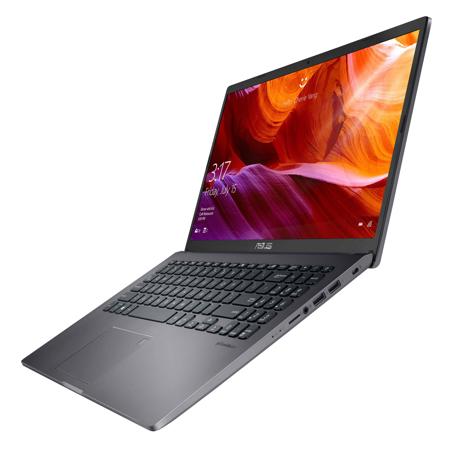

About ASUS X509

Experience the power of an everyday classic

One of the world's smallest all-rounder 15" laptops
Whether for work or play, ASUS X509 is the entry-level laptop that delivers powerful performance and immersive visuals. Its NanoEdge display and a matte anti-glare coating for a truly engaging experience. Inside, it's powered by an 8th Generation Intel Core i7 processor with 8GB RAM. A storage design with 256GB PCIe SSD gives you the large storage capacity and fast data read/write speeds.

Efficiency - Fast and efficient
With its 8th Gen Intel Core processor, ASUS X509 helps you get things done swiftly and efficiently.

Storage - Store more, do more
ASUS X509 has a storage design to give you the benefits of superfast data performance and a large storage capacity.

NanoEdge Display - Get a wider view of the world
The NanoEdge display gives ASUS X509 a vast screen area for an immersive viewing experience for work and play. Its wide-view FHD panel features an anti-glare coating to reduce unwanted distractions from irritating glare and reflections, so you can truly focus on what's in front of you.

Stylish & Portable - Empower your dynamic lifestyle!
With an overall weight of just 3.97 lbs, the extremely portable ASUS X509 is the lightweight laptop that keeps up with your fast-paced lifestyle. It looks good, too, with its Transparent Silver or Slate Gray finish.

Immersive Audio - Rich, crystal-clear audio
ASUS SonicMaster is a combination of hardware, software and audio tuning designed with the goal of giving you the very best audio experience. A professional-grade codec ensures precise audio encoding and decoding; while amplifiers, large speakers and resonance chambers perfectly suited to ASUS X509 ensure a powerful audio delivery and deeper bass. Additional signal processing and tuning help refine minute details, filter noise and improve audio clarity so you get truly immersive sound.

Keyboard - Exactly your type
The full-size keyboard on ASUS X509 is perfect for working in dim environments. Ergonomically-designed, its sturdy, one-piece construction and 1.4mm key travel provide a comfortable typing experience.

Connectivity - Constantly connected
ASUS X509 is equipped with the reversible USB-C 3.1 port, featuring an any-way-up design that makes connecting devices as easy as possible. It also delivers data transfer speeds up to 10x faster than older USB 2.0 connections! There are USB 3.1 and USB 2.0 ports, HDMI output and a microSD card reader - so you can easily connect all your current peripherals, displays and projectors with zero hassle.

Battery - A safe fast-charging and longer-lasting battery
ASUS X509 features a 3x the lifespan of standard lithium-ion batteries. With ASUS fast-charge technology, a low battery can be charged to 60 percent in just 49 minutes.

Enhanced Protection

Internal protection and chassis enhancements
The reinforced chassis improves typing and allows you to open and close the lid in one smooth motion.

Reinforced chassis
A metal support brace underneath the keyboard provides a much more stable platform when typing and using the touchpad. Besides providing structural rigidity, it also strengthens the hinge joint and protects internal components.

Reinforced lid
The sides of the lid are reinforced and work like side-impact protection beams in automobiles. These provide structural support for the lid, the panel and the hinge joint.

What's in the box:

  • ASUS X509 15.6" Full HD Notebook Computer
  • Power Adapter
  • ASUS 1 Year Limited Warranty
