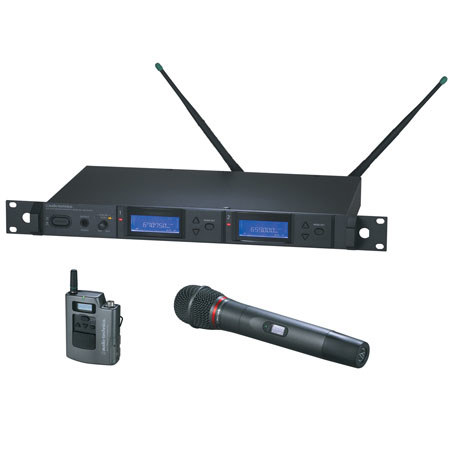

Audio-Technica AEW5316a Wireless Mic System, AEW-R5200 Dual Receiver, AEW-T6100a Handheld & AEW-T1000a UniPak Transmitter, Band D 655.500- 680.375MHz

SKU: ATAEW5316AD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica AEW5316a Specifications

  • Type of System

    Frequency Agile UHF Dual Transmitter

  • RF Carrier Frequency Range

    Band D 655.500- 680.375MHz

  • Approx. Working Range

    300' (91.44m)

  • Overall Frequency Response

    70Hz to 15kHz

  • Signal-to-Noise Ratio

    115dB at 40kHz deviation (IEC-weighted), maximum modulation 75kHz

  • No Of Channels

    996 Channels

  • Type of Receiver

    Dual independent receivers, automatic-switching diversity

  • Receiver: Type of Outputs

    2 - Balanced: XLRM-type
    2 - Balanced: 1/4" TRS phone jack

  • Receiver: Headphone Monitoring

    1/4" TRS Phone

  • Receiver: Power Requirements

    100-240V AC 50/60 Hz; 15W

  • Receiver: Battery Type/Approx. Life

    AC Powered Only

  • Receiver: Display

    Back-Lit LCD Display & Battery / Signal Status LED

  • Receiver: Mounting Options

    Table Surface / Rack Mountable rack ears included

  • Receiver: Antenna Type

    BNC Flexible UHF

  • AEW-T1000: Type of Input Connector

    High Impedance / Low Impedance / Bias UniPak Connection

  • AEW-T1000: Interchangeable Mic Heads

    Various AKG microphones and cables featuring UniPak connection

  • AEW-T1000: Battery Type/Approx. Life

    x2 1.5v AA Alkaline not included

  • AEW-T1000: Mute Switch

    Power / Mute switch dual function

  • AEW-T1000: RF Power Output

    High: 35mW; Low: 10mW, nominal

  • AEW-T1000: Display

    Back-Lit LCD Display & Battery / Signal Status LED

  • AEW-T6100a: Type of Microphone

    Dynamic

  • AEW-T6100a: Polar Pattern

    Hypercardioid

  • AEW-T6100a: Interchangeable Mic Heads

    No

  • AEW-T6100a: Battery Type/Approx. Life

    (2) 1.5v AA Alkaline not included

  • AEW-T6100a: Mute Switch

    Power / Mute switch dual function

  • AEW-T6100a: Level Control

    No

  • AEW-T6100a: Antenna Type

    Internal

  • AEW-T6100a: Display

    Back-Lit LCD Display & Battery / Signal Status LED

  • Dimensions

    Receiver: 18.98x1.74x10.85" / 48.20x4.41x27.55 cm
    AEW-T1000: 2.60x3.43x0.94" / 6.60x8.71x2.38 cm
    AEW-T6100a: 9.33x1.89" / 23.69x4.80 cm

  • Weight

    Receiver: 8.8 lbs / 3.99 kg
    4.4 oz / 124.73 g
    9.7 oz / 274.99 g

  • UPC Code

    042005163595

About Audio-Technica AEW5316a

The Audio-Technica AEW5316a Dual Wireless Microphone System (Band D 655.500- 680.375MHz) feature professional, dual wireless transmitter operation in theaters, houses-of-worship and more. This system includes the AEW-R5200 dual receiver, UniPak transmitter and handheld transmitter.

The AEW-R5200 dual receiver is designed for use with the 5000 series wireless microphone system. The receiver features two independent receivers with 996 UHF selectable frequencies each, enabling two transmitters to operate simultaneously. Diversity reception minimizes drop-out and RF interference, resulting in the strongest possible reception.

The rear panel reveals independent balanced 1/4" phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The 5000 series enhanced features include IntelliScan which automatically sets best available frequencies on all linked receivers and Dual Compander circuitry which processes high and low frequency signal separately resulting in superior audio quality.

The AEW-T1000 body-pack transmitter features Audio-Technica's unique UniPak input connector. The input accepts both line and microphone level signals (adjustable) allowing instrument signals as well as microphone signals. An assortment of compatible microphones and instrument cables are available from Audio-Technica. Radio frequency output power is switchable between 10mW and 35mW, providing greater range when needed. The lightweight transmitter operates on 2 AA alkaline batteries for up to 6 hours (High) and 8 hours (Low).

The AEW-T6100a handheld transmitter features a hypercardioid polar pattern, minimizing pick up at the off-axis sections of the capsule. This minimizes noise and provides higher gain before feed-back. The transmitter features a rugged, ergonomic metal design able to withstand rigorous road use. Additional features include IntelliScan automated frequency detection, an On/Off/Mute switch and a back-lit LCD display. The transmitter operates up to 8 hours on 2 AA alkaline batteries.

Audio-Technica AEW5316a Features

  • Two independent receivers in a single housing
  • 996 selectable UHF channels per band and True Diversity reception for interference-resistant operation
  • IntelliScan feature automatically finds and sets best available frequencies on all linked receivers
  • On-board Ethernet interface for monitoring and controlling system parameters with included AEW Control Interface software
  • Advanced digital Tone Lock squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
  • Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
  • 1/4" external mute switch jack allows user to mute the system quickly and easily
  • AC pass-through allows daisy-chain AC hookup with included IEC jumper cables
  • Link and coordinate multiple receiver channels
  • High-visibility white-on-blue LCD information display
  • Metal full-rack receiver chassis with reinforced mounting ears and rear rack mount capability
  • All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls and 10mW/35mW switchable RF power
  • Backlit LCD displays on transmitters
  • Locking battery door on UniPak body-pack transmitter
  • All components store up to five preset configurations, with customized "names" if desired

Key Features

  • Two independent receivers in a single housing
  • True Diversity reception for interference-resistant operation
  • 996 selectable UHF channels per band
  • IntelliScan feature automatically finds & sets best available frequencies on all linked receivers
  • On-board Ethernet interface
  • Advanced digital Tone Lock

What's in the box:

  • Audio-Technica AEW-R5200 Dual Receiver
  • AEW-T6100a Handheld Transmitters
  • AEW-T1000a UniPak Transmitter
  • Detachable IEC-type AC Power Cable
  • IEC-type AC Pass-through Cable
  • 2 x Flexible UHF Half-Wave Antennas
  • Link Cable
  • Front Mount Antenna Cables and Connections
  • CD-ROM with Computer Control Interface Software
  • AT8456a Quiet-Flex Stand Clamp
  • Audio-Technica Warranty
