Audio-Technica AT2022 X/Y Stereo Condenser Microphone
See all Audio-Technica items

Audio-Technica AT2022 X/Y Stereo Condenser Microphone

SKU: ATAT2022

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ZANETA S : field recording

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Audio-Technica AT2022 Specifications

  • Transducer

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    X/Y Stereo

  • Frequency Response

    20Hz - 20kHz

  • Open Circuit Sensitivity

    -41 dB (8.9 mV) re 1V at 1 Pa

  • Dynamic Range (Typical)

    103dB, 1 kHz at Max SPL

  • Signal-to-Noise Ratio

    75dB, 1kHz at 1 Pa

  • Channel Balance

    <2.5 dB

  • Maximum Input Sound Level

    122 dB SPL, 1 kHz at 1% T.H.D

  • Output Impedance

    200 ohms

  • Output Connectors

    Integral 3-pin XLRM-type

  • Low Frequency Roll-Off

    150Hz, 6 dB/octave

  • Battery Type

    1.5V AA/UM3

  • Battery Life

    1.2 mA / 500 hours typical (alkaline)

  • Switch

    Off, on/flat, on/roll-off

  • Dimensions

    7.56" / 192.0mm Length
    2.56" / 65.0mm Head Diameter
    0.83" / 21.0mm Body Diameter

  • Weight

    9.5oz / 269.32g

  • UPC Code

    4961310112448

About Audio-Technica AT2022

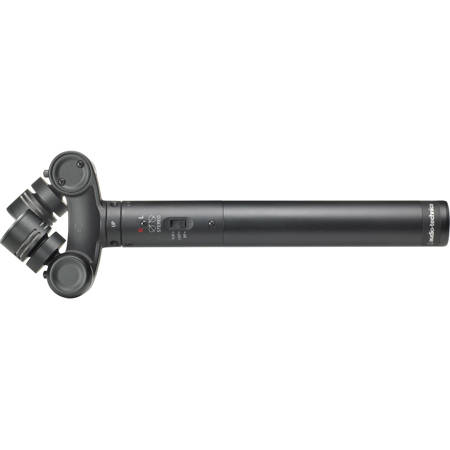

The Audio-Technica AT2022 X/Y Stereo Microphone is designed to capture instruments, ambiance, vocals and performances in stereo. There are two cardioid swiveling capsules that can fold flat for storage and transportation. Easily position the capsules to allow for narrow or wide stereo operation. A low frequency roll-off switch minimizes noise due to proximity effect, ambiance, wind and more.

Audio-Technica AT2022 Features

  • X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
  • Provides the spatial impact and realism of a live sound field
  • Battery operation allows use with most recording devices
  • Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
  • User-selectable 90deg. or 120deg. stereo operation for narrow or wide pickup patterns
  • Ideal for general stereo recording and field sound capture
  • Excellent channel separation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Excellent channel separation

What's in the box:

  • Audio-Technica AT2022 X/Y Stereo Condenser Microphone
  • AT8405a Stand Clamp for 5/8 "-27 Threaded Stands
  • 1/8 " (3.5mm) Mini Terminated Microphone Cable-1.64'' (0.5m)
  • Fuzzy Windscreen
  • Battery
  • Soft Protective Pouch
  • Audio-Technica 2 Years Limited Warranty
