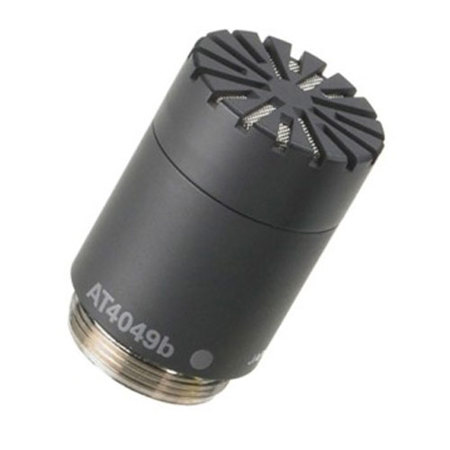

Audio-Technica AT4049b-EL Omnidirectional Condenser Mic Capsule

SKU: ATAT4049BEL MFR: AT4049B-EL
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Audio-Technica condenser mic capsule for studio recordings.
  • Achieve exceptional sound quality with the AT4049b-EL's wide 20-20,000 Hz frequency response.
  • Enjoy versatile use with this omnidirectional microphone part, perfect for various applications.
  • Reduce unwanted low-frequency noise using the built-in 80 Hz roll-off feature on this capsule.
  • Experience high signal-to-noise ratio for clear audio capture using this quality microphone part.
  • Ensure compatibility with 48V phantom power for seamless integration with your existing setup.
See More Product Details
Special Order?Estimated to Ship: 09/02/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica AT4049b-EL Specifications

  • Element

    Externally polarized (DC bias) capacitor

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20-20,000 Hz

  • Low Frequency Roll-Off

    80 Hz, 12 dB/octave

  • Open Circuit Sensitivity

    -34 dB (19.9 mV) re 1V at 1 Pa

  • Impedance

    50 ohms

  • Maximum Input Sound Level

    145 dB SPL, 1 kHz at 1% T.H.D.
    155 dB SPL, with 10 dB pad (nominal)

  • Noise

    16 dB SPL

  • Dynamic Range (Typical)

    129 dB, 1 kHz at Max SPL

  • Signal-To-Noise Ratio

    78 dB, 1 kHz at 1 Pa

  • Phantom Power Requirements

    48V DC, 4.8 mA typical

  • UPC Code

    4961310101442

Models
Audio-Technica AT4049b-EL Omnidirectional Condenser Mic Capsule
$329.00

Special Order

Generally ships in 7-14 days, subject to availability

Audio-Technica AT4051b-EL Cardioid Condenser Mic Capsule, Element Only
$329.00

Special Order

Generally ships in 7-14 days, subject to availability

Audio-Technica ATW-C3300 Interchangeable Cardioid Condenser Microphone Capsule
$329.00

Special Order

Generally ships in 7-14 days, subject to availability

Compatibility--ATW Series
Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Audio-Technica AT4049b-EL

The Audio-Technica AT4049b-EL is a professional-quality omnidirectional condenser mic capsule designed for use with the AT4900b-48 mic body. The omnidirectional pickup pattern captures sound from all directions, making it ideal for recording room ambience. The capsule operates via 48V phantom power, which is supplied by the mic body.

Audio-Technica AT4049b-EL Features

  • Works With The Audio-Technica AT4049B, AT4051B and AT4053b Condenser Microphone systems
  • Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Omnidirectional polar pattern provides maximum ambient pickup
  • Direct-coupled, balanced output results in a clean signal even under high-output conditions
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine audio with this Audio-Technica condenser mic capsule for studio recordings.
  • Achieve exceptional sound quality with the AT4049b-EL's wide 20-20,000 Hz frequency response.
  • Enjoy versatile use with this omnidirectional microphone part, perfect for various applications.
  • Reduce unwanted low-frequency noise using the built-in 80 Hz roll-off feature on this capsule.
  • Experience high signal-to-noise ratio for clear audio capture using this quality microphone part.
  • Ensure compatibility with 48V phantom power for seamless integration with your existing setup.
