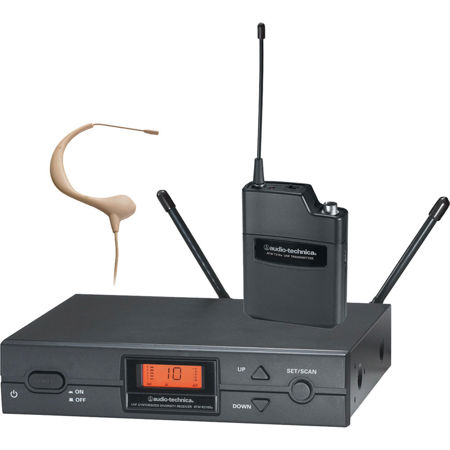

Audio-Technica 2000 Series ATW-2193b Frequency-Agile True Diversity UHF Wireless System, Includes ATW-R2100b Receiver, ATW-T210a UniPak Transmitter and BP893cW Beige MicroEarset Omnidirectional Headworn Microphone, Frequency Band I: 487.125-506.500MHz, TV Channels 16-20

SKU: ATW2193BITH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-2193b Specifications

  • System: UHF operating frequencies

    Band I: 487.125-506.500 MHz, 10 channels

  • System: Modulation mode

    FM

  • System: Maximum deviation

    +/-40 kHz

  • System: Dynamic range

    > 110 dB (A-weighted), typical

  • System: Total harmonic distortion

    < 1% (at 1 kHz, +/-20 kHz deviation)

  • System: Operating range

    100m (328.08'), typical (open range environment with no interfering signals)

  • System: Operating temperature range

    5 to 45 deg. C (41 to 113 deg. F) (battery and LCD performance may be reduced at very low temperatures)

  • System: Frequency response

    100 Hz to 15 kHz (+1 dB, -3 dB)

  • Receiver: Receiving system

    True diversity

  • Receiver: Image rejection

    60 dB nominal, 55 dB minimum

  • Receiver: RF Sensitivity

    20 dBuV at 60 dB S/N ratio (50Ohms termination)

  • Receiver: Maximum output level

    XLR, balanced: +9 dBV
    1/4" (6.3 mm), unbalanced:+4 dBV

  • Receiver: Balanced audio o/p attenuator

    Two position switch: 0/-12 dB

  • Receiver: Antenna input

    BNC-type, 50Ohms
    Bias voltage 12V DC, 60 mA, each

  • Receiver: Power requirements

    12-18V DC, 500 mA

  • Transmitter: RF power output

    High: 30 mW, Low: 10 mW (50Ohms)

  • Transmitter: Spurious emissions

    Following federal and national regulations

  • Transmitter: Input connection

    Four-pin locking connector
    Pin 1: GND
    Pin 2: INST INPUT
    PIN 3: MIC INPUT
    PIN 4: DC BIAS +9V

  • Transmitter: Batteries

    Two 1.5V AA alkaline or two 1.2V AA NiMH

  • Transmitter: Battery life

    High: 7 hours (alkaline), Low: 9 hours (alkaline)
    Depending on battery type and use pattern

  • Microphone: Element

    Fixed-charge back plate, permanently polarized condenser

  • Microphone: Polar pattern

    Omnidirectional

  • Microphone: Frequency response

    20-20,000 Hz

  • Microphone: Low frequency roll-off

    80 Hz, 18 dB/octave

  • Microphone: Open circuit sensitivity

    -34 dB (19.9 mV) re 1V at 1 Pa

  • Microphone: Impedance

    245Ohms

  • Microphone: Maximum input sound level

    114 dB SPL, 1 kHz at 3% T.H.D

  • Microphone: Dynamic range (typical)

    88 dB, 1 kHz at Max SPL

  • Microphone: Signal-to-noise ratio

    68dB, 1 kHz at 1 Pa

  • Microphone: Phantom power requirements

    11-52V DC, 2 mA typical

  • Microphone: Switch

    Flat, roll-off

  • Microphone: Output connector

    Integral 3-pin XLRM-type (power module)

  • Microphone: Cable

    1.4m (4.59') long (permanently attached to microphone), 1.6mm (0.06") diameter
    2-conductor shielded cable with locking
    4-pin connector

  • Microphone: Audio-Technica case style

    M31

  • Dimensions

    Transmitter (W x D x H): 66.0 x 22.5 x 92.3mm (2.60 x 0.89 x 3.63")
    Receiver (W x D x H): 210.0 x 162.2 x 44.0mm (8.27 x 6.39 x 1.73") (not including BNC connectors or feet)
    Microphone (L x Dia.): 8.1 x 2.6mm (0.32 x 0.10")
    Boom (L x Dia.): 26.4 x 1.07mm (1.04 x 0.04")
    Power module (L x Dia.): 97.6 x 18.9mm (3.84 x 0.74")

  • Weight

    Transmitter: 81g (2.86oz) without batteries
    Receiver: 1.0kg (2.20lbs) without accessories
    Microphone, boom & earpiece: 2.0g (0.07oz)
    Power module: 85g (3.0oz)

  • UPC Code

    042005192014

About Audio-Technica ATW-2193b

Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. Features include two available frequency bands and switchable antenna power.

Offering 10 selectable channels in one of two UHF frequency ranges and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock squelch plus an easy-to-read LCD information display.

ATW-R2100b Frequency-agile True Diversity UHF Receiver
The ATW-R2100b is a True Diversity UHF wireless receiver operating in the UHF bands of 656.125-678.500 or 487.125-506.500 MHz. The automatic frequency scanning eliminates the need for searching for clear channels and automatically selects the most appropriate frequency for the area in which the wireless is operating. A pre-coordinated integral channel plan allows for simultaneous operation of any of the ten channels in a given location.

• High sensitivity dual IF receiving design for dropout-free performance
• Automatic frequency scanning finds open channel
• High efficiency compander for flawless audio
• 10 compatible user-switchable channels in one of two UHF frequency ranges
• Antenna power available for powered antennas & other in-line RF devices
• Receiver internal function menu with soft-touch controls
• Straightforward channel selection process
• Digital Tone Lock squelch
• Adjustable receiver squelch
• True Diversity receiver with silent, automatic switching
• Tuner operation indicator displays tuner with strongest reception
• Receiver front panel displays for RF and AF signal levels
• AC or 12-18 V DC operation
• Rear panel or front panel antenna mount options
• Balanced and unbalanced outputs
• Output level control on the rear panel
• Ground lift switch on balanced output
• Rugged metal receiver construction
• Mounts in a single rack space (1 or 2 units)
• Clear sound quality, rock solid, dependable performance

The flexibility in programming both the receiver and transmitters eliminates confusing frequency groups and other frequency coordination problems. A two-position switch turns on/off 12V AC antenna power for use with powered antennas or accessories. Advanced Tone Lock adjustable squelch system fights interference. High sensitivity dual IF design using true diversity operation with silent automatic switching provides dropout-free performance. Front panel LCD receiver display provides continuous indication of transmitter RF signal strength, selection of internal dual (True Diversity) receiving sections (A&B), along with the audio modulation level of the received signal

Both balanced XLR-type and unbalanced 1 /4" output connections with output gain adjustments are located on the rear panel. The XLR-type output includes a ground lift switch to prevent ground loops. Features not often found in other receivers include metal receiver construction, detachable wave receiver antennas, AC or 12-18V DC operation, front panel power switch and included rack mount kit.

ATW-T210a Frequency-agile UHF UniPak Body-pack Transmitter
The ATW-T210a wireless UniPak body-pack transmitter has both low- and high-impedance input connections along with a DC bias voltage connection for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. Separate input trim controls are provided for each input along with a ten-position channel selector switch. All adjustment controls are hidden behind the transmitter's battery door and an adjustment tool is provided with the transmitter. A locking 4-pin HRS-type input connector is provided for both inputs. The connector is recessed to protect the connection and input cable.

• Rugged housing with a reversible clothing clip
• Recessed locking HRS-type microphone input connector
• LED "on" indicator
• 10 compatible user-switchable channels in one of two UHF frequency ranges
• Microphone or line input with DC bias voltage
• Internal channel selector switch
• Internal trim controls for mic and line inputs
• Integrated two-position top-mounted power/mute switch
• Digital Tone Lock to identify the wireless transmitter to the receiver
• Operates on two AA batteries
• Field replaceable whip antenna

Sophisticated Tone Lock tone squelch eliminates the need for a separate mute button allowing the two-position, positive-action mechanical switch to function for both power and mute. The switch is located on the top of the transmitter for easy access and can be operated without looking at the transmitter. An RF power select switch offers high and low settings. A battery condition indicator shows that the batteries are good. The transmitter operates on two standard AA batteries providing over eight hours of continuous operation. Constructed of rugged high-impact materials, the transmitter incorporates a latching captive battery door, field replaceable antenna and reversible belt clip.

BP893cW MicroEarset Omnidirectional Condenser Headworn Microphone
BP893 Omnidirectional Condenser Headworn Microphone, less power module. 1.4 m (55") permanently attached miniature cable terminated with locking 4-pin connector for use with Audio-Technica UniPak body-pack wireless transmitters.

• Outstanding clarity and intelligibility
• Lightweight, ergonomic design
• Extremely unobtrusive, 1-inch flexible boom
• Secure over-the-ear placement
• Extended frequency response for natural vocal reproduction

What's in the box:

  • Audio-Technica ATW-R2100b Receiver
  • ATW-T210a UniPak Transmitter
  • BP893cW MicroEarset Omnidirectional Headworn Microphone
  • 2x Flexible UHF Antenna
  • AC Adapter
  • Rack-Mount Adapters
  • AT8539 Power Module
  • AT8440 Cable Clip
  • 2x AT8157 Windscreens
  • 2x AT8156 Element Covers
  • Moisture Guard
  • Carrying Case
  • Belt Clip
  • Audio-Technica 2 Year Limited Warranty
