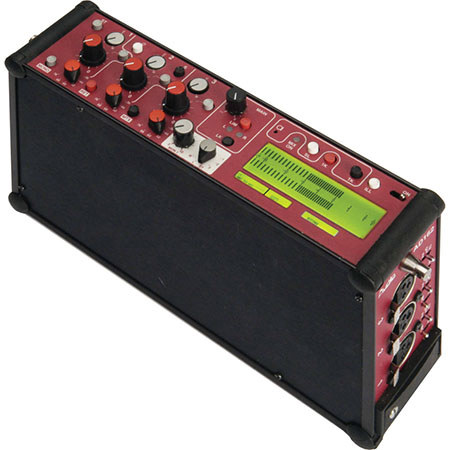

Audio Developments AD162 3 Input/1 Output Stereo ENG Mixer, 20Hz-20kHz Frequency Response
SKU: AUD94162100
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Audio Developments AD162
The Audio Developments AD162 3 Input/1 Output Stereo ENG Mixer is the first mixer designed with an LCD meter in place of the traditional analogue type, creating the opportunity to fit a significant number of facilities into a much smaller space. The mixer, while having all the attributes of the AD161 ( its mono counterpart), is only 25 per cent greater by volume. The meter shows not only the output levels in PPM or VU format, but gives an indication of the battery condition and monitor status. (Whether listening to direct or return signals). Using internal DIL switches the meter can follow the monitor selector. This gives the operator the opportunity to show the return level. The mixer has been designed to introduce to the market a high quality, yet affordable, stereo ENG mixer with the durability to last well into the next decade.
Audio Developments AD162 Features
- Mic Inputs - Three electronically balanced type with XLR connector, High Pass Filter, 6 position Input Gain Selector, rotary level control, 48V Phantom/12V T (AB) Powering
- Mic/Line - Each input is switchable to line level giving the same degree of control as for mic input
- Routing - Each input routed to left or right output using a centre detent panoramic potentiometer
- Output - Transformer balanced with XLR Type connector, rotary stereo level control
- 10 Pin Multiway Connector- Contact left and right main output signals and left and right return signals to the monitor path. This allows a single connection to the recording media, e.g. Cameras and can be used simultaneously with the XLR outputs
- Limiter- Incorporated in the main outputs. A push switch introduces the limiter into circuit and a further switch enabling left and right signal paths to be linked. Two LEDs indicate the onset of limiting
- Line Up Oscillator - 1k Tone into Output
- Talkback/Slate-An internal electret microphone allow a 'slate' signal to be added to the main outputs and a TALK switch enables communication to a third party on separate monitor output
