17% Off

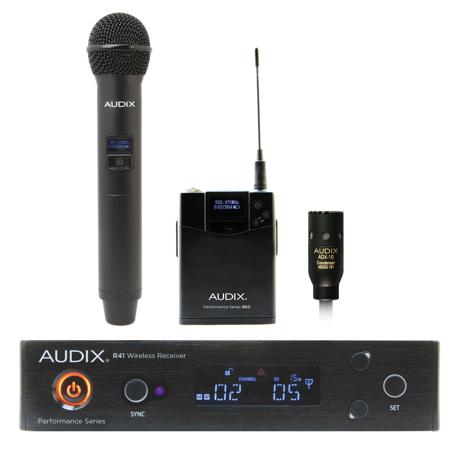

Audix Performance Series Wireless Microphone System, Includes R41 Diversity Receiver, H60 Handheld Transmitter with OM2 Capsule, B60 Bodypack Transmitter with ADX10 Lavalier Mic, Frequency Band A: 522MHz - 554MHz

SKU: AUP41OM2L10A MFR: AP41OM2L10A
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this wireless microphone system, perfect for clear presentations.
  • Enjoy freedom of movement with a 300' wireless range, ideal for dynamic performances & lectures.
  • The included ADX10 lavalier microphone ensures discreet, hands-free audio capture for interviews.
  • Experience up to 14 hours of battery life with the B60 bodypack transmitter, great for long events.
  • Achieve professional sound quality with a wide 45 Hz - 18 kHz frequency response for natural audio.
  • Easily rackmount the diversity receiver for a streamlined setup in studios or live sound environments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audix AP41 OM2 L10 Specifications

R41 Receiver

R41 Receiver

Jump to...
  • Frequency Range

    522MHz - 554MHz

  • Bandwidth

    32MHz

  • Compatible Systems

    Up to 16 systems / 16 unique channels

  • Switchable Frequencies

    106 Preset frequencies

  • Frequency Response

    45 Hz - 18 kHz

  • Operating range

    300' (91.44m)

  • Compander System

    2:1

  • Pilot Tone

    32kHz

  • Receiving System

    Single tuner, diversity

  • Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (A-weighted)

  • Total Harmonic Distortion

    <=.7% (33 kHz deviation at 1 kHz)

  • Sensitivity

    5dB MuV (S/N 60 dB at 25 kHz deviation, A-weighted)

  • Audio Output (AF=0)

    Balanced: -12 dBv at 25 kHz deviation, 600Ohms load
    1/4": -18 dBv at 25 kHz deviation, 10k Ohms load

  • Output Connectors

    1/4", XLR

  • Audio Level Adjust

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

H60 Transmitter

Jump to...
  • RF Power Output

    10 mW, 40 mW

  • Frequency Bandwidth

    64 MHz

  • Gain Controls

    0 dB, -6 dB, -12 dB

  • Batteries Included

    2 AA 1.5 V

  • Current Consumption

    110 mA typical

  • Battery Life

    14 hours

  • Max Sound Pressure Level

    >140 dB (depending on capsule)

B60 Transmitter

Jump to...
  • RF Power Output

    10 mW, 40 mW

  • Frequency Bandwidth

    64 MHz

  • Gain Controls

    0 db, -6 dB, -12 dB

  • Input Connector

    3 pin mini-XLR

  • Batteries Included

    2 AA 1.5 V

  • Current Consumption

    110 mA typical

  • Battery Life

    14 hours

  • Input Impedance

    Mic: 10k Ohms, Line: 1M Ohms

  • Max Sound Pressure Level

    128 dB to 140 dB (depending on mic)

ADX10 Microphone

Jump to...
  • Transducer Type

    Pre-Polarized Condenser

  • Frequency Response

    50 Hz - 18 kHz

  • Polar Pattern

    Cardioid

  • Output Impedance

    800 Ohms

  • Sensitivity

    5 mV / Pa at 1k

  • Equivalent Noise Level

    <29 dB (A-weighted)

  • Signal-to-Noise Ratio

    >65 dB

  • Maximum SPL

    >=120 dB

  • Power Requirements

    9-52 V phantom

  • Connector

    Shielded 3' terminating to a miniature 3 pin Female XLR connector

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

  • Materials

    Machined Brass

  • Applications

    Speech
    Flute
    Acoustic instruments and hand drums

General

Jump to...
  • Dimensions

    R41 Receiver (WxDxH): 205 x 206 x 44mm (8.07 x 8.11 x 1.73")
    H60 Transmitter: 2.1" (5.33cm) Diameter body
    Length: 10.43" (26.49cm)
    B60 Transmitter (WxLxD): 67 x 90 x 17mm (2.64 x 3.54 x 0.67")
    ADX10 Microphone: 25mm (0.98") Length

  • Weight

    R41 Receiver: 1.92 lbs (0.87kg)
    H60 Transmitter: 312g (11.01 oz) (without battery)
    B60 Transmitter: 3.0 oz (85.05g) (without battery)
    ADX10 Microphone: 21g (0.74 oz)

About Audix AP41 OM2 L10

A combination system that allows for the flexibility of using either the OM2 handheld transmitter or the bodypack system with the ADX10 cardioid lavalier microphone. This package is designed for rental companies, hotels, presentation events, education and applications where only one transmitter would be required at a time.

R41 Diversity Receiver
• 32 MHz Wide spectrum tuning receiver
• 106 Pre-coordinated frequencies
• Up to 16 systems / 16 unique channels simultaneous use
• High contrast LCD display
• AF and RF gain control
• 300' (91 meters) Operating range
• Rack mountable metal chassis

H60 Handheld Transmitter
The H60 features an elegantly designed slim line body that is compact, well-balanced and comfortable to hold. The H60 can be used with dynamic (OM Series) and condenser microphones (VX5).

• 64 MHz Wide spectrum transmitter
• AF and RF gain control
• 10 mW and 30 mW Selectable RF power
• Metal housing / modular capsule design
• 14 Hour run time - AA batteries
• High contrast LCD display with group-channel-battery indicators
• Soft mute switch

B60 Bodypack Transmitter
The Audix Performance Series bodypack system is very contemporary in design, rugged, comfortable to wear and easy to use. The B60 may be used with lavalier, headworn and instrument mics as well as electric guitar and bass.

• 64 MHz Wide spectrum transmitter
• AF and RF gain control
• 10 mW and 30 mW Selectable RF power
• Metal housing / modular antenna design
• 14 Hour run time - AA batteries
• High contrast LCD display with group-channel-battery indicators
• Soft mute switch

ADX10 Lavalier Condenser Microphone
The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation and theatrical production. Known for its clarity, resistance to feedback and ease of operation, the ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4"-8". The ADX10 is characterized with a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other vocals or instruments on stage. With a smooth and accurate frequency range of 50 Hz - 18 kHz, the ADX10 is lightweight and will provide natural sound with exceptional transient response.

• Small, lightweight, low profile
• Natural, accurate sound reproduction
• Easy to use and set up
• Field replaceable capsule
• Available for wireless and wired applications

The ADX10, primarily for use with Audix wireless systems, includes a tie-clip and a 3' attached cable terminating to a mini-XLR Female connector. The ADX10 may also be used as a wired mic. Simply order the APS910 or APS911 phantom power adapter for use with a standard mic cable.

Warranty Information

This product has a limited warranty of 36 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this wireless microphone system, perfect for clear presentations.
  • Enjoy freedom of movement with a 300' wireless range, ideal for dynamic performances & lectures.
  • The included ADX10 lavalier microphone ensures discreet, hands-free audio capture for interviews.
  • Experience up to 14 hours of battery life with the B60 bodypack transmitter, great for long events.
  • Achieve professional sound quality with a wide 45 Hz - 18 kHz frequency response for natural audio.
  • Easily rackmount the diversity receiver for a streamlined setup in studios or live sound environments.

What's in the box:

  • Audix R41 Diversity Receiver
  • H60 Handheld Transmitter with OM2 Capsule Module
  • B60 Bodypack Transmitter
  • ADX10 Lavalier Microphone
  • WS10 Windscreen for ADX10 Microphone
  • 2x Antennas
  • Audio Cable
  • Clip
  • Pouch
  • 2x AA Batteries
  • Carrying Case
  • Power Supply
  • Rackmount Hardware
  • User Guide
  • Audix 3 Year Limited Warranty
