Audix R41 Single-Channel UHF Diversity Receiver, Band B: 554MHz - 586MHz
See all Audix items
17% Off

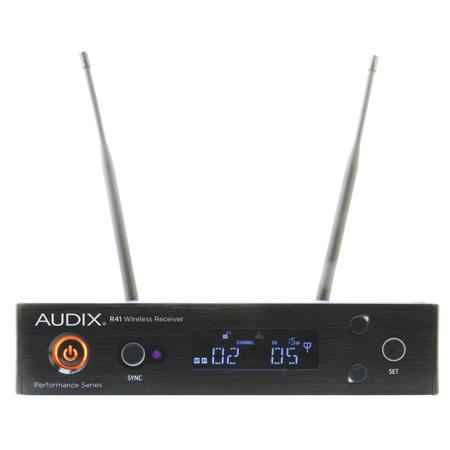

Audix R41 Single-Channel UHF Diversity Receiver, Frequency Band B: 554MHz - 586MHz

SKU: AUR41KITB MFR: R41KITB
Be the first to review this itemAsk a Question
$385.00
$462.00
Save: $77 (17%)
OR
$65/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless receiver's exceptional sound quality.
  • Enjoy a reliable wireless connection up to 300 feet, perfect for dynamic performances.
  • Minimize interruptions; this wireless microphone system supports up to 16 simultaneous channels.
  • Achieve pristine sound with a wide 45 Hz - 18 kHz frequency response for rich audio.
  • Easily rackmount this single-channel UHF receiver for streamlined integration into your setup.
  • Optimize your sound with adjustable audio levels, ensuring balanced output for any venue.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Audix R41 Receiver Specifications

  • Frequency Range

    554MHz - 586MHz

  • Bandwidth

    32MHz

  • Compatible Systems

    Up to 16 systems / 16 unique channels

  • Switchable Frequencies

    106 Preset frequencies

  • Frequency Response

    45 Hz - 18 kHz

  • Operating range

    300' (91.44m)

  • Compander System

    2:1

  • Pilot Tone

    32kHz

  • Receiving System

    Single tuner, diversity

  • Signal-to-Noise Ratio

    105 dB at 30 kHz deviation (A-weighted)

  • Total Harmonic Distortion

    <=.7% (33 kHz deviation at 1 kHz)

  • Sensitivity

    5dB Mu V (S/N 60 dB at 25 kHz deviation, A-weighted)

  • Audio Output (AF=0)

    Balanced: -12 dBv at 25 kHz deviation, 600Ohms load
    1/4": -18 dBv at 25 kHz deviation, 10k Ohms load

  • Output Connectors

    1/4", XLR

  • Audio Level Adjust

    Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)

  • Power Supply

    100 - 240V / 50 - 60 Hz, 12V DC, 1A

  • Dimensions (WxDxH)

    205 x 206 x 44mm (8.07 x 8.11 x 1.73")

  • Weight

    1.92 lbs (0.87kg)

About Audix R41 Receiver

Diversity receiver including antennas, power supply and padded carrying case. The R41 Kit allows a custom system to be configured according to one's unique application. Just add the desired handheld or bodypack transmitter of your choice to the system.

R41 Diversity Receiver
• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• Up to 16 systems / 16 unique channels simultaneous use
• High contrast LCD display
• AF and RF gain control
• 300' (91 meters) Operating range
• Rack mountable metal chassis

Warranty Information

This product has a limited warranty of 12 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless receiver's exceptional sound quality.
  • Enjoy a reliable wireless connection up to 300 feet, perfect for dynamic performances.
  • Minimize interruptions; this wireless microphone system supports up to 16 simultaneous channels.
  • Achieve pristine sound with a wide 45 Hz - 18 kHz frequency response for rich audio.
  • Easily rackmount this single-channel UHF receiver for streamlined integration into your setup.
  • Optimize your sound with adjustable audio levels, ensuring balanced output for any venue.

What's in the box:

  • Audix R41 Single-Channel UHF Diversity Receiver
  • Rackmount Hardware
  • 2x Antennas
  • Audio Cable
  • Carrying Case
  • Power Supply
  • User Guide
  • Audix 1 Year Limited Warranty
