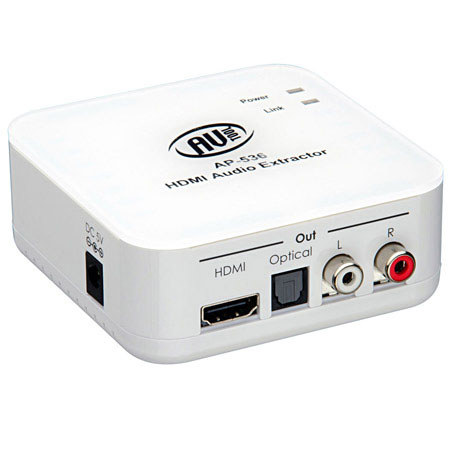

AV Toolbox AP-536 HDMI Audio Extractor, 225MHz Clock Rate, 192kHz HDMI/48kHz Audio

SKU: AVAP536

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AV Toolbox AP-536 Specifications

  • Signal Input: HDMI

    Type A HDMI connector

  • Signal Output: HDMI

    Type A HDMI connector

  • Signal Output: Audio

    Optical audio connector

  • Signal Output: Analog Audio

    2 x RCA (L/R) connectors

  • Audio Format

    HDMI: LPCM 2.0/5.1/7.1, Dolby 5.1, DTS 5.1, DD+ Dolby TrueHD, DTS-HD Master Audio
    Optical: LPCM 2.0, Dolby 5.1, DTS 5.1
    L/R: Stereo audio

  • Sample Rate

    HDMI: Up to 192 kHz
    Optical Audio: 48 kHz

  • Audio Bandwidth

    20 Hz to 20 kHz

  • External Power Supply

    5 VDC, 1.2 A

  • Audio

    Extractor: FCC, CE, RoHS

  • Power Adapter

    UL, CUL, CE, PSE, GS, RoHS

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Operating Humidity

    10 to 90%, non-condensing

  • Storage Humidity

    10 to 90%, non-condensing

  • Dimensions (H x W x D)

    1.3 x 3.6 x 3.4" / 3.3 x 9.14 x 8.64cm

  • Weight

    3.2oz / 90.72g

  • UPC Code

    5029882087478

About AV Toolbox AP-536

The AV Toolbox AP-536 HDMI Audio Extractor is a compact device that allows you to extract embedded audio from an HDMI signal. Some video displays accept an HDMI video signal but do not provide a way to process the embedded audio. The AP-536 will extract, process and present for distribution many of the standard embedded audio formats and provide both optical and analog outputs for connection to your audio amplification system. Fully compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0, the AP-536 HDMI Audio Extractor operates at a clock speed of 225 MHz and sample rates of 192kHz and 48 kHz for HDMI and Audio signals respectively. Full support of high Bitrate audio signals is provided and cable distances of up to 50 feet (15 meters) are possible for 1080p HDMI signals. An AC adaptor is provided.

AV Toolbox AP-536 Features

  • Supports high bit-rate audio signals
  • Supports cable distances of up to 50' for 1080p HDMI signals
  • Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0
  • Supports HDMI sample rates up to 192 kHz
  • Selectable audio EDID of TV, LPCM 2.0, or Bitstream
  • Audio spectrum sample rate of 48 kHz
  • 225 MHz clock rate
  • Simple installation
  • Low power consumption

Key Features

  • 225 MHz clock rate
  • Simple installation

What's in the box:

  • AV Toolbox AP-536 HDMI Audio Extractor
  • AC Adapter
  • AV Toolbox Warranty
