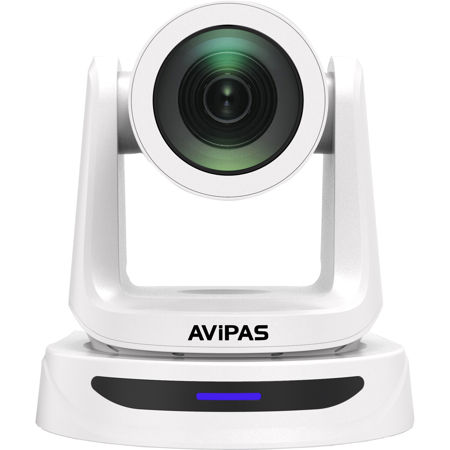

AViPAS AV-2020 Full HD All-In-One 20x PTZ Camera with PoE+, White

SKU: AVAV2020W MFR: AV-2020W
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the AViPAS PTZ camera's Full HD 1080p resolution.
  • Experience smooth, remote control with 20x zoom, perfect for large conference rooms.
  • Easily connect via HDMI, 3G-SDI, or USB for versatile video conferencing setups.
  • Utilize PoE+ for simplified installation and power, reducing cable clutter in any space.
  • Achieve precise camera movements with smooth pan, tilt, and zoom functionality.
  • Stream live events with ease using networkable features and multiple IP protocols.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AViPAS AV-2020 Specifications

  • Color

    White

  • Video Format

    HDMI: 1920x1080P60/59.94/50/30/29.97/25/24; 1920x1080I60/59.94/50
    1280x720P60/59.94/50/30/29.97/25

    SDI: 1920x1080P60/59.94/50/30/29.97/25/24; 1920x1080I60/59.94/50
    1280x720P60/59.94/50/30/29.97/25

    USB: 1920x1080P30; 1280x720P30; 1024x576P30; 960x540P30; 720x576P30; 640x480P30; 640x360P30; 352x288P30; 320x240P30

  • Video Format (Contd.)

    RJ45: 1920x1080@1-30 / 1280x720@1-30 / 1024x576 @1-30 (Main stream)
    1280x720@1-30 / 1024x576@1-30 / 640x360 @1-30 (Sub stream)

  • Video Interface

    HDMI,3G-SDI, RJ45, USB2.0

  • Sensor

    1/2.8" 2.1MP CMOS sensor

  • Zoom

    f4.9-98mm, F1.5-3.0 View angle: 60 Degree (Far)-3.23 Degree (Near)

  • Rotation Angle

    Pan: -170 Degree - +170 Degree Tilt: -90 Degree - +90 Degree

  • Rotation Speed

    Pan: 0 Degree -120 Degree /s Tilt: 0 Degree -80 Degree /s

  • Preset

    Remote controller: 10; RS232: 128; Accuracy: 0.1 Degree

  • Control Port

    RS232, RJ45 (VISCA over IP, ONVIF), USB2.0 (UVC1.1)

  • Network Speed

    100M

  • Video encode

    H.264/H.265 (default: H.264)

  • Bit Rate Control

    Variable Bit Rate, Constant Bit Rate

  • Video Bit Rate

    0Kbps-15360Kbps

  • IP Protocol

    TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif

  • PoE+

    Support

  • Daisy Chain

    RS232 serial daisy chain (up to 7 units under VISCA protocol)

  • Minimum Lux

    0.1 Lux ( F1.5)

  • White Balance

    Auto/Indoor/Outdoor/Manual/AWT/PUSH

  • Exposure

    Auto/Manual/Bright/Shutter/Iris

  • Focus

    Auto/Manual

  • Iris

    Auto/Manual

  • Electric Shutter

    Auto/Manual

  • Gamma

    Support

  • WDR

    Support

  • BLC

    Support

  • 2D/3D Noise Reduction

    Support

  • Anti-Flicker

    OFF/50Hz/60Hz

  • H/V Flip

    Support

  • Input Voltage

    DC12V/ PoE+

  • Power Consumption

    11W

  • Dimensions

    6.6 x 6.6 x 7.1" (67.5 x 168 x 180.5mm)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Code

    858738005640

About AViPAS AV-2020

AV-2020 all-in-one 20x PTZ camera features a 1/2.8 inch 2.1MP sensor, with advanced ISP, providing full HD video. 20x optical zoom lens with 60 Degree field of view ensures clear and distortion-free imaging within 100 feet. Resolution is up to 1920 x1080 with a frame rate up to 60fps. It supports H.264 and H.265 video compression with low network delay. AV-2020 has IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface, compatible with any video conferencing/streaming software. It also supports line in audio through IP (embedded audio though IP ONLY), AAC and LPCM audio encoding. Control protocol options include VISCA, PELCO-P, PELCO-D, VISCA over IP (over both TCP and UDP) and ONVIF.

AViPAS AV-2020 Features

  • Advanced ISP, 1/2.8 inch 2.1MP sensor, providing full HD video
  • 20x optical zoom lens, 2x digital zoom with 60-degree FOV
  • IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface
  • White Balance/ Exposure/ Focus/ Iris can be adjusted manually
  • Support PoE: one single CAT5/6 for video, control, and power
  • Support line-in audio function: through IP stream only. AAC and LPCM audio encoding
  • Control options: RS232/UVC1.1; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF
  • Support daisy chain, max 7 cameras connected under VISCA protocol

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Capture crystal-clear video with the AViPAS PTZ camera's Full HD 1080p resolution.
  • Experience smooth, remote control with 20x zoom, perfect for large conference rooms.
  • Easily connect via HDMI, 3G-SDI, or USB for versatile video conferencing setups.
  • Utilize PoE+ for simplified installation and power, reducing cable clutter in any space.
  • Achieve precise camera movements with smooth pan, tilt, and zoom functionality.
  • Stream live events with ease using networkable features and multiple IP protocols.

What's in the box:

  • AViPAS AV-2020 Full HD All-In-One 20x PTZ Camera with PoE+ (White)
  • Power Adapter
  • Power Cord
  • RS-232 Control Cable
  • USB2.0 Cable
  • Remote Controller
  • User Manual
  • AViPAS 2 Year Limited Warranty
