Aviom MT-X Expansion Box for A-16II / A-16 Personal Mixers c

SKU: AVIMTX

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the Aviom MT-X Expansion Box do for my Personal Mixer?

The Aviom MT-X Expansion Box provides robust protection for your Personal Mixer's case and connectors. It also enhances your audio connectivity options, simplifying connections to a wide range of monitoring devices.

How does the MT-X Expansion Box attach to my Personal Mixer?

The MT-X Expansion Box attaches to the built-in mounting holes on the underside of your Personal Mixer, usually in conjunction with an MT-1 Mic Stand Mount.

What types of audio connections does the MT-X Expansion Box include?

The MT-X Expansion Box includes both 1/8-inch and 1/4-inch stereo headphone jacks. It also features separate XLR left/right unbalanced line-level audio outputs.

Does the MT-X Expansion Box offer any power solutions?

Yes, when equipped with an MT-X, your Personal Mixer is designed to be powered over the Cat-5 cable from an A-16D or A-16D Pro A-Net distributor.

What is the function of the heavy-duty locking EtherCon connector on the MT-X?

The heavy-duty locking EtherCon connector is used for the A-Net In on the MT-X. It ensures a secure and reliable connection.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Aviom MT-X Expansion Box Specifications

  • Audio Outputs

    1/4-inch TRS stereo, headphone or line level
    1/8-inch TRS stereo, headphone or line level
    XLR left/right audio outputs, unbalanced

  • A-Net I/O

    1 A-Net In, EtherCon RJ45 connector

  • Mounting

    Attaches with three screws to bottom of A-16II or A-16 Personal Mixers
    Requires MT-1 Mic Stand Mount
    Three 6-32, 3/8-inch long screws included

  • Dimensions (W x D x H)

    10.6 x 1.44 x 2.38" (269.2 x 36.6 x 60.45 mm)

  • Weight

    1 lbs (0.45 kg)

1 Accessories for Aviom MT-X Expansion Box for A-16II / A-16 Personal Mixers c

  • All Accessories (1)
  • Adapters & Mounts (1)

About Aviom MT-X Expansion Box

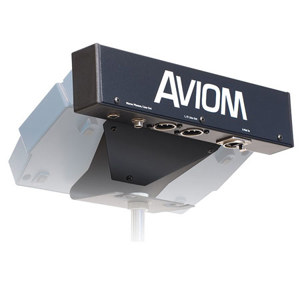

Let the Aviom MT-X Expansion Box elevate your audio experience by offering robust protection and enhanced audio connectivity for your A-16II or A-16 Personal Mixers. This expansion box is meticulously designed to safeguard your mixer's case and connectors, ensuring longevity and optimal performance.

The MT-X Expansion Box simplifies the connection process to a wide range of monitoring devices, making it a versatile addition to your audio equipment. It seamlessly attaches to the built-in mounting holes on the underside of your Personal Mixer, in conjunction with an MT-1 Mic Stand Mount, for a secure and stable setup.

Equipped with an MT-X, your Personal Mixer is designed for power over the Cat-5 cable from an A-16D or A-16D Pro A-Net distributor, offering a streamlined and efficient power solution. The MT-X Expansion Box boasts a variety of audio connections, including both 1/8-inch and 1/4-inch stereo headphone jacks. It also features separate XLR left/right unbalanced line-level audio outputs for enhanced audio control and flexibility.

The A-Net In on the MT-X utilizes a heavy-duty locking EtherCon connector, ensuring a secure and reliable connection. All these connections are conveniently located on the underside of the MT-X case, making it easy to manage your audio setup. Experience the difference in audio quality and convenience with the Aviom MT-X Expansion Box for A-16II / A-16 Personal Mixers.

Aviom MT-X Expansion Box Features

  • Provides robust protection to the Personal Mixer's case and connectors
  • Attaches easily to any Personal Mixer
  • 1/4-inch and 1/8-inch stereo headphone outputs
  • XLR left/right line-level audio outputs (unbalanced)
  • EtherCon connector for A-Net In
  • Requires MT-1 Mic Stand Mount

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Robust protection for A-16II / A-16 Personal Mixers with the Aviom MT-X Expansion Box
  • Simplified connections to a wide array of monitoring devices for versatile audio setup
  • Power over Cat-5 cable feature when paired with A-16D or A-16D Pro A-Net distributor
  • Multiple audio connections including 1/8-inch and 1/4-inch stereo headphone jacks
  • Separate XLR left/right unbalanced line-level audio outputs for enhanced audio control
  • Heavy-duty locking EtherCon connector for secure and reliable A-Net In connection

What's in the box:

  • Aviom MT-X Expansion Box
  • Mounting Hardware
  • Aviom Warranty
