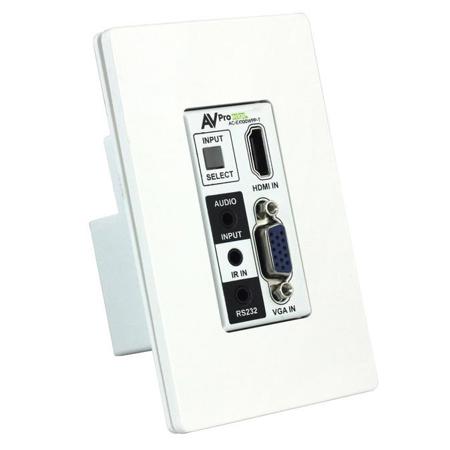

AVPro Edge Auto-Switching 100 Meter HDBaseT Wallplate Transmitter

SKU: AVPEX100WPPT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVPro Edge Wallplate Transmitter Specifications

Video
  • Video Resolutions

    Up to 4K60 4:2:0 & 4:4:4

  • VESA Resolutions

    Up to 2560 x 2048 (QSxGA)

  • HDR Resolutions

    4K24 4:2:2 12 BIT, 4K24 4:2:0 10 Bit

  • VGA Resolutions

    Up to DCI 2K, 1080P 60, 1900 X 1080 X 60

  • Color Space

    YUV, RGB (CSC:REC. 601, REC.709, BT2020, P3 D6500)

  • Chroma Subsampeling

    4:4:4, 4:2:2, 4:2:0 Supported

  • Deep Color

    Upto 12 Bit with 4K

  • Audio Formats Supported

    PCM 2.0 CH, LPCM 5.1&7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos

Distance

Jump to...
  • Distance 1080P

    330' (100m)

  • Distance 4K & HDR

    230' (70m) (With CAT6A/7)

Environment

Jump to...
  • Operating Temperature

    23 to 125 Degree F (-5 to 51 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Humidity Range

    5-90% RH (No Condenstion)

  • Power Consumption

    8 Watts (16.5 when paired)

  • Power Supply

    Input: AC 100-240V - 50/50HZ
    Output:DC 5V 2A (Mini USB)

General

Jump to...
  • Wall Space

    Single Gang

  • Compatible Box Types

    Mud Rings, Stud Mount, Clamp Mount, Metal & Plastic Boxes, LV Boxes

  • Dimensions (H x D x W)

    2.75 x 2.55 x 1.22" (70 x 65 x 31mm)
    (Without Wall Decora Cover)

  • Weight

    0.3 lb (136g)

  • Bandwidth

    10.2 GBPS

  • CEC

    Yes

  • HDCP

    HDCP2.2 and Earlier

  • Ethernet

    10/100

  • UPC Code

    859762007174

About AVPro Edge Wallplate Transmitter

AVPro Edge's auto-switching HDBaseT wall plate transmitter is the world's ONLY single-gang, dual input VGA & HDMI auto sensing HDBaseT (over single CAT5e or better) Transmitter available today. Simplify installations in schools, offices, meeting rooms and huddle rooms. Once integrated into your client's system he now has the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. VGA supports DCI 2K, 1080P, 1920 x 1200 x 60. In addition to its compact and robust design, it transmits the digital signal up to 100 meters (328') giving you ultimate flexibility, especially in large rooms like libraries or auditorium style rooms/classrooms. AVPro Edge's Military grade performance insures system stability for years to come.

Key benefits of using AC-EX100WPP-UHD-T

1) Ultra High Defination: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user. Our AC-EX100WPP-UHD-T supports 4K up to 70M (230ft) with crystal clear 4K Resolution & 100M (330ft) on 1080P

2) Distance: By using AC-EX100WPP-UHD-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft)

3) Auto Sensing: This wall plate is designed to be a "Set it & forget it" piece of hardware. When the user plugs in their device (BYOD), the wall plate automatically senses the signal and makes it active. If both inputs are in use, there is a simple button on the front to toggle inputs.

4) Control: IR & RS-232 allow control of a rack or standalone projector or display.

5) Power: No local power required when you use the AC-EX100-UHD-R. Power is provided by ultra-stable PoE technology. Optionally you can power it locally for use with any HDBaseT Receiver.

6) Single Gang: Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever!

4K Wall Plate Extender Applications
• Conference/huddle room configurations where many sources types can be used, like computers, players, etc...
• Extends VGA and HDMI up to 100M (330ft) for large auditorium type scenarios.
• To carry the control signals (IR/RS232) for third party control integration for turning components on and off and switching channels, etc.
• Create simple presentation venues, with audio, that are plug and play and reliable.
• Auto sensing, so the end user has ZERO configuration - Anywhere where non-technical users will access the system.

AVPro Edge Wallplate Transmitter Features

  • HDMI 2.0 & VGA Inputs
  • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
  • HDR 4:2:2 12 Bit Support
  • DCI 2K, 1080P, 1920 x 1080 x 60 VGA Support
  • HDCP 2.2 & Earlier Supported
  • 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
  • CEC Pass Through
  • No Local Power Necessary (Powered by AC-EX100-UHD-R)
  • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
  • Rugged, long-life chassis
  • Plug & Play auto input sensing
  • Select-able input (If both are plugged in)
  • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.
  • 3.5mm Input for audio (with VGA input only)
  • Single UTP/STP LAN cable (CAT-5E/6A) for all signals
  • ESD protection circuitry (Inputs / Outputs) till 7KV.
  • Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
  • Transfer IR & RS-232 signals from Tx to Rx (From Control Processor)
  • I-Pass Feature for control system "pass-through IR"
  • 3-20v protection circuit built in for safe IR transport
  • Compatible with HDBaseT displays, projectors, AVR's
  • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos.
  • Can Cascade for ultra-long distance

Key Features

  • HDMI 2.0 & VGA Inputs
  • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
  • HDR 4:2:2 12 Bit Support
  • DCI 2K, 1080P, 1920 x 1080 x 60 VGA Support
  • HDCP 2.2 & Earlier Supported
  • 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)

What's in the box:

  • Auto-Switching 100 Meter HDBaseT Wallplate Transmitter
  • Decora Wall Plate Cover (White)
  • AVPro Edge 10 Year Limited Warranty
