Axis Communications T8120 Specifications

  • Function

    Data and power are fed to a network video product through an Ethernet cable; use together with a PoE splitter for a network video product without built-in PoE support

  • Data Rate

    10/100/1000 Mbps

  • Connectors

    Shielded RJ-45, EIA 568A and 568B

  • Network Cables

    Shielded category 5 (or higher) Ethernet

  • Wiring

    Mode B; data provided over pairs 1/2 and 3/6, power over spare pairs 4/5 () and 7/8 (-)

  • Output Power

    48 VDC (maximum 15.4 W/port)

  • Input Power

    AC input voltage: 100 to 240 VAC (50/60 Hz)
    AC frequency: 47 to 63 Hz
    AC input current: 0.5 A maximal

  • Installation & Management

    Plug-and-play installation; midspans automatically detect all devices with support for PoE and supply inline power Local LED management display

  • Port Auto-Sensing

    Standard IEEE 802.3af auto-sensing
    Pre-standard backward compatibility algorithm

  • Display & Indicators

    All port interfaces are located on the front panel for easy access and real-time network monitoring
    System: AC power
    Channel indicator - power and fault

  • Compliance

    IEEE 802.3 standard (when no inline power is supplied) and IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)

  • Mounting

    Wall or shelf mounting

  • Approvals

    FCC Part 15 Class B with FTP cabling EN55022 (CISPR 22) Class B with FTP cabling
    Safety: cUL/UL, TUV, CE

  • Operating Conditions

    Temperature: 32 to 104 deg. F / 0 to 40 deg. C
    Humidity: 10 to 90% RH (Non-condensing)

  • Dimensions (H x W x D)

    1.3 x 2.1 x 5.5" / 33 x 53 x 140mm

  • Weight

    1lbs / 450g

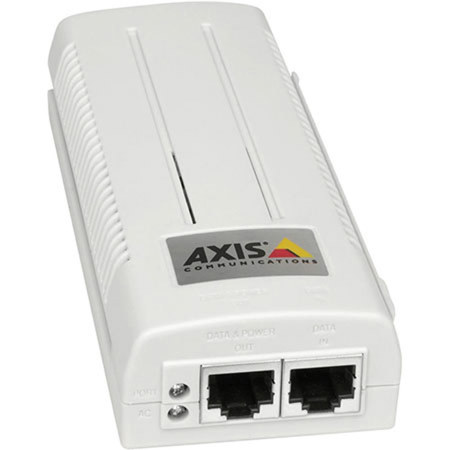

About Axis Communications T8120

The Axis Communications T8120 15W Power over Ethernet Midspan (1-Port) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. You simply connect the T8120 PoE midspan to the network and the network video product is supplied with power.

The Axis Communications T8120 PoE midspan provides power (maximum 15.4W) over an Ethernet cable to a network video product with built-in PoE support. It enables network cameras and video encoders to be installed in areas where traditional power cabling and outlets are unavailable or difficult to install. The Axis Communications T8120 PoE midspan is IEEE 802.3af compliant, which ensures compatibility with most Axis products that have built-in support for PoE.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Power your network cameras easily with this Axis PoE midspan, up to 15.4W!
  • Enjoy plug-and-play installation; this midspan automatically detects PoE devices.
  • This compact Axis midspan offers versatile wall or shelf mounting options.
  • Ensure reliable power and data with shielded RJ-45 connectors for your cameras.
  • Monitor network activity with front panel indicators for power and fault status.
  • Extend power to your IP cameras up to 100 meters using standard Ethernet cables.

What's in the box:

  • Axis Communications T8120 15W Power over Ethernet Midspan
  • Axis Communications 3 Year Limited Warranty
