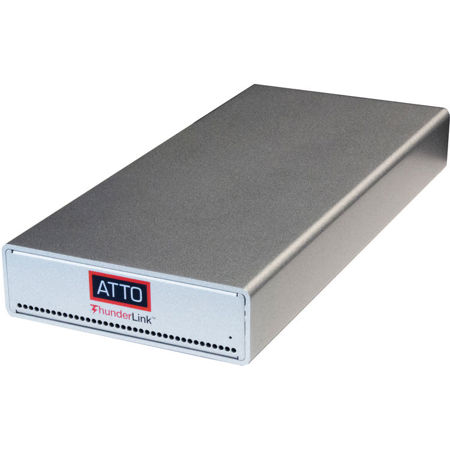

ATTO Technology ThunderLink FC 3162 2-Port 40Gb/s Thunderbolt 3 to 2-Port 16Gb/s Fibre Channel Adapter with 2x SFP+ LC Optical Modules, Desktop

SKU: AYTLFC3162D0

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ATTO Technology ThunderLink FC 3162 Specifications

  • Input Connectors

    2x 40GB/s Thunderbolt

  • Output Connectors

    2x 16GB/s Fibre Channel

  • Form Factor

    Desktop

  • User Benefits

    Superior performance for a wide range of applications
    Low power consumption
    Increased switch port availability
    Reduced cost perMB of data transferred
    Seamless integration into existing FC SANs
    Support for virtualized server environments
    Extensive certification with SAN infrastructure components

  • Management Tools

    ATTO ConfigTool (with GUI) management and configuration utility

  • Operating System Support

    Windows 7 and later
    Planned support for Mac platforms

  • Power Adapter

    Input: 100-240VAC, 50-60Hz, 0.6A Max
    Output: 12VDC

  • External Connectivity

    Dual (2) 16Gb SFP+ LC Optical modules
    External LEDs for on-line and speed status for each port

  • Operating Temperature

    Temperature: 0 to 36 deg. C (32 to 97 deg. F) at 10000', 40 deg. C (104 deg. F) at 6000'
    Humidity: 10-90% non-condensing

  • Storage Temperature

    Temperature: -40 to 70 deg. C (-40 to 158 deg. F)
    Humidity: 5-95% non-condensing

  • Compliance

    FCC Part 15, Subpart B, Class B
    EN55022, Class B/EN 55024
    EN60825-1
    EN60825-2
    EN60950-1
    cTUVus
    EU RoHS (201 1/65/EC)
    TAA Compliant

  • Dimensions (DxWxH)

    8.66 x 4.07 x 1.20" (219.96 x 103.38 x 30.48mm)

  • UPC Code

    603175008859

About ATTO Technology ThunderLink FC 3162

Just imagine the power of high-speed data transfer at your fingertips. The ATTO ThunderLink FC 3162 is a robust, compact, and advanced external Thunderbolt 3 to Fibre Channel adapter. It seamlessly connects Thunderbolt-enabled workbooks and mobile workstations to 16Gb/s Fibre Channel networks and storage devices.

This reliable adapter is equipped with dual channel configurations, making it an ideal solution for failover and load balancing. It leverages ATTO's exclusive MultiPath Director technology, ensuring smooth and uninterrupted data flow. With the combined power of Thunderbolt 3 and ATTO's time-tested expertise in Fibre Channel, users can achieve the highest I/O and data throughput for advanced video and IT applications.

The ThunderLink FC 3162 is capable of achieving the maximum line rate of Thunderbolt 3. It comes with two optical SFP+ LC modules, providing flexibility in connectivity options. The US model includes a 110V power cord for convenience.

This high-speed adapter supports dual port 40Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support. It features ATTO's exclusive Advanced Data Streaming (ADS) Technology, ensuring smooth and reliable data transfers. The adapter auto-negotiates to 16Gb, 8Gb, 4Gb devices, making it compatible with a wide range of devices and networks.

The ThunderLink FC 3162 supports Windows 10, 8.1, 7 and has planned support for Mac platforms. It comes with ATTO ConfigTool, a user-friendly Graphical User Interface, for customized performance settings. For added security, it features a Kensington Security Slot for additional security via Kensington Lock.

This durable adapter supports 4K video file transfer and display simultaneously with dual 40Gb/s Thunderbolt 3. It is backwards compatible with 20Gb/s and 10Gb/s Thunderbolt devices via a legacy adapter.

The ThunderLink FC 3162 is designed to provide fast, redundant, and highly available connectivity to Fibre Channel storage. It is engineered to manage latency for real-time applications. ATTO's exclusive Advanced Data Streaming (ADS) technology provides controlled acceleration of data to deliver the highest consistent performance and reliable data transfers for video editing, digital audio, video on demand, or database applications.

ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management, and monitoring of the device. With advanced troubleshooting and performance tuning capabilities, ConfigTool provides users with sophisticated diagnostics and the flexibility to control settings for specific applications.

The ThunderLink FC 3162 delivers high-performance and reliable connectivity solutions for the most demanding storage environments, including digital content creation, tape streaming and backup, rich content delivery, server clustering, and complex databases. It enables users to achieve the ultimate in I/O performance for real-time and transactional applications.

ATTO Technology ThunderLink FC 3162 Features

  • High-speed Thunderbolt 3 to 16Gb/s Fibre Channel adapter for seamless connectivity
  • Dual SFP+ LC optical modules included for versatile network integration
  • Advanced Data Streaming (ADS) Technology for smooth, reliable data transfers
  • Supports 4K video transfer and simultaneous display with dual 40Gb/s Thunderbolt 3 ports
  • Auto negotiation with 16Gb, 8Gb, and 4Gb devices for broad compatibility
  • Intuitive ATTO ConfigTool for customized performance and easy device management

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience superior performance with this Thunderbolt 3 to Fibre Channel adapter.
  • Seamlessly integrate into existing FC SANs using this reliable ATTO Technology adapter.
  • Enjoy low power consumption and increased switch port availability with this adapter.
  • This Fibre Channel adapter supports virtualized server environments for efficiency.
  • Reduce cost per MB of data transferred with this high-speed Thunderbolt 3 adapter.
  • Manage easily with ATTO ConfigTool for GUI management and configuration utility.

What's in the box:

  • ATTO Technology ThunderLink FC 3162 2-Port 40Gb/s Thunderbolt 3 to 2-Port 16Gb/s Fibre Channel Adapter
  • 2x SFP+ LC Optical Module
  • 110V Power Cord
  • ATTO Technology 3 Year Warranty
