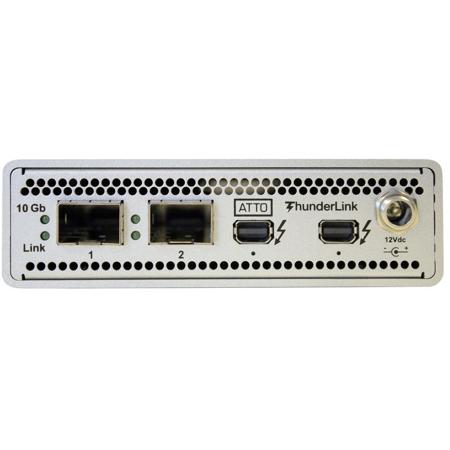

ATTO Technology ThunderLink NS 2102 2-Port 20Gb/s Thunderbolt 2 to 2-Port 10Gb Ethernet Desklink Device, LC SFP+ SR Interface

ATTO's 10 Gigabit Ethernet to Thunderbolt Desklink Devices provide maximum throughput for high bandwidth network connectivity for demanding IT and media and entertainment applications.

• Dual 10GbE (SFP+ LC Optical) ports
• Supports 4K video file transfer and display simultaneously with dual 20Gb/s Thunderbolt 2
• Supports ATTO Xtend SAN iSCSI initiator Daisy chain up to 5 additional Thunderbolt technology-enabled devices
• Backwards compatible with 10Gb/s Thunderbolt
• Exclusive Advanced Data Streaming (ADS) Technology
• Minimized interrupts for low latency
• TCP, UDP and IPv4 checksum offloading and TX/TCP segmentation offloading
• Industry's lowest power consumption
• 3-year standard product warranty
• RoHS Compliant
• Data rate per port: 10GbE
• TCP, UDP, IPv4 and IPv6 checksum offloading
• TX/TCP segmentation offload (Large Send Offload-LSO)
• Low latency interrupts
• Interrupt Coalescing/Moderation
• Interrupt levels INTA, MSI, MSI-x
• Data Center Bridging (DCB) support
• Priority-Based Flow Control 802.1Qbb rev.0
• Enhanced Transmission Selection 802.1Qaz rev.0 protocol 802.1Qaz rev.0 protocol
• Header splits and Replication in Receive
• Receive Side Scaling for multiple RX queues
• Direct Cache Access (DCA) eliminates cache misses and reduces CPU load
• IEEE 802.3 2005 flow control support
• 802.1p-Priority Encoding
• 802.1q-VLAN Tagging
• 802.3ad-Link Aggregation
• Override MAC Address
• VLAN support with tag insertion and stripping
• Plug and play specification support
• Advanced Packet Filtering

Applications
ThunderLink 10GbE Desklink Device solutions combine the unparalleled performance of 10 Gigabit Ethernet, the lossless benefits of Enhanced Ethernet and robustness of iSCSI initiator software, to meet the performance and economic needs of today's growing data centers. The ThunderLink NS 2102 is ideal for applications that require low latency, high bandwidth data transfers, such as data back-up and restoration, video-on-demand and video streaming, medical imaging and clustered databases.

Advanced Software Features
• Adaptive load balancing
• Teaming support
• PCI Hot Plug/Active peripheral interconnect

Management Tools
• Easy system monitoring with Simple Network, Management Protocol (SNMP) and Remote, Network Monitoring (RMON) Statistic Counters
• Watchdog Timer for chip/driver status monitoring

External Connectivity
• 10Gb/s, 1Gb/s, 100Mb/s SFP+ LC fiber-optic connectors
• 2 LED indicator per port
• LED Indicators: LINK (solid), ACTIVITY (blinking),
• LINK SPEED (ON = 10Gb, OFF = 1Gb)
