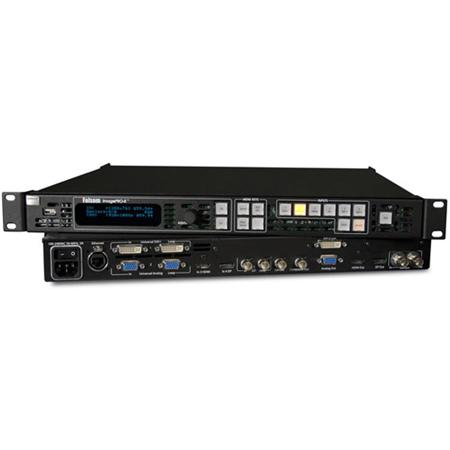

Barco ImagePRO-II Jr. All-in-One Video Scaler, Scan Converter and Switcher

SKU: BAR9004695

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco ImagePRO-II Jr. Scaler Specifications

  • Video Input Ports

    "1 x HD-15 VGA port
    1 x BNC port

  • Input 1, DVI-I Digital Formats

    All single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification

  • Input 1, DVI-I Analog Formats

    NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync

  • Input 1, DVI-I Analog Sampling

    Sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p

  • Input 1, DVI-I

    Active loop-through output of all input signals, including HDCP and EDID

  • Input 1, DVI-I Compatibility

    EDID version 1.3 compatible
    HDCP version 1.4 compatible

  • Input 2, HD-15 VGA Format

    NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync

  • Input 2, HD-15 VGA Sampling

    Sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p

  • Input 2, HD-15 VGA

    Active loop-through output of all input signals
    EDID version 1.3 compatible

  • Input 5 & 6 (Dual Output Option)Formats

    SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
    Re-clocked loop-through output

  • Video Output SD/HD/3G, SDI Formats

    SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424

  • Video Output DVI-D Formats

    All single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification
    EDID version 1.3 compatible
    HDCP version 1.4 compatible

  • Video Output HD-15 VGA Formats

    NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync
    EDID version 1.3 compatible

  • Genlock

    Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input

  • Remote control

    USB 1.1
    Ethernet RJ-45, 10/100 Mbps Autosense
    Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link.
    Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control

  • Environmental temperature

    32-104 Degree F (0-40 Degree C)

  • Environmental humidity

    0-95% noncondensing

  • Dimensions (W x D x H)

    17.00 x 14.25 x 1.75" (43.18 x 36.20 x 4.45cm)

  • Weight

    15.75lbs (7.144kg)

About Barco ImagePRO-II Jr. Scaler

Barco is proud to welcome an entry-level model to its ImagePRO-II family of all-in-one video scalers, scan converters and switchers. Building on the legacy of its family members, the brand-new ImagePRO-II Jr combines high-performance scaling with low total cost of ownership and is perfect for basic applications in the rental and staging, corporate AV, and visitor attractions markets.

Barco ImagePRO-II Jr. Scaler Features

  • Converts any input signal format to any output format
  • USB back up and restore
  • Field replaceable DVI connectors
  • DisplayPort and Analog I/O
  • 12-Bit Processing
  • Resolutions up to WQXGA (2560x1600)
  • Frame Rates up to 120fps for 1080p
  • Front Panel and Web Browser Control
  • System Configuration and Restore via USB
  • Audio Mezzanine Board Included
  • Access Embedded Audio for Video Inputs
  • Low latency

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Converts any input signal format to any output format
  • USB back up and restore
  • Field replaceable DVI connectors
  • DisplayPort and Analog I/O
  • 12-Bit Processing
  • Resolutions up to WQXGA (2560x1600)

What's in the box:

  • Barco ImagePRO-II Jr.
  • Barco 3 Year Parts and Labor Warranty
