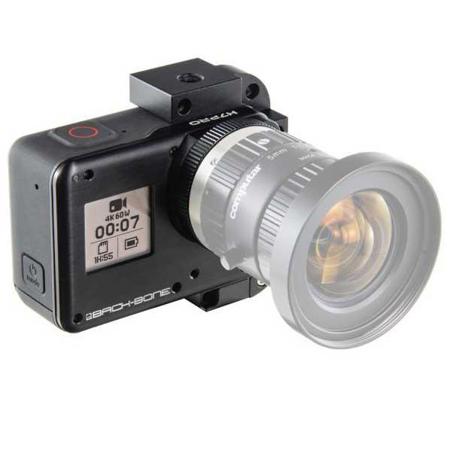

Back-Bone Ribcage H7PRO 12MP Modified GoPro Hero7 Black Digital Action Camera with C-Mount and Sidearm Mount

SKU: BBH7PRO

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Brian K : The description says it is compatible with certain lenses. Does it come with any lenses?Do you sell these lenses? Can I buy a complete setup?ANDREW R : Doe NOT include any accessory lenses, only the original Hero 7 lens. Uses a standard "C" mount for lenses. C mount lenses are available in many focal lengths and adapters are available to convert other lens mounts to C mount. What's in the box: Back-Bone Ribcage H7PRO 12MP Modified GoPro Hero7 Black Digital Action Camera Original Hero7 Lens Hero7 Lens Adapter Ring 2x 650nm IR-Cut Filter Sidearm Tripod Mounting Bracket Battery Frame Mount 5mm C-Mount Ring M12 to CS Adapter M12 Locking Ring Plastic Cap USB-C Cable Curved Adhesive Mount Flat Adhesive Mount Mounting Buckle Custom Back-Bone GOcase Back-Bone 6 Month Warranty
Shopper : Why Did You Choose This?DUSTIN B : I needed a small camera with a modifiable lens - and knowing GoPro's good name and brand and their high framerates, combined with Back Bone's custom modified rigs, this was going to be the perfect solution.

Reviews about this item

Review Summary

Back-Bone Ribcage H7PRO Specifications

  • MP4 Video

    3840 x 2880 /24/25/30 fps
    3840 x 2160 /24/25/30/50/60 fps
    2704 x 2028 /24/25/30/50/60 fps
    2704 x 1520 /24/25/30/50/60/100/120 fps
    1920 x 1440p /24/25/30/50/60 fps
    1920 x 1080 /24/25 /30/50/60/100/120/240 fps
    1280 x 960 /50/60 fps

  • Still Image

    12MP (4000 x 3000) RAW / JPG / HDR

  • Video Format

    .mp4 file format

  • Memory

    Up to 128GB SD card, class 10 or better required

  • Functions

    HyperSmooth video stabilization
    Live Streaming
    SuperPhoto HDR
    Portrait Video/Photo
    GPS
    Voice Control
    Manual Exposure Control
    Exposure Lock
    Electronic Image Stabilization
    Integrated Touch Screen
    Quik Integration

  • UPC Code

    037136048965

About Back-Bone Ribcage H7PRO

Unleash the amazing new features of the Hero7 Black by using your choice of lens! H7PRO is Compatible with M12, CS-Mount & C-Mount. Most other popular lens types can be mounted with optional adapters. Incredible HDR photos, live streaming video and industry leading HyperSmooth video stabilization. Karma ready with compatible M12 lenses. Also works with Entaniya ultra wide-angle fisheye lenses for 360 deg. video capture. Comes with custom Back-Bone GOcase and Sidearm Tripod Mounting Bracket!

Sidearm Tripod Mounting Bracket Included!
Our Sidearm accessory simply replaces the side door of the HERO5/6/7 Black and snaps on to provide four standard tripod mounting points. It's also fully compatible with the stock GoPro HERO5, 6 & 7 Black as well as our H5M12, H5PRO, H6PRO & H7PRO modified cameras.

Note:

Stock camera is not waterproof while Sidearm is connected.

Professional Shooting
Use a cost-effective C-Mount lens or attach your favorite SLR lens with an adapter. Use vintage glass like Bolex and Super-8. Pull focus, zoom and control iris settings for the perfect look. With the built in exposure lock and manual exposure controls of the HERO7 you can get a perfect, repeatable result. All that in a tiny package you can fit almost anywhere to get the shot.

Drones / Gimbals
The Ribcage H7PRO is Karma ready when using small M12 lenses and can be mounted to other Hero5/6/7 aerial platforms and gimbals. Customize your field of view by choosing your own lens, no need to lower the resolution for more zoom!

360 deg. Video Capture
Fully compatible with Entaniya, iZugar and many other high resolution circular fisheye lenses for full spherical capture with fewer cameras. Get a full 360 deg. capture with as little as 2 cameras or 360 deg. x 280 deg. with one camera! Get super crisp results from just one camera using the new 4K 4:3 mode! Max 5.7K/60 when stitching two cameras.

The Flexibility of C-Mount
C-Mount was developed in the 1920's for early film cameras. It was popular for home video cameras up until the 1970's and has since become the standard for high resolution security and machine vision cameras and lenses. As a result, there is a library containing countless lenses from almost 100 years. In addition, it's a common mount type for professional scientific and medical imaging equipment so you can attach your camera directly to many telescopes, microscopes and more! Another benefit is that C-Mount is so common that adapters exist for almost every lens type you can think of.

Back-Bone Ribcage H7PRO Features

  • Keep full 4K/60 resolution with narrow fields of view
  • Get professional looking defocused backgrounds
  • Live streaming
  • Next generation 'HyperSmooth' video stabilization
  • Use vintage lenses like Bolex & D-Mount
  • Optically correct fisheye distortion without processing
  • Focus, zoom and iris control for professional results not possible with the original fisheye lens
  • Add custom optical filters for your application
  • Create professional high resolution 4K/60 cinematic footage for less money
  • Fit a professional camera in a small space
  • Incredible macro
  • Shoot Infra-Red, NIR and NDVI (with appropriate lenses and filters)
  • Fit in small drones / gimbals
  • Connect to microscopes, telescopes and more

Key Features

  • Hypersmooth video stabilization
  • Live Streaming
  • SuperPhoto HDR
  • Portrait Video/Photo
  • GPS
  • Voice Control

What's in the box:

  • Back-Bone Ribcage H7PRO 12MP Modified GoPro Hero7 Black Digital Action Camera
  • Original Hero7 Lens
  • Hero7 Lens Adapter Ring
  • 2x 650nm IR-Cut Filter
  • Sidearm Tripod Mounting Bracket
  • Battery
  • Frame Mount
  • 5mm C-Mount Ring
  • M12 to CS Adapter
  • M12 Locking Ring
  • Plastic Cap
  • USB-C Cable
  • Curved Adhesive Mount
  • Flat Adhesive Mount
  • Mounting Buckle
  • Custom Back-Bone GOcase
  • Back-Bone 6 Month Warranty
