Beyerdynamic 9.5" TG 500SR UHF Single Channel Diversity Receiver for TG 500
See all Beyerdynamic items

Beyerdynamic 9.5" TG 500SR UHF Single Channel Diversity Receiver for Wireless System TG 500, 518-548 MHz

SKU: BD712272

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Beyerdynamic TG 500SR Specifications

System

System

Jump to...

  • Frequency Range

    518 - 548 MHz

  • Transmission Range

    Up to 120 m (line of sight)

  • Number of Active Channels

    18 per frequency band

  • Audio Frequency Response

    45 - 15 kHz

  • Audio Dynamic Range

    106 dB (A-weighted)

  • Operating Principle

    Analogue wireless microphone system with diversity receiver

Single Receiver

Jump to...

  • Output Level

    Max. +3 dBV / +5 dBu

  • Display

    2x LCD, white backlit

  • Mains Connection

    100 - 240 V AC with power adapter

  • Power Consumption

    3 W (typ.)

  • Antenna Connection

    2x BNC input

  • Ambient Temperature

    32 to 131 Degree F (0 to +55 Degree C)

  • Dimensions

    7.87 x 6.89 x 1.65" (200 x 175 x 42mm)

  • Weight

    33.86 oz (960g)

Other

Jump to...

  • UPC Code

    4010118712272

About Beyerdynamic TG 500SR

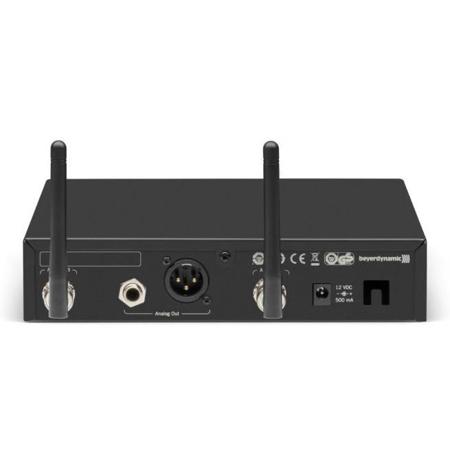

The heart of each beyerdynamic TG 500 wireless system is an attractively designed receiver with a robust metal housing and a clear parameterised front panel. Intuitively operating elements in combination with a backlit LC display enable a particularly user-friendly menu navigation. The frequency response of the system is from 45 to 15 kHz. A balanced XLR output and a balanced jack output are provided as analogue audio ports.

When mounting the single receiver into a 19" rack it requires 1 U; the supplied rack mount kit allows two 9.5" devices to be installed in one rack

Beyerdynamic TG 500SR Features

  • Intuitive, user-friendly menu structure
  • Up to 40 MHz switching bandwidth
  • Infrared interface for transmitting settings fromthe receiver to the transmitter
  • Backlit LCD display
  • Status display (battery, frequency, name)
  • Scan function
  • BNC antenna outputs
  • XLR and jack output (balanced)
  • Detachable BNC antennas
  • Pilot tone function

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Intuitive, user-friendly menu structure
  • Up to 40 MHz switching bandwidth
  • Infrared interface for transmitting settings fromthe receiver to the transmitter
  • Backlit LCD display
  • Status display (battery, frequency, name)
  • Scan function

What's in the box:

  • 9.5 " TG 500SR UHF Single Channel Diversity Receiver
  • Power Adapter
  • 2x Antennas
  • Rack Mount Kit
  • Quick Start Guide
  • Beyerdynamic 2 Year Limited Warranty
