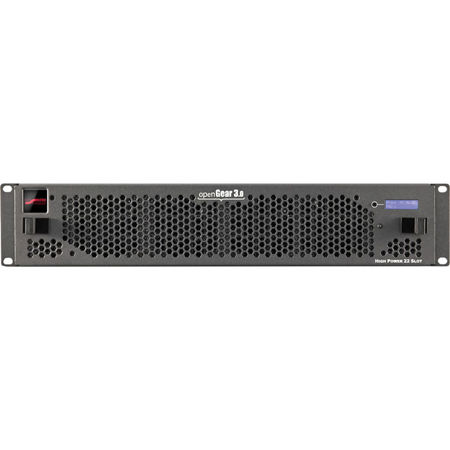

Blackmagic Design openGear 3.0 Frame with Cooling

SKU: BDOG3FRC

This item is no longer available.

Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

About Blackmagic Design openGear 3.0 Frame

Superior flexibility, power and control from the 3rd generation of the openGear platform. The broadcast world's first and only open-hardware platform and your platform of choice for your broadcast infrastructure needs. openGear 3.0 is the evolution of the industry's first and only open hardware and software platform. The next generation openGear frame, OG3-FR combines function, flexibility and power with advanced features like high powered 450 watt redundant power supplies, Gigabit Ethernet access to every card slot, 20 openGear card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution and a front LCD display for easy frame, IP address and fault identification.

• Robust 450 watt power supply with integral cooling
• Standard Ethernet connectivity
• 2RU frame houses up to 20 openGear cards
• Supports any mix of analog, digital, video and audio modules in the same frame
• Modular I/O panels for connector flexibility
• Removable front door for easy fan servicing
• Frames come standard with cooling
• Front LCD display for name, IP and fault identification
• 2 independent looping references with connection to each card slot

Modular Frame Architecture
The OG3-FR offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio and fiber. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear cards in the OG3 frame.

Robust Power Supplies
The OG3-FR can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 450 watt supply can fully power a loaded frame and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED and a front mounted power switch.

Cooling
The OG3-FR frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back airflow. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Gigabit Ethernet
The openGear 3.0 frame offers optional gigabit Ethernet to every slot within the OG3-FR chassis, enhancing communication speed and connection options to all openGear cards. The openGear 3.0 frame provides more communication options and flexibility to openGear card manufacturers; ultimately enhancing the openGear platform and experience. The 21-port Ethernet switch, built in to the frame's network control card, future-proofs the openGear 3.0 platform for users and openGear partners for years to come. Gigabit Ethernet is only available with the Advanced Network Control option.

Data Safe
Data Safe dramatically reduces downtime when failed modules are swapped out. All module parameters are stored on the local frame network card and automatically restored when a hot-swap is performed. With some cards reaching well over 100 parameters, including audio channel delays and video proc level, Data Safe ensures a proper reconfiguration of replacement cards without the hassle of trying to remember previous settings.

Data Safe can be enabled or disabled on a per slot basis through the frame's network controller card. Data Safe's intelligent design will only restore parameters when it detects a compatible replacement product. Data Safe is only available with the advanced networking control option.

What's in the box:

  • Blackmagic Design openGear 3.0 Frame with Cooling
  • Blackmagic Design 1 Year Limited Warranty
