Behringer XENYX 1003B Specifications

Mono Inputs

Mono Inputs

Jump to...
  • Microphone Input

    Balanced XLR, Discrete Input Circuit

  • Mic EIN (22 Hz-22 kHz) 50 Ohm Source

    Typ. -128 dB A-Weighted

  • Frequency Response Gain +15 dB (-3 dB)

    10 Hz - 80 kHz

  • Frequency Response Gain +60 dB (-3 dB)

    20 Hz - 60 kHz

  • Gain Range

    +15 dB to +60 dB

  • Max Input Level

    +6 dBu @ +15 dB Gain

  • Input Impedance

    1.8 k Ohm Balanced

  • Distortion (THD+N) Gain 15 dB

    0.006 % @ 1 kHz -5 dBu

  • Mono Line Inputs

    1/4" TRS Connector Balanced

  • Impedance

    18 k Ohm Balanced

Stereo Inputs

Jump to...
  • Line Input

    1/4" TRS Connector Unbalanced

  • Gain Range

    -Infinite to +15 dB

  • Max Input Level

    +20 dBu @ Gain 12O'clock

Equalizer

Jump to...
  • Low

    80 Hz/ +/-15 dB

  • Mid

    2.5 kHz/ +/-15 dB

  • High

    12 kHz/ +/-15 dB

Outputs

Jump to...
  • Main Output

    1/4" TRS Connector Balanced

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • MON & FX Output

    1/4" TRS Connector Unbalanced

  • STREAM/RCA Output

    RCA Connector Unbalanced

  • Phones Output

    1/4" TRS Connector Unbalanced

  • Main Mix Noise

    Balanced Output

  • Main Mix @ -Infinite

    -99 dBu A-Weighted

  • Channel @ -Infinite

    -99 dBu A-Weighted

  • Channel @ -Infinite

    -99 dBu A-Weighted

  • Main Mix @ 0 dB

    -79 dBu A-Weighted

  • Main Mix @ 0 dB

    -79 dBu A-Weighted

  • Channel @ 0 dB

    -75 dBu A-Weighted

Phantom

Jump to...
  • External Power

    48 V

  • Battery Power (New)

    17.5 V

Power Supply

Jump to...
  • Power Consumption

    8 W

  • Adapter Input

    100-240 V-, 50/60 Hz, 0.5 A

  • Adapter Output

    18 V DC 1.0A

Battery

Jump to...
  • Battery

    High Quality Alkaline 9V PP3
    2x for Main Power, 3x if Phantom Power is Also Required

  • Battery Life

    4 Hours

  • Battery Info

    Optional, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    9-Volt

  • Battery Quantity

    2

Physical

Jump to...
  • Standard Operating Temperature Range

    41 Degree F - 113 Degree F (5 Degree C - 45 Degree C)

  • Dimensions (W x D x H)

    11.7 x 8.6 x 3.1" (297.0 x 219.2 x 78.4mm)

  • Weight

    4.59 lbs (2.08kg)

  • UPC Code

    192223239456

About Behringer XENYX 1003B

It's time to elevate your audio mixing experience with the XENYX 1003B Premium Analog Mixer, a professional-grade tool designed for discerning sound engineers and audio enthusiasts. This robust mixer boasts 10 input channels, including five state-of-the-art mic preamps, ensuring that you can effortlessly achieve premium-quality sound that resonates with clarity and depth, whether you're performing live, streaming, podcasting, or recording in a studio setting.

Crafted with the renowned XENYX microphone preamps, the 1003B mixer delivers warm, ultra-musical sound and supports 48V phantom power, accommodating even high-end studio microphones for unparalleled audio fidelity. The versatility of this mixer is further enhanced by its optional battery operation, allowing you to produce exceptional sounding mixes in any location, free from the constraints of a power outlet.

The 1003B mixer is an ideal companion for mobile mixes or recording sessions, powered effortlessly by standard 9V batteries. This ultimate on-the-go recording setup empowers you to mix up to 10 sources simultaneously. Outputs are engineered to deliver crystal-clear audio, whether you're monitoring via headphones or connecting to external speakers through high-quality RCA and impedance-balanced 1/4" TRS jack connectors.

Control is intuitive and precise with the XENYX 1003B. Each channel is equipped with a dedicated 60-mm fader, allowing for meticulous control over individual levels. The onboard 3-band channel EQ provides precise and musical sound shaping for any input signal, ensuring your mix is both balanced and dynamic. An integrated post-fader FX send control per channel offers the flexibility to connect any external FX processor, adding another layer of creativity to your mix.

The monitor bus feature of the 1003B sums up channel signals before fader and EQ adjustments, enabling the creation of an independent monitor mix - a crucial function for live performance scenarios.

Bundled with this exceptional mixer are 3 XM8500 Dynamic Cardioid Microphones, each delivering high-quality, versatile audio capture for a multitude of applications. The inclusion of 3x 15' XLR cables ensures you have everything you need to connect and start mixing right out of the box.

The XENYX 1003B Premium Analog Mixer Bundle is not just a powerhouse of functionality; it's also a testament to affordability without compromising on quality. Whether you're setting up a rack-mountable studio environment or need a reliable mixer for field recordings, this bundle stands as the perfect partner for professional-grade microphones and discerning audio professionals.

Behringer XENYX 1003B Features

  • Ultra-low noise analog mixer for streaming, podcasting and recording
  • 2 Award winning XENYX microphone preamps with inserts for external processing
  • 3 Award winning XENYX microphone preamps with stereo line inputs
  • 1 Dedicated stereo line input channel
  • Analog mixing and 3-band equalization for pure sound
  • Optional battery operation for mobile recording (9V batteries not included)
  • 60-mm faders for accurate level control
  • Phantom power for use with condenser microphones
  • Post Fader FX send control per channel for using external effects processors
  • Pre EQ Monitor send control per channel for an independent monitoring mix
  • High-quality monitoring, headphones, and streaming outputs

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Key Features

  • Premium analog mixer with 10 input channels for versatile audio mixing
  • Features five state-of-the-art XENYX mic preamps supporting 48V phantom power
  • Optional battery operation for on-the-go mixing and recording sessions
  • Outputs deliver crystal-clear audio via headphones, RCA, and 1/4" TRS jack connectors
  • Integrated 3-band channel EQ and post-fader FX send control for precise sound shaping
  • Bundle includes 3 XM8500 Dynamic Cardioid Microphones and 3x 15' XLR cables for immediate setup

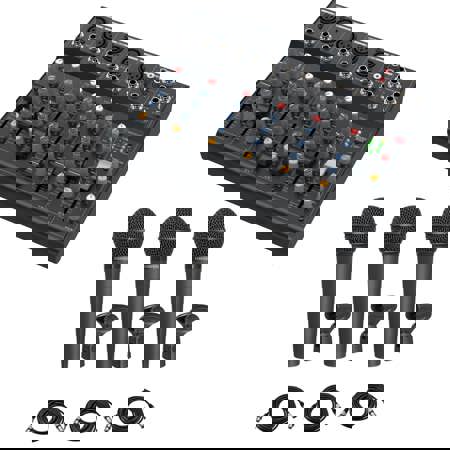

What's in the box:

  • Behringer XENYX 1003B Premium Analog Mixer with 5 Mic Preamps
  • Power Adapter
  • Adorama 1 Year Limited Warranty
  • 3x Behringer XM8500 Dynamic Cardioid Mics
  • 3x Stand Adapter Microphone Clips
  • 3x Impact Resistant Mic Case
  • 3x 15' XLR M to F Professional Microphone Cable
