Type: XLR connector, electronically balanced, discrete input circuit (XENYX Mic Preamp)
Source resistance:
-134 dB 135.7 dB A-weighted @ 0 Ohm
-131 dB 133.3 dB A-weighted @ 50 Ohm
-129 dB 130.5 dB A-weighted @ 150 Ohm
Frequency response:
<10 Hz - 150 kHz (-1 dB)
<10 Hz - 200 kHz (-3 dB)
Gain range: +10 dB to +60 dB
Max. input level: +12 dBu @ +10 dB GAIN
Impedance: 2.6 k Ohms balanced
Signal-to-noise ratio: 110 dB A-weighted (0 dBu In @ +22 dB GAIN)
Distortion (THD + N): 0.005% / 0.004% A-weighted
1/4" TRS jack, electronically balanced
20 k Ohms balanced, 10 k Ohms unbalanced
-10 dB to +40 dB
30 dBu
(Mic In - Main Out):
<10 Hz - 90 kHz: +0 dB / -1 dB
<10 Hz - 160 kHz: +0 dB / -3 dB
2x 1/4" TRS jack, balanced
20 k Ohms balanced, 10 k Ohms unbalanced
-20 dB to +20 dB
+22 dBu
RCA connector
10 k Ohms
+22 dBu
80 Hz / +/-15 dB
2.5 kHz / +/-15 dB
12 kHz / +/-15 dB
1/4" mono jack, unbalanced
120 Ohms
+22 dBu
1/4" TRS connector, balanced
20 k Ohms balanced, 10 k Ohms unbalanced
+22 dBu
XLR, electronically balanced
240 Ohms balanced, 120 Ohms balanced
+28 dBu
1/4" TS connector, unbalanced
120 Ohms
+22 dBu
1/4" TRS jack, unbalanced
+19 dBu / 150 Ohms (+25 dBm)
RCA connector
1 k Ohms
+22 dBu
Noise:
Main mix @ -Infinite, channel fader @ -Infinite: -105 dB / -108 dB A weighted
Main mix @ 0 dB, channel fader @ -Infinite: -95 dB / -97 dB A Weighted
Main mix @ 0 dB, channel fader @ 0 dB: -82.5 dB / -85 dB A weighted
100 - 240 V-, 50/60 Hz
40W
T 1.6 A H 250 V (100 - 230 V, 50/60 Hz)
Standard IEC receptacle
Type-B
16-bit
48 kHz
Black
12x Input / 4x Output
8x (4x Mono / 2x Stereo)
4
3.8 x 10.6 x 12.9" (97 x 270 x 328mm)
8.4 lbs (3.8kg)
192223289512, 736211582843, 192223075498, 192223227576

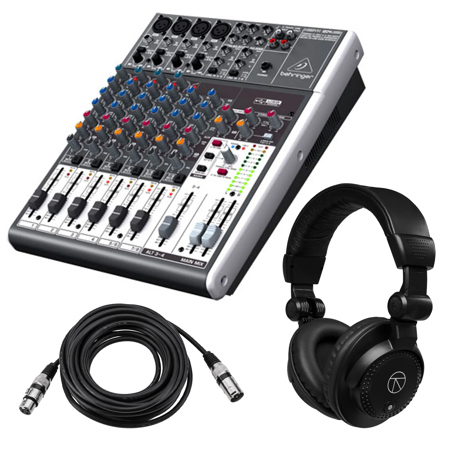

The compact XENYX 1204USB mixer allows you to effortlessly achieve premium-quality sound, thanks to its 4 onboard studio-grade XENYX Mic Preamps and ultra-musical "British" channel EQs. Add to this our easy-to-use "one-knob" compressors, which provide total dynamic control for the ultimate in punch and clarity, while respecting all the power and emotion you pack into every note - and the 1204USB becomes an incredibly versatile mixer for your live performances. But the XENYX 1204USB isn't just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with the built-in USB/audio interface, the 1204USB comes with all the recording and editing software needed to turn your computer system into a complete, high-performance home recording studio.
Sonically Superior Mic Preamps
The XENYX 1204USB gets its name from our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic preset represent a major step in the evolution of audio technology - and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the XENYX 1204USB provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren't looking.
One-Knob Compression
Ask professional sound engineers what their favorite piece of external processing gear is and the majority response will be virtually unanimous - dynamic compression. What is compression? We're glad you asked. Compression essentially limits the dynamic range of a signal, lowering the level of loud sounds and turning up softer sounds, to achieve sonic balance. But applying compression is a delicate art that many novice, and even intermediate, sound techs find challenging. Our "one-knob" compression is available on all mono channels and is easy to operate, even for entry-level users. With this one knob, you can easily dial in the perfect amount of compression for instruments and vocals, creating powerful mixes with punch and clarity. This is indeed a rare feature for products in this class - but standard on the XENYX 1204USB mixer.
Sublimely Musical British EQ
The British consoles of the 1960s and '70s changed the sound of rock and roll - without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
Recording Bliss
There was a time when the recording process called for lots and lots of expensive gear, which meant the average musician had to buy time at a recording studio - and that time was pricey indeed. But modern technology has put personal recording well within the reach of virtually anyone with access to a computer. How do you get all that music flying around your brain into your computer? That's where the XENYX 1204USB mixer comes in. Thanks to the included bidirectional stereo USB audio interface, you can connect directly to your PC or Mac computer via a single USB cable. Now any signal source you connect to the mixer can be recorded directly to your hard drive.
Amazing Value
No matter what your audio mixing needs, the XENYX 1204USB provides the performance and features that can take your talent to the next level, at a price sure to amaze you. Professional sound quality, our legendary XENYX mic preamps, British EQs, our easy-to-use "one-knob" compressors and built-in USB connectivity make the XENYX 1204USB ideal for both your live gigs and recording.
