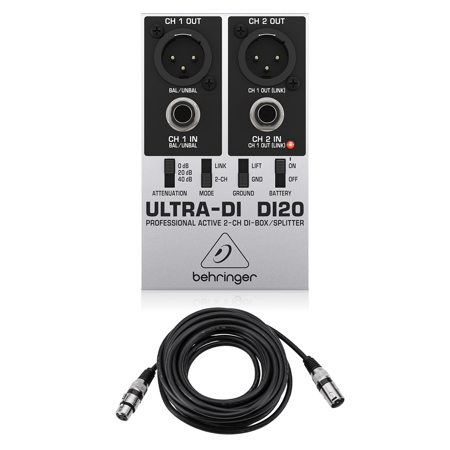

Behringer Ultra-DI DI20 Professional Active 2-Channel DI-Box/Splitter, Bundle with 25' XLR Microphone Cable

SKU: BEDI20K MFR: 000-17600-00010 K
$41.85
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer Ultra-DI DI20 Professional Active 2-Channel DI-Box/Splitter
    Behringer Ultra-DI DI20 Professional Active 2-Channel DI-Box/Splitter
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'
  • +
  • Show more

Key Features

  • Achieve pristine sound quality with the active DI-box, ensuring your audio signals are crystal clear.
  • Experience ultra-low noise performance, perfect for professional studio recording and live sound applications.
  • Enjoy input flexibility with 1/4" mono jack inputs, accommodating various instruments and audio sources.
  • Eliminate unwanted hum and buzz using the ground lift switch, a must-have for clean audio.
  • Benefit from pad options, allowing you to handle high-output signals without distortion or clipping.
  • Built for durability, this Behringer DI-box is road-ready and reliable for all your gigs and sessions.
See More Product Details
Calculate Shipping

See Options

2-Day Shipping - FREE on Orders over 49.99
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer DI20 Specifications

  • Frequency Response

    10Hz to 70kHz (-3dB)

  • Noise

    100dBu

  • Distortion

    < 0.014% (1kHz, 0dBu in)

  • Input Resistance

    > 250 kOhms

  • Connection Impedance

    > 600 Ohms

  • Input

    1/4" mono jack

  • Output

    XLR balanced

  • Max. Input Level

    +12/+32/+52dBu

  • Phantom power

    18V DC to 48V DC

  • Battery power

    9V 6LR91

  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    9-volt

  • Battery Quantity

    1

  • Dimensions

    6 x 5 x 2.37" (152.4 x 127 x 60.19mm) (Approx.)

  • Weight

    8.46oz (240g) (Approx.)

  • UPC Codes

    192223287204, 689076113915, 192223075498

About Behringer DI20

The ULTRA-DI DI20 is a one-of-a-kind DI (Direct Injection) box that can convert up to two separate, unbalanced 1/4" TRS lines into two balanced XLR outputs - or function as a signal splitter. Electric guitarists, keyboardists and bassists will love the flexibility the incredible DI20 provides both in the studio and on the stage.

Mono, Stereo or Double the Amps
By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal - or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier's speaker outputs, even amps rated as high as 3,000 Watts. You can power the DI20 with either a 9V battery or your mixer's phantom power supply (+18 to +48 VDC). The whole package is wrapped in an ultra compact, road-suitable and rugged metal housing.

Behringer DI20 Features

  • Professional and multi-purpose direct injection box for stage and studio applications
  • Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
  • Converts 2 independent unbalanced 1/4" TRS line inputs into 2 balanced XLR outputs
  • Additional Split mode (channel 1 assigns signal to both XLR outputs)
  • Ultra-flat frequency response due to servo-balanced operation
  • Internal battery automatically shuts off when phantom power is applied
  • Allows direct connection to speaker outputs with up to 3,000 Watts
  • Ground Lift switch eliminates typical ground loop problems
  • Input 2 usable as channel 1 Link output (additional to XLR output)
  • 1/4" TRS and gold-plated XLR connectors
  • Ultra-rugged, road-suitable metal case

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine sound quality with the active DI-box, ensuring your audio signals are crystal clear.
  • Experience ultra-low noise performance, perfect for professional studio recording and live sound applications.
  • Enjoy input flexibility with 1/4" mono jack inputs, accommodating various instruments and audio sources.
  • Eliminate unwanted hum and buzz using the ground lift switch, a must-have for clean audio.
  • Benefit from pad options, allowing you to handle high-output signals without distortion or clipping.
  • Built for durability, this Behringer DI-box is road-ready and reliable for all your gigs and sessions.

What's in the box:

  • Behringer Ultra-DI DI20 Professional Active 2-Channel DI-Box/Splitter
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • H&A 25' Value Series XLR Male to Female Professional Microphone Cable
