A/D-D/A conversion: 24-bit at 44.1 / 48.0 kHz
(Cirrus Logic A/D CS5368, D/A CS4385): 114 dB dynamic range
Networked I/O latency (stage-box-in, console processing, stage-box- out): 1.1 ms
Programmable Mic Preamps: 16
8
1x 1/4" TRS (mono)
2x SuperMAC
1 Ultranet (no power supplied)
1x inputs / outputs
(2x 8 Channel): 2
1
MIDAS
20 dB gain, 0 dBu out: < 0.006% A-weighted
XLR unbalanced / balanced: 5 kOhms / 10 kOhms
+23 dBu
Switchable Per Input: 48 V
XLR (input shorted): -128 dBu
>70 dB at 20 dB gain (typical)
XLR: >80 dB at 40 dB gain
Frequency range, at 48 kHz sample rate, 0 dB to -1 dB: 10 Hz to 22 kHz
Dynamic range, analog in to analog out (typical): 106 dB
A/D dynamic range, preamp and converter (typical): 109 dB
D/A dynamic range, converter and output: 108 dB
Cross talk rejection at 1 kHz, adjacent channels: 100 dB
Output level, XLR, nominal/maximum: +4 dBu / +21 dBu
Output impedance, XLR, unbalanced / balanced: 75 Ohms / 75 Ohms
Phones output impedance / level: 40 Ohms / +25 dBm (mono)
Residual noise level, XLR and TRS: -87 dBu A-weighted
4-digit, 7-segment, LED
Front status LEDs: AES50-A, red/green
AES50-B, red/green
HA Locked, red
SN Master, green
Splitter orange
Out +16 orange
Out +8 orange
Sig, -30 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, Clip
Splitter mode orange
Switch-mode auto range: 100 to 240 V (50 / 60 Hz)
45 W
19 x 8.9 x 3.5" (4.71 x 22.60 x 8.89cm)
10.40lbs (4.71kg)
192223253452, 794504549713, 192223075498, 192223227576
A worthy addition
By ROBERT R.
The S16 stage box is a worthy addition especially for live/remote work. Having an additional 16 high quality mic pre-amps on stage that can be fed to your Behringer digital mixer through a single ethernet cable is fantastic. Great sounding, easy to configure, and expands your mixer while keeping the connection simple is well worth the minor upgrade cost to add this to your rig. Go for it! You'll be glad you did!

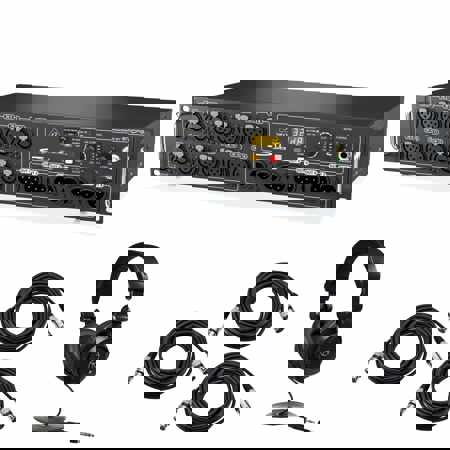

Under the umbrella of advanced audio technology, the Behringer Digital Snake S16 I/O Box stands out with its 16 remote, controllable MIDAS preamps, offering precise control over audio signals. This reliable and durable device is designed to streamline the connection between your FOH (Front of House) console and the talent monitor, eliminating the need for a dedicated router.
The S16 I/O Box boasts 16 fully programmable, high-end mic preamps, along with 8 analog, balanced XLR returns at the stage end. These features are housed in a robust and user-friendly design, making it an ideal choice for live performances and studio recording sessions.
Incorporating AES50 networking with KLARK TEKNIK SuperMAC technology, this innovative I/O box ensures high-quality audio transmission and control. The 16 MIDAS-designed XLR inputs are fully programmable and can be remotely controlled from the x32 digital mixer, offering unparalleled convenience and flexibility.
The 8 balanced XLR outputs provide ample sends to the stage for mains and monitoring, while the front panel allows for level and phantom power control for all inputs and outputs. An 8-LED meter and 7-segment display provide clear, real-time feedback, enhancing the user experience.
The dual AES50 jacks allow transmission of all audio and MIDI data to the x32 FOH with a single Ethernet cable. This feature also enables up to three S16 boxes to be cascaded for maximum channel count, allowing for the transfer of 48 bi-directional audio channels at 24-bit / 48 kHz on just one CAT5 line between the FOH console and the stage.
An additional Ultranet output provides 16 channels for use with the P16 personal monitoring system through the Ethernet cable, allowing each musician to create their own custom mix from the stage. A pair of ADAT ports can carry additional sends to the stage beyond the 8 analog outputs or split the 16 inputs. Lastly, a USB jack allows for future firmware updates, ensuring your S16 I/O Box remains at the forefront of audio technology.
