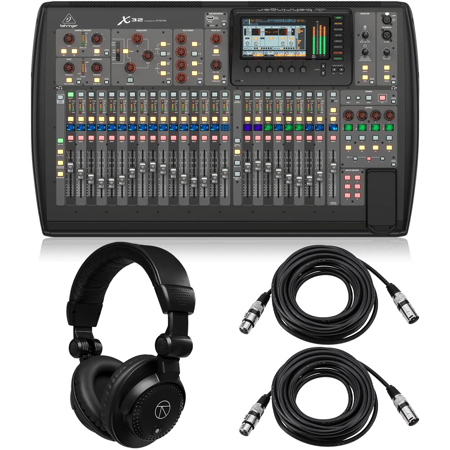

Behringer X32 32-Channel 16-Bus Total Recall Digital Mixing Console V4.0, Bundle with Headphones and 2x 25' XLR Microphone Cable

SKU: BEX32F MFR: 0603-ACE86-US1 F
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer X32 32-Channel 16-Bus Total Recall Digital Mixing Console V4.0
    Behringer X32 32-Channel 16-Bus Total Recall Digital Mixing Console V4.0
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Experience pristine audio with 32 channels, perfect for live sound and studio recording.
  • Achieve professional-grade recordings with exceptional 24-bit AD/DA conversion quality.
  • Effortlessly mix on the go using intuitive iPad/Android apps for remote control.
  • Connect all your gear with versatile analog and digital I/O options for any setup.
  • Enhance your sound with built-in DSP effects and a 6-band EQ for precise audio shaping.
  • Streamline your workflow with 25 motorized faders, ensuring smooth and accurate mixing.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2023-03-02T15:18:36

Rated 5 out of 5

Great upgrade to church sound system

I don't know where to start when it comes to describing how happy I am with our Behringer X32 we recently purchased from Adorama. Our church upgraded from an analog Behringer because we were running short on channels needed and some of the channels were starting to go bad. Not only have we quadrupled the number of inputs but the flexibility we've got with outbus buses, EQ settings and the X32s other features are invaluable. Plus pairing it with another PC or iPad, it's like getting two mixers for the price of one. Our sound tech can control the main feed in our sanctuary with the physical X32 while I can control our monitor speakers at the front of the stage with the iPad. I'd defintely recommend the X32 to anyone looking to get out of the analog world. Adorama's kit with mixer, XLR cables and carry case couldn't be beat. We paid $500 less than we would have for the mixer along anywhere else.

Mitch B.

2023-02-16T05:09:09

Rated 5 out of 5

X32 still good it 2023

X32 might be an old platform but it was built and done right from the start. The firmware updates have provided additional features and functionally to ensure it is able to keep up with the competition. The service from Adorama was great and shipping was quick. Will return here for my purchases for sure.

Ranan E.

2022-09-08T05:20:05

Rated 5 out of 5

Behringer X32 - great value

Great value: lots of features and good audio quality for the price. Works great when using the iPad to mix, too.

ACCOUNTS P.

Behringer X32 Specifications

Mixer
  • Max I/O Capacity

    40x Input / 25x Output

  • Number of Analog Input Channels

    32

  • Number of Mic Preamps

    32

  • Number of Analog Output Channels

    16

  • Mix Routing

    25x Stereo Bus

  • Groups

    8x DCA Group
    6x Mute Group

  • Presets

    No

  • Display

    7" LCD (Daylight-Viewable)

  • Display Resolution/Color

    Main Display: 800 x 480 / RGB Color
    Channel Display: 128 x 64 / RGB Color

  • Faders & Level Adjustment

    25x 3.9" / 100 mm Motorized Fader(Touch Sensitive)

  • Meters

    2x 24-Segment LED

  • Meter Range

    -57 dB to +16 dB Before Clip

Signal Processing

Jump to...
  • Gain/Trim Range

    Mic: 0 dB to +72 dB

  • Input Polarity

    Normal/Reverse

  • Dynamic Processing

    Input Channels: Compressor, Limiter, Soft Limiter, Gate

  • EQ

    6-Band EQ

  • Graphic EQ

    31-Band 1/3 Octave

  • Solo/Mute

    Solo, Mute per Input Channel
    Mute per Master

  • Channel Output/Source Monitoring

    AFL

  • Real Time Analyzer

    1x 100-Band

  • Automatic Mic Mixing

    No

Digital Audio

Jump to...
  • Sample Rates

    44.1 / 48 kHz

  • Bit Depth

    AD/DA Conversion: 24-Bit

  • DSP

    40-Bit Floating Point

  • Converter Dynamic Range

    114 dBA at 48 kHz

  • Latency

    0.8 ms (Analog Input to Analog Output)
    1.1 ms (Stagebox Input to Stagebox Output)

Performance

Jump to...
  • Frequency Response

    10 Hz to 22 kHz +0/-1 dB (at 48 kHz)

  • Max Input Level

    Mic Input: +23 dBu
    Line Input: +16 dBu

  • Output Level

    1/4" Aux/Line Output: +16 dBu
    XLR Output: +21 dBu
    1/4" TRS Headphone Output: +25 dBm at Max Gain (Unbalanced)

  • Analog Dynamic Range

    Input to Output: 106 dB at Unity Gain

  • I/O Impedance

    XLR Mic Input:
    5 Kilohms (Unbalanced)
    10 Kilohms (Balanced)

    1/4" TRS Line Input:
    20 Kilohms (Unbalanced)
    40 Kilohms (Balanced)

    XLR Output: 75 Ohms (Balanced/Unbalanced)

    Line Output:
    150 Ohms (Unbalanced)
    300 Ohms (Balanced)

  • Crosstalk

    Adjacent Channels: 100 dB at 1 kHz

  • CMRR

    XLR Mic Input:
    > 70 dB at +20 dB Gain
    > 80 dB at +40 dB Gain

  • EIN

    XLR Mic Input: -128 dBu

  • Noise Floor

    -87 dB A-Weighted

  • THD+N

    Mic Input to Analog Output: 0.006% at +20 dB Gain (0 dBu)

Connectivity

Jump to...
  • Analog Inputs

    32x XLR 3-Pin Balanced Mic/Line Input
    1x XLR 3-Pin Balanced Mic/Talkback Input
    1x Stereo RCA Coaxial Unbalanced Aux Input
    6x 1/4" TRS Aux Return

  • Analog Outputs

    16x XLR 3-Pin Main/Bus Output
    1x Stereo RCA Aux Output (1 Stereo Pair)
    2x XLR 3-Pin Stereo Control Room/Monitor Output (1 Stereo Pair)
    2x 1/4" TRS Stereo Control Room/Monitor Output
    6x 1/4" TRS Aux Output
    2x 1/4" TRS Headphone Output

  • Phantom Power

    +48 V (Selectable on Individual Inputs)

  • Digital I/O

    1x RJ45 Ethernet (Control, 1 Gb/s)
    1x RJ45 Ultranet (I/O)
    2x RJ45 AES50 (I/O)
    1x XLR AES3 Output

  • MIDI I/O

    1x MIDI 5-Pin In
    1x MIDI 5-Pin Out

  • USB I/O

    1x USB-B 2.0 (Control)
    1x USB-B 2.0 (Audio Playback, Multitrack Record)

  • USB I/O Capacity

    32x Input / 32x Output

  • Expansion Ports

    No

  • Wireless

    No

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: X32-Mix, X32-Q
    Functionality: Adjust Settings, Remote Control, Setup

  • External Display I/O

    No

Recording

Jump to...
  • Max Multitrack Recording

    32 Tracks

  • Media Support

    USB Drive

Compatibility

Jump to...
  • OS Compatibility

    macOS
    Windows

  • Mobile Device Compatibility

    iPad
    Android Smartphone
    Android Tablet

  • Required Hardware

    Available USB 2.0 Port

  • Input Power

    100 to 240 VAC, 50 / 60 Hz

  • AC Power I/O

    1x IEC Input

  • Power Consumption

    120 W

Physical

Jump to...
  • Rack Mountable

    No

  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Dimensions

    35.4 x 20.8 x 7.9" (89.9 x 52.8 x 20.1cm)

  • Weight

    45.4 lbs (20.6kg)

  • UPC Codes

    192223295858 | 794504549614 | 192223227576 | 192223075498

About Behringer X32

FEATURED REVIEWS

Great upgrade to church sound system

By Mitch B.

I don't know where to start when it comes to describing how happy I am with our Behringer X32 we recently purchased from Adorama. Our church upgraded from an analog Behringer because we were running short on channels needed and some of the channels were starting to go bad. Not only have we quadrupled the number of inputs but the flexibility we've got with outbus buses, EQ settings and the X32s other features are invaluable. Plus pairing it with another PC or iPad, it's like getting two mixe...

View full Review

X32 still good it 2023

By Ranan E.

X32 might be an old platform but it was built and done right from the start. The firmware updates have provided additional features and functionally to ensure it is able to keep up with the competition. The service from Adorama was great and shipping was quick. Will return here for my purchases for sure.

When it comes to professional audio mixing and recording, the Behringer X32 32-Channel 16-Bus Total Recall Digital Mixing Console V4.0 stands out with its advanced features and sophisticated design. This high-quality, durable console is perfect for large-scale productions and live performances, offering a remarkable 32 channels equipped with fully programmable high-end mic preamps.

The X32's 16 mix busses are configurable as subgroups, each featuring inserts, 6-band parametric EQs, and integrated dynamics processing for superior customization. Additionally, six independent matrix mix busses mirror these features, providing a comprehensive audio mixing experience.

The latest X32 Firmware Version 4.0 enhances the console's functionality, allowing for individual routing of inputs or outputs and remote configuration for personal monitoring systems. The user interface has been completely revamped, boasting over a thousand enhancements for an improved user experience.

This console comes with 16 analog XLR outputs, six line-level I/O connectors, and two 1/4" phone connectors. The talkback section facilitates communication with the integrated mic or an external mic. For expanded connectivity, the mixer features a pair of AES50 ports with KLARK TEKNIK SuperMAC networking capability, ready for use with 48-channel digital snakes for ultra-low jitter and latency.

The X32 also includes an integrated expansion port for a FireWire/USB/ADAT card, offering additional networking interfaces and a 16-channel recorder. The built-in Virtual FX provides eight true-stereo FX slots, delivering high-end simulations of popular outboard gear.

The console's high-power 32-bit floating-point DSP system ensures "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs for top-quality performance. The mixer also features six mute groups and eight DCA groups on eight dedicated faders for easy access.

The X32's user-friendly interface includes a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit boasts 25 motorized 100 mm faders for extensive user-definable control.

The system includes a USB flash connector for file storage, uncompressed recordings, show presets, and system updates. It also supports the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all physical inputs and outputs.

The X32 also offers networked remote control or show setups with the included remote editor software via USB and Ethernet ports. The Behringer Live Sessions - New Companion App for X32, a powerful tool for managing X32 audio sessions, is available for free download for PC, Mac, and Linux.

All these features are housed in a compact and durable enclosure, ensuring the X32 32-Channel 16-Bus Total Recall Digital Mixing Console V4.0 is a reliable choice for professional use.

Behringer X32 Features

  • X32 Firmware Version 4.0 features:
    - No more routing in blocks of eight - it's now possible to route single inputs or outputs individually
    - Remote configuration for personal monitoring systems
    - Every page of the user interface completely overhauled with 1001 big and little enhancements
  • The compact and durable design is ideal for professional live and recording applications
  • There are 32 channels that feature full programmable high-end mic preamps, as well as 16 mix busses that are configurable as subgroups
  • The main LCR channels and all 16 mix busses have inserts, 6-band parametric EQs and integrated dynamics processing for excellent customization. There are also 6 independent matrix mix busses that offer the same insert, EQ and dynamics features as the main mix busses
  • The mixer has 16 analog XLR outputs, as well as 6 line-level I/O connectors and 2 1/4" phone connectors
  • The talkback section allows you to communicate with the integrated mic or an external mic
  • A pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability to be ready for use with 48-channel digital snakes for ultra-low jitter and latency
  • An integrated expansion port lets you install a FireWire/USB/ADAT card (sold separately) with a 16-channel recorder, or other networking interfaces
  • The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular outboard gear such as the KLARK TEKNIK DN780, EMT250 and more
  • The integrated high-power 32-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload and near-zero latency between inputs and outputs for top-quality performance
  • There are 6 mute groups and 8 DCA groups on 8 dedicated faders for easy access
  • The intuitive interface offers tremendous ease-of-use with a dedicated channel strip section that has direct-access controls
  • The high-resolution 7" color TFT display has associated controls and individual RGB backlit graphic LCDs on every channel
  • There are 25 motorized 100mm faders for extensive user-definable control
  • A USB flash connector provides file storage for uncompressed recordings, show presets and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs and MIDI
  • Adjustable line delays are available on all of the physical inputs and outputs
  • The included remote editor software lets you coordinate networked remote control or show setups via USB or Ethernet. You can even conveniently handle the scene management duties of complex productions

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine audio with 32 channels, perfect for live sound and studio recording.
  • Achieve professional-grade recordings with exceptional 24-bit AD/DA conversion quality.
  • Effortlessly mix on the go using intuitive iPad/Android apps for remote control.
  • Connect all your gear with versatile analog and digital I/O options for any setup.
  • Enhance your sound with built-in DSP effects and a 6-band EQ for precise audio shaping.
  • Streamline your workflow with 25 motorized faders, ensuring smooth and accurate mixing.

What's in the box:

  • Behringer X32 32-Channel 16-Bus Total Recall Digital Mixing Console
  • Power Cord
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • 2x H&A 25' Value Series XLR M to F Professional Microphone Cable
