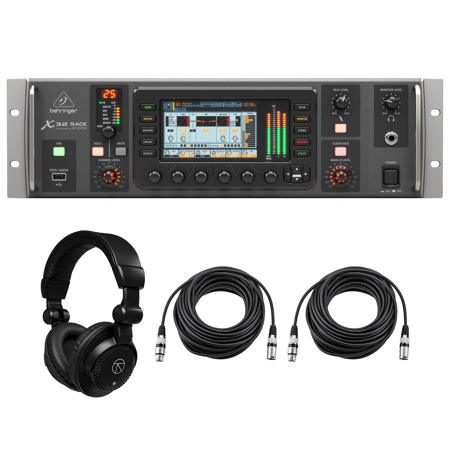

Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer, Bundle with TAPH100 Headphones and 2x 50' XLR Microphone Cable

SKU: BEX32RACKD MFR: 0604-AAA86-US1 D
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer X32 Rack 40-Input 25-Bus Digital Mixer
    Behringer X32 Rack 40-Input 25-Bus Digital Mixer
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 50'
    H&A Value Series XLR M to F Professional Microphone Cable - 50'

    Qty: 2

  • +
  • Show more

Key Features

  • Experience pristine sound quality with 40-input channels for all your recording needs.
  • Seamlessly integrate with your favorite DAW using the built-in USB connectivity.
  • Enjoy studio-grade audio with 16 Midas-designed mic preamps for superior sound.
  • Take your sound anywhere with this portable rack mixer, perfect for live sound and studio.
  • Enhance your mixes with 8 true-stereo effects engines, adding depth and polish.
  • Control your sound remotely via Ethernet, offering flexible operation for any setup.
See More Product Details
Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Behringer X-32 RACK Specifications

  • Number of Channels

    32 input channels
    8 aux in channels
    8 FX return channels
    16 buses, 6 matrices
    Main LRC

  • Effects Engine

    Internal:
    8 true-stereo
    16 mono

  • Scene File Memory

    100 total recall scenes (including preamp and fader)

  • Signal Processing

    40-bit floating point

  • Conversion

    Cirrus Logic A/D CS5368, D/A CS4385
    24-bit at 44.1 / 48 kHz
    114 dB dynamic range

  • Latency Timings

    Local I/O: 0.8 mS (local in > console processing > local out)
    Networked I/O: 1.1 mS (stage box in > console processing > stage box out)

  • Total I/O Channels

    150/158

  • Mic/Line Inputs

    16x XLR balanced

  • Line Outputs

    8x XLR balanced

  • AUX Inputs

    6x 1/4" TRS
    2x RCA line-level (1x L/R)

  • AUX Outputs

    6x 1/4" TRS
    2x RCA line-level (1x L/R)

  • Talkback Mic Input

    1x XLR (no internal mic)

  • Monitor Outputs

    2x 1/4" TRS balanced

  • Headphone Output

    1x 1/4" TRS stereo

  • AES50 Ports

    2x SuperMAC

  • Expansion Port

    1x 32-channel I/O card, various standards available

  • P-16 Connector

    1x Ultranet (no power supplied)

  • MIDI In/Out

    1x/1x

  • Ethernet Port

    1x RJ45 (for remote control)

  • USB Port

    1x USB 2.0 type A (for audio and data import/export)

  • Designer

    MIDAS

  • THD + Noise

    < 0.006% A-weighted (20 dB gain, 0 dBu out)

  • Input Impedances

    5kOhms unbalanced
    10kOhms balanced

  • Maximum Input Level

    +23 dBu without clipping

  • Phantom Power

    +48V, switchable per channel

  • Equivalent Input Noise

    -128 dBu (input shorted)

  • CMRR

    > 70 dB at 20 dB gain (typical) 80 dB at 40 dB gain

  • LCD Screen

    5" (12.7cm), 800 x 480p, 262k color TFT (Main Screen)

  • Power Supply

    100 to 240V (50/60 Hz) switch-mode auto range

  • Power Consumption

    120W

  • Dimensions (W x D x H)

    19 x 11.3 x 5.2" (482.6 x 287.02 x 132.08mm)

  • Weight

    14.4 lbs (6.53kg)

  • UPC Codes

    192223288072, 713757162616, 192223075504, 192223227576

Related Articles & Videos

Home Recording Studio Equipment Setup for Beginners

Home Recording Studio Equipment Setup for Beginners

Looking to create a home studio but don’t know where to start? We cover the essential equipment for setting up your own home recording studio.
Read more

29 Accessories for Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer, Bundle with TAPH100 Headphones and 2x 50' XLR Microphone Cable

  • All Accessories (29)
  • Mixing & Sound Processing (2)
  • Cables & Adapters (22)
  • Headphones (5)

About Behringer X-32 RACK

Thanks to its legendary onboard X32 mix engine, the X32 RACK can be your top-notch studio recording interface today, control a complex theater production tomorrow, or sit securely in your side-rack while you mix your band's club gig from your iPad. A revolution in its own right, the incredible X32 RACK combines the finest analog I/O and powerful digital connectivity with ample processing for 40 channels, 25 buses and up to 152 signal sources.

You can easily control every parameter of the mix directly on the X32 RACK using the 800 x 480 graphic UI, but the awesome flexibility of networked remote control literally opens up an amazing world of possibilities. Use our X32-EDIT PC/Mac/Linux application, X32-MIX for iPad, X32-Q for iPhone/iPod touch and X32-Q for Android to control the mix from anywhere in the room. You can even run multiple instances of these powerful apps at the same time, giving your performers the ability to mix their own personal monitors on-the-fly!

With its 16 Midas-design mic preamps and dual AES50 ports, the X32 RACK can support up to six S16 digital stage boxes for massive I/O connectivity. Ultra-flexible routing options and 8 powerful stereo FX engines make the X32 RACK the ideal choice for handling audio now - and as your needs grow.

Game 2.0 Reloaded
The Behringer X32 has changed the game by completely rethinking what is possible from a digital mixer - and hundreds of thousands of users are enjoying the results. A fluid workflow coupled with a fully interactive user interface ensures immediate familiarity and instills confidence. Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price - changing the game entirely.

Three companies shared a common vision - to engineer and build the very best-sounding, technically-advanced audio products for discerning professionals. The X32 Digital Mixer family is the result of the engineering, manufacturing and application expertise of legendary console manufacturer Midas, the iconic signal processing genius of Klark Teknik and Behringer's unique ability to deliver a superior value proposition.

The synergy between these three great companies runs deep in the X32. From the pristine, Midas-designed mic preamps to Klark Teknik's rock-solid, ultra-low latency SuperMAC networking technology and Behringer's completely re-engineered processing algorithms, X32 raises the bar on what a digital mixer can be. A singular passion for delivering advanced technology, unrivalled usability and true road-worthiness has enabled us to engineer a digital console that is the ideal vehicle for your creative expression. But we're just getting started!

Enhanced Workflow & Multi-Channel Networking
With the introduction of our new X32 version 2.0 firmware, we have not only dramatically enhanced the workflow, but also added all-new capabilities including "Acoustic Integration" for total connectivity and control of your speaker and In-Ear Monitor (IEM) systems. Then we completely re-imagined the more than 50 onboard FX "Plug-Ins" and added classic processor examples based on "True Physical Modelling". We've also made the X32 even more flexible, with swappable expansion cards for connecting to other multi-channel audio networking via USB, ADAT, MADI and Dante protocols, in addition to the onboard ULTRANET and AES50 connectivity. Above all, the X32 puts the power of digital in your hands - without compromise. You Win.

Intuitive. Immediate. Natural.
X32 RACK is your mind-to-sound interface... the intersection of creativity and production. Whether you're accustomed to digital mixers or not, the X32's intuitive user interface offers a fluid mixing experience that instantly feels like home.

And then there is the X32's latest version 2.0 firmware. We've added new scene management features and EQ functions, including a 100-band Real Time Analyzer, flexible library import/export capability and faster FX editing.

We also included 16 new FX "Plug-Ins" which are based on True Physical Modeling of famous classic audio hardware. This process means that we essentially "rebuilt" classic analog gear in the digital domain. And then we added the most amazing digital networking that allows you to connect to the new Turbosound iQ speakers via simple CAT5 connection. We call it "Acoustic Integration".

This high-performance iQ Series also includes authentic acoustic modeling of some of the world's most famous speakers - all remote controllable from your X32 RACK. This is the total solution you have been waiting for.

Front Side Control
A set of front panel controls are provided on the X32 RACK, enabling the engineer to make adjustments to the live mix without any additional hardware. The rear panel expansion port allows inserting optional I/O cards to interface with existing networked audio infrastructure.

At the Heart of it All
The X32 RACK forms the nucleus of an ultra-flexible studio control room setup when paired with S16 I/O and P16 Personal Monitoring Systems in each tracking room. The built-in 32 x 32 USB recording interface, 8 stereo effects engines, zero-latency monitoring (independent from DAW) and 100% total recall deliver the tools to handle any project you dare to tackle.

5" Main Display
X32 RACK's 5" day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them.

Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Flanked by high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters. Intelligent design puts control of vital functions such as Effects, Metering, Routing and much more 1 or 2 button presses away.

"Acoustic Integration" - the Live Sound Revolution
The X32 RACK's ULTRANET bus allows streaming up to 16-channels of pristine digital audio to an array of Turbosound iQ speakers - all on a single CAT5 cable, along with control data to set sound presets remotely.

Furthermore, the iQ Series features "True Physical Modeling" of some of the most popular speakers which can be easily remote controlled via the X32 RACK, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk. "Acoustic Integration" is the next live sound revolution.

100-Band RTA for all Channel/ Bus EQ's
The X32 RACK now includes a high-resolution 100-band Real Time Analyzer (RTA), with full Bar and Spectrograph views. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time - capturing a sonogram window of a full 10 seconds.

Switch between the Large RTA view, displaying any available signal in full screen resolution, or the Combined view with the RTA view shown above each of the channel and bus EQ curves.

See the results of your filtering choices in the audio spectrum directly. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the FX rack. Monitoring and controlling frequencies has never been easier!

16 Breathtaking FX "Plug-Ins" Based on True Physical Modeling
We've added 16 new FX "Plug-Ins" to the X32 RACK, giving you access to a total of 50+ effects that would otherwise cost tens of thousands of dollars in hardware.

This new generation of high-end FX "Plug-Ins" is based on True Physical Modeling of classic audio hardware. We essentially "rebuilt" classic analog gear in the digital domain and included models of legendary processors such as Urei's 1176, Teletronix LA-2A and Fairchild 670 compressors as well as the legendary Pultec EQP- 1a and EQ5 equalizers etc. We also added a cutting-edge 5-band multiband compressor.

Last but not least, the X32 RACK can now run 4 studio-quality stereo reverbs together with 8 channels of 31-band graphic EQ. This allows you to replace your old outboard gear with a fully recallable onboard solution.

Gain Splitting and Remote Control for FOH and Monitoring
A new Gain Split mode separates channel gain (trim) from the head amp gain, allowing both the FOH and/or the monitor engineer to adjust local trim digitally - and independently of the preamp gain. Additionally, the new HA Gain Remote option allows console gains to be remotely controlled by an external console, such as when using the X32 RACK as a stage box.

More Routing and Processing Flexibility
The X32 RACK's routing becomes even more flexible with this recent firmware upgrade. Output signals and XLR outputs are now treated separately, allowing signals from AES50 sources or expansion cards to be routed directly to the X32 RACK's analog outputs.

For example, now you can use the outputs from an X32 RACK for directly routing back PA or monitoring signals from a main or FOH console. New output tap points can be set as pre- or post-mute for greater usability with your P16 personal monitoring mixers. This is very useful in situations where you don't want mute groups to interrupt your signal flow.

Mighty New Tools for Scene and Show Management
Introducing the Cue List, an innovative way to automate the loading of scenes and new "Snippets" at different points during a show. Each of the 500 Cue entries can load any of the 100 Scenes or Snippets separately or at the same time. This gives you an amazing total of 500 Cues x 100 Scenes x 100 Snippets!

Behringer X-32 RACK Features

  • 40-input channel, 25-bus, 3U rack-mountable digital mixer for live and installed sound application
  • 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 8 XLR outputs plus 6 additional line in/outputs, a phones connector and a talkback section with XLR mic input
  • 32 x 32 channel USB 2.0 audio interface
  • iPad and iPhone apps for professional remote operation available free of charge-no host PC required
  • High-resolution 5" day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc
  • 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready via dual AES50 ports, featuring Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • ULTRANET connectivity for Behringer's P16 Personal Monitoring System
  • Networked remote control via Ethernet for show setups with on-screen software editor
  • Built-in expansion port for audio interface cards or digital networking bridges
  • MIDI In/Out for remote scene recall or controlling other MIDI equipment
  • Future firmware updates, incl. new FX "Plug Ins", downloadable from behringer.com free of charge

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine sound quality with 40-input channels for all your recording needs.
  • Seamlessly integrate with your favorite DAW using the built-in USB connectivity.
  • Enjoy studio-grade audio with 16 Midas-designed mic preamps for superior sound.
  • Take your sound anywhere with this portable rack mixer, perfect for live sound and studio.
  • Enhance your mixes with 8 true-stereo effects engines, adding depth and polish.
  • Control your sound remotely via Ethernet, offering flexible operation for any setup.

What's in the box:

  • Behringer X32 Rack 40-Input 25-Bus Digital Rack Mixer
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • 2x H&A 50' Value Series XLR M to F Professional Microphone Cable
